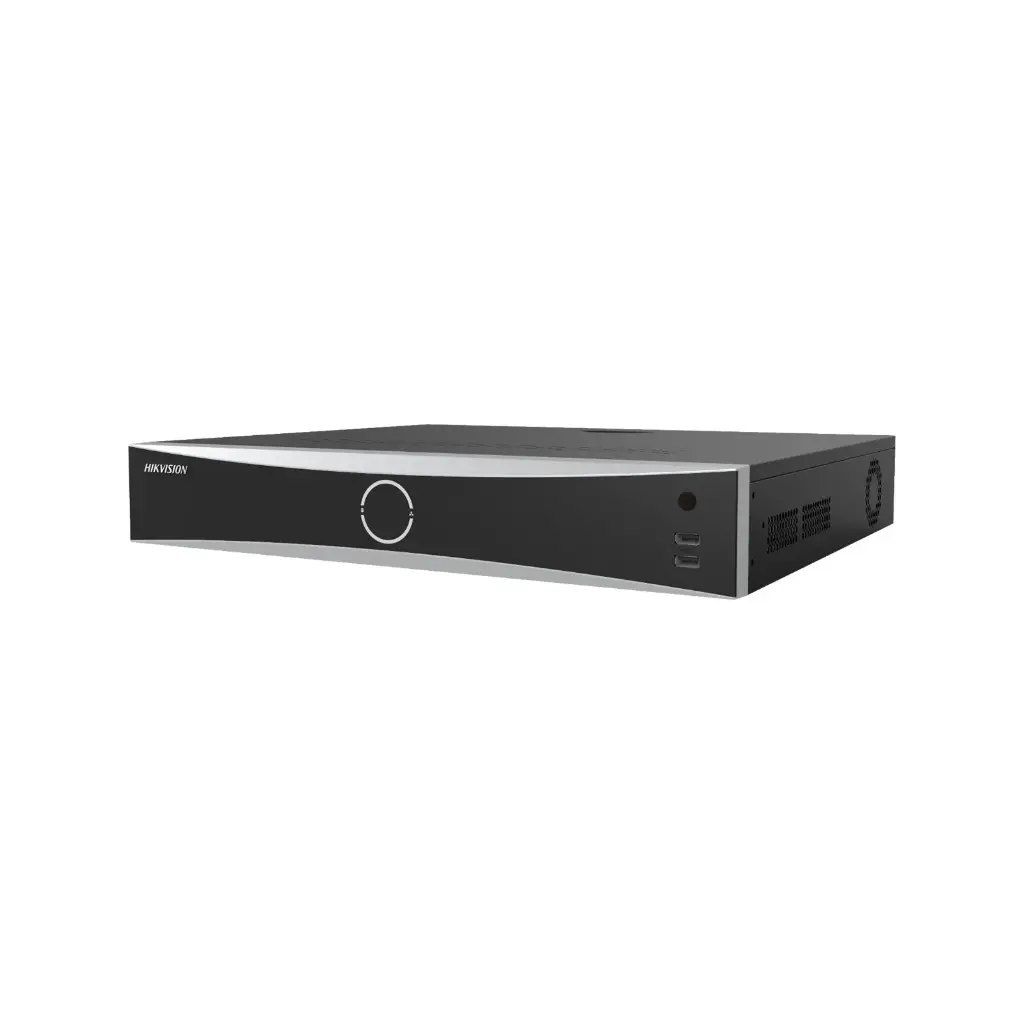

Hikvision DS-7616NXI-K2 16‑ch AcuSense 4K NVR 16‑PoE

The Hikvision DS‑7616NXI‑K2 is a compact 1U AcuSense NVR delivering enterprise‑grade features in a small footprint. It combines 16 built‑in PoE ports with a 200 W power budget, 160 Mbps incoming throughput, and support for up to 12MP recording. AcuSense AI performs face and perimeter detection to reduce false alarms, while 4K HDMI output and dual SATA bays (up to 20 TB) provide flexible local monitoring and storage. Optimized H.265+ compression, robust alarm I/O, and multi‑channel playback make this NVR ideal for retail, SMB, and campus deployments that need intelligent, reliable surveillance.

Technical Details:

Model / SKU: DS‑7616NXI‑K2
Channels: 16 IP camera inputs
PoE: 16 × PoE ports; total PoE budget 200 W
Incoming bandwidth: 160 Mbps
Max recording: Up to 12 MP
Compression: H.265+, H.265, H.264
Video outputs: 1 × 4K HDMI (local display)
Storage: 2 × SATA bays, up to 20 TB total (manufacturer guidance recommended)
AI features: AcuSense face detection and perimeter protection (channel limits per firmware)
Alarm I/O: 4 inputs / 1 output
Dimensions: 385 × 315 × 52 mm
Form factor: 1U rack/desktop
Typical operating ranges: commercial temperature/humidity (refer to datasheet for exact specs)
