Hikvision 8-CH 2MP DVR CCTV Kit 100m Cat6 100ft Night Vision
The Hikvision HIK-2802-100M CCTV Kit is a complete surveillance solution designed for professional grade security installations. It includes 8 × 2MP fixed mini bullet cameras with 1080p resolution, 20m IR night vision, and IP67 weatherproof rating, ideal for reliable outdoor monitoring.
The 8-channel DVR supports H.265 Pro+ compression, reducing storage needs while maintaining high quality footage. It also supports up to 5 IP camera inputs and features deep learning-based motion detection 2.0 for accurate human and vehicle classification. The kit includes 100m Cat6 cable, baluns, DC connectors, and a Securnix 8CH power supply, enabling streamlined analog CCTV installation with power and video over a single cable.
Key Features
📹 8 × 2MP Bullet Cameras – 1080p resolution with IR night vision up to 20m
🌧️ IP67 Weatherproof Rating – Built for outdoor durability
🎯 H.265 Pro+ Compression – Efficient storage with high-quality playback
🧠 Motion Detection 2.0 – AI-based human/vehicle classification
🔌 100m Cat6 Cable + Baluns – Clean, long-distance analog installation
🖥️ Supports Up to 5 IP Cameras – Hybrid DVR flexibility
📦 Complete Installation Kit – Includes power supply, connectors, and accessories
Technical Specifications
Component Details
Product Code HIK-2802-100M
Kit Type Analog CCTV Kit
Camera Resolution 2MP (1920 × 1080)
Camera Type Fixed Mini Bullet
Night Vision Up to 20m IR
Weatherproof Rating IP67
Lens Options 2.8mm / 3.6mm Fixed Lens
Field of View Up to 120.5° diagonal
Image Enhancements DWDR, BLC, 2D DNR, Smart IR
Video Output TVI/AHD/CVI/CVBS switchable
DVR Channels 8 Analog + Up to 5 IP Inputs
Compression Format H.265 Pro+, H.265, H.264+
HDMI/VGA Output Up to 1920 × 1080 @ 60Hz
Audio Input/Output 1 × RCA In, 1 × RCA Out
Two-Way Audio Reuses first audio input
Playback 8-channel synchronous
Network Bandwidth 72 Mbps
Remote Connections Up to 64
Network Protocols TCP/IP, DHCP, Hik-Connect, HTTPS, etc.
Storage 1 × SATA (Up to 4TB)
USB Ports 2 × USB 2.0
Included Accessories 8 × Baluns (Pairs), 8 × DC Connectors, 1 × Securnix 8CH Power Supply, 100m Cat6 Cable

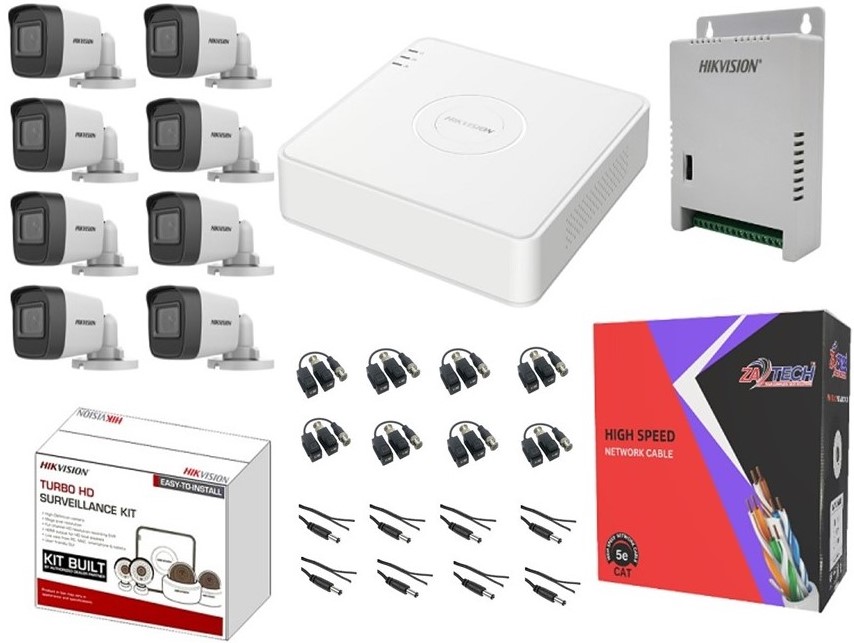

What’s Included
8 × Hikvision 2MP Mini Bullet Cameras
1 × 8-Channel DVR
8 × Baluns (Pairs)
8 × DC Power Connectors
1 × Securnix 8CH Power Supply
1 × 100m Cat6 Cable
1 × User Manual
📦 Shipping Policy for Heavy/Bulky Items
This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:
Calculate the most economical shipping option. Contact you with the exact additional charges. Process your order after receiving your confirmation.
Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation.
