Goldtool TCT-6100-B PON Power Meter, SC/APC Adapter, 10 Hour Battery, FTTX Diagnostics

Product Code: TCT-6100-B
Brand: Goldtool

🌟 Overview

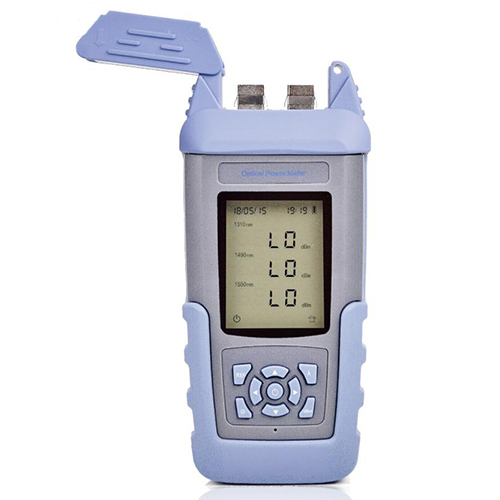

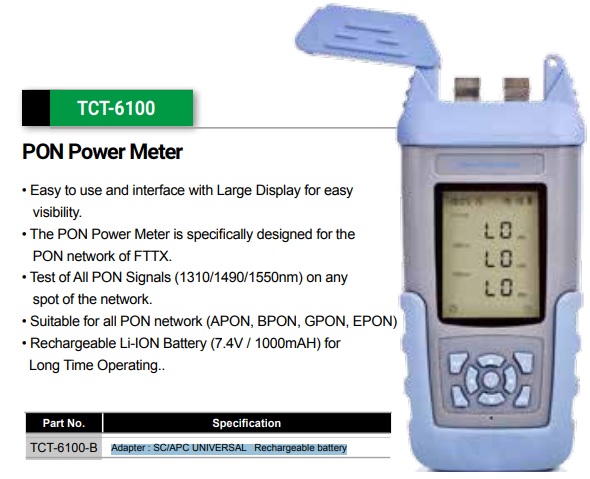

The Goldtool TCT-6100-B is a compact, rugged in-line PON Power Meter designed for live optical power testing in FTTX networks. With support for APON, BPON, GPON, and EPON standards, it simultaneously measures voice, data, and video signals across 1310nm upstream and 1490/1550nm downstream wavelengths. Its SC/APC universal adapter, sunlight readable display, and rechargeable Li-ion battery make it an essential tool for fiber optic construction and maintenance.

📦 Key Specifications
Attribute Details
Device Type In-Line PON Power Meter
Adapter Type SC/APC Universal
Supported Networks APON, BPON, GPON, EPON
Wavelengths Tested 1310nm (upstream), 1490nm & 1550nm (downstream)
Display Large, backlit, sunlight-readable
Indicators Pass/Fail LEDs, real-time signal display
Battery Rechargeable Li-ion (7.4V / 1000mAh), up to 10 hours
Features Fast reading, auto-off, waveform stability
Build Compact, rugged, field-ready
Interface Easy-to-use menu system
Dimensions (L × W × H) ~160 × 90 × 40 mm (estimated)
Net Weight 0.4 kg (estimated)
Gross Weight 0.65 kg (estimated)
Warranty 1 Year Limited
Packaging Retail Box
