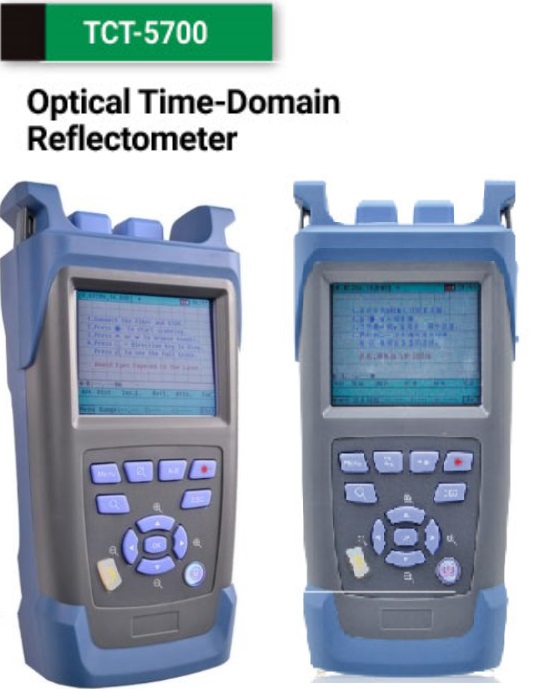

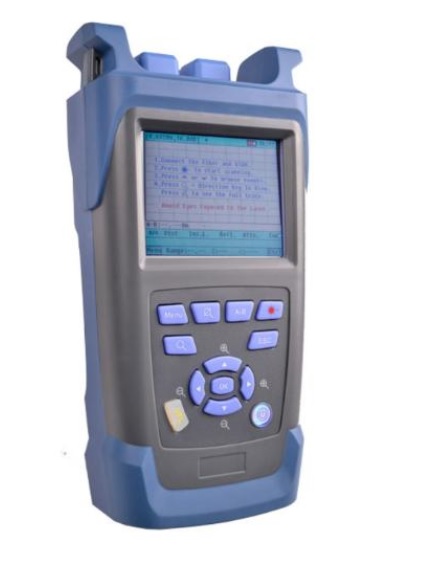

Goldtool TCT-5700A Optical Time Domain Reflectometer, 26–28 dB, FTTX Testing, Waveform Storage

Product Code: TCT-5700A
Brand: Goldtool

🌟 Overview
The Goldtool TCT-5700A is a multifunctional handheld Optical Time Domain Reflectometer (OTDR) designed for FTTX network diagnostics. With a dynamic range of 26–28 dB, it accurately measures fiber length, transmission loss, splice loss, and joint integrity. Featuring auto optimization, waveform storage, and USB export, it streamlines field testing and data management for fiber technicians and installers.

📦 Key Specifications
Attribute Details
Device Type Handheld Optical Time Domain Reflectometer
Dynamic Range 26 to 28 dB
Application FTTX network testing
Display Large, high visibility interface
Measurement Functions Fiber length, transmission loss, splice loss, joint loss
Cursor Function Displays distance between two points
Auto Features Auto optimization, auto event detection
Data Storage Internal waveform storage
USB Export Direct copy to U-disk
Operating Mode Manual and automatic
Power Supply Rechargeable battery (assumed)
Dimensions (L × W × H) ~220 × 120 × 60 mm (estimated)
Net Weight 0.9 kg (estimated)
Gross Weight 1.2 kg (estimated)
Warranty 1 Year Limited
Packaging Retail Box
