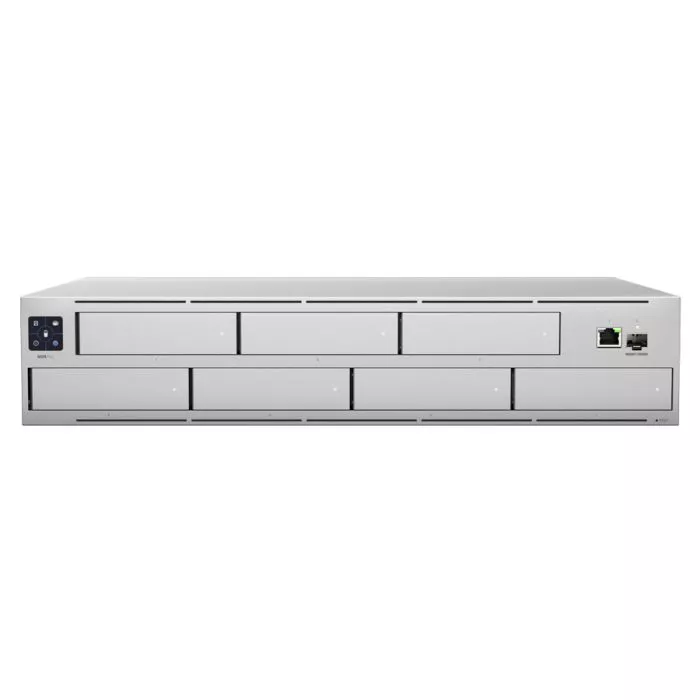

The Ubiquiti UniFi UNVR Pro is a 7‑bay, diskless Network Video Recorder and UniFi OS console running the preinstalled UniFi Protect application. Designed for professional and SMB deployments, it accepts up to seven 2.5" or 3.5" drives (not included) and offers a 10 Gbps SFP+ uplink plus a Gigabit Ethernet port for flexible high‑throughput architectures. A built‑in 1.3" touchscreen provides quick status and local control, while a quad‑core ARM Cortex‑A57 1.7 GHz CPU and 4 GB DDR4 memory deliver responsive multi‑stream recording and playback. With enterprise features like RAID support, rack‑mountable 1U design, and robust power (max 160 W), the UNVR Pro is ideal where high local storage capacity, UniFi Protect management, and secure high‑bandwidth connectivity are required.
Technical Details:
Operating system: UniFi Protect (preinstalled)
Drive bays: 7 × 2.5"/3.5" HDD/SSD (drives not included)
Ethernet: 1 × 10/100/1000 RJ45
SFP+: 1 × 10 Gbps SFP+ port
Processor: Quad‑core ARM Cortex‑A57 @ 1.7 GHz
Memory: 4 GB DDR4
Power: 1 × IEC power input; max power consumption 160 W
PoE: No PoE input or output
I/O: Reset hardware button; 1.3" touchscreen display; no USB; no serial
Supported voltage: 100–240 V
Operating temp: -5 to 40 °C
Form factor: 1U rack mount (rack ears may be required)
Dimensions: 442 × 325 × 87 mm
Model / SKU: UVC‑NVR‑PRO (UNVR Pro)
Notes: HDDs not included use Ubiquiti‑approved drives per compatibility guidelines
Weights
Net weight (unit only): 9.45 kg
Gross weight (boxed, estimated): ~11.8–12.5 kg
Quick deployment tips
Install Ubiquiti‑approved surveillance/NAS drives and configure RAID per retention and redundancy needs.
Use the 10G SFP+ uplink for aggregation or uplink to high‑capacity storage when many high‑resolution streams are active.
Place drives into the unit before rack mounting to simplify cabling and airflow.
