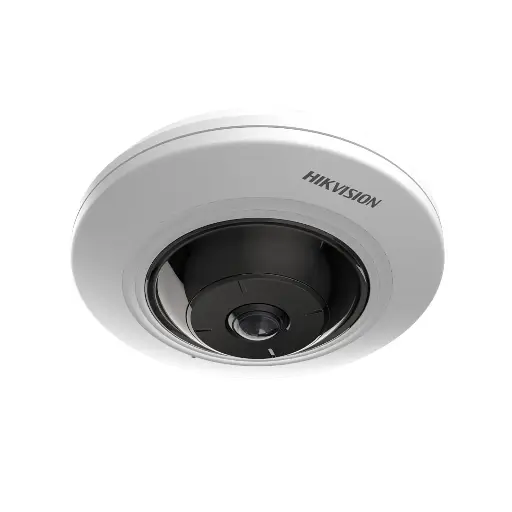

The Hikvision 5 MP Fisheye Dome Camera delivers immersive 180° coverage with advanced image correction and flexible mounting options. Its ultra-wide 1.05 mm F2.25 lens captures 2560 × 1920 resolution at 25 fps, supported by 120 dB true WDR, 3D-DNR, defog, and distortion-correction for clear, balanced footage. Smart IR extends visibility up to 8 meters in low light. With 14 display modes including fisheye, 360° panorama, and 4-PTZ, it adapts to wall, ceiling, or table installations. Built-in mic and speaker enable two-way audio, while PoE or 12 V DC power options and onboard micro-SD storage make it ideal for retail, office, and public spaces.

Short Description:

5 MP fisheye dome with 180° horizontal/vertical field of view
1.05 mm F2.25 lens; 2560 × 1920 @ 25 fps
14 display modes including 360° panorama and 4-PTZ
Smart IR up to 8 m; built-in mic and speaker
PoE or 12 V DC; micro-SD up to 128 GB

Key Specifications:

Sensor and Resolution: 5 MP 1/2.7" CMOS; 2560 × 1920 @ 25 fps
Lens and FOV: 1.05 mm F2.25 lens; 180° horizontal/vertical field of view
Image Enhancements: 120 dB true WDR, 3D-DNR, defog, distortion-correction
IR Range: Smart IR up to 8 m; 850 nm wavelength
Display Modes: 14 modes including fisheye, 360° panorama, 4-PTZ
Audio: Built-in mic and speaker
I/O: 1 alarm input/output
Storage: micro-SD slot (up to 128 GB)
Power: PoE or 12 V DC; max 7.5 W
Housing: IP-capable (no anti-corrosion rating)
Dimensions and Weight: Ø 119.9 × 41.2 mm; 600 g
Operating Temperature: –10 °C to 50 °C
Gross shipping weight: Approx. 850 g
Retail pack includes Dome camera, mounting screws, quick start guide
