The Hikvision DS‑E04NI‑Q1‑4P‑SSD‑1TB is a compact, palm‑size 4‑channel PoE NVR built for discrete, low‑power surveillance applications. It ships with a pre‑installed 1 TB embedded SSD for reliable continuous recording and fast boot times. Supporting up to 4 MP recording with H.265+ compression and 4‑channel decoding, the unit offers efficient storage and smooth playback in a tiny footprint. Four integrated PoE AF/AT ports deliver power and network over single cables, while HDMI and USB outputs provide easy local monitoring and export. With very low power consumption and wide operating temperatures, this NVR is ideal for kiosks, retail counters, small offices, and remote sites that need dependable 24/7 recording without a large physical or power footprint.

Technical Details:

Model / SKU: DS‑E04NI‑Q1‑4P‑SSD‑1TB
Channels: 4 IP camera inputs
Storage (included): 1 × 1 TB embedded SSD (pre‑installed)
Max recording: Up to 4 MP
Incoming bandwidth: 40 Mbps
Decoding: Up to 4‑ch 1080p decode (4‑ch simultaneous playback)
Compression: H.265+, H.265, H.264
PoE: 4 × PoE AF/AT ports (power budget dependent on SKU)
Video outputs: HDMI local output
I/O: 1 × USB (export/backup), HDMI, Reset button
Power: ≤ 10 W (typical)
Operating temp / humidity: -10 to 50 °C; commercial humidity ranges
Dimensions: 160 × 112 × 27 mm
Form factor: Ultra‑compact / palm‑size
Use cases: Retail counters, kiosks, remote offices, home entry points

The Hikvision DS‑7616NXI‑K2 is a compact 1U AcuSense NVR delivering enterprise‑grade features in a small footprint. It combines 16 built‑in PoE ports with a 200 W power budget, 160 Mbps incoming throughput, and support for up to 12MP recording. AcuSense AI performs face and perimeter detection to reduce false alarms, while 4K HDMI output and dual SATA bays (up to 20 TB) provide flexible local monitoring and storage. Optimized H.265+ compression, robust alarm I/O, and multi‑channel playback make this NVR ideal for retail, SMB, and campus deployments that need intelligent, reliable surveillance.

Technical Details:

Model / SKU: DS‑7616NXI‑K2
Channels: 16 IP camera inputs
PoE: 16 × PoE ports; total PoE budget 200 W
Incoming bandwidth: 160 Mbps
Max recording: Up to 12 MP
Compression: H.265+, H.265, H.264
Video outputs: 1 × 4K HDMI (local display)
Storage: 2 × SATA bays, up to 20 TB total (manufacturer guidance recommended)
AI features: AcuSense face detection and perimeter protection (channel limits per firmware)
Alarm I/O: 4 inputs / 1 output
Dimensions: 385 × 315 × 52 mm
Form factor: 1U rack/desktop
Typical operating ranges: commercial temperature/humidity (refer to datasheet for exact specs)

The TP‑Link VIGI‑NVR1008H‑8MP is an 8‑channel PoE+ 4K NVR offering robust performance for small to medium surveillance installations. With a 113 W PoE power budget it supplies power and network to up to eight PoE+ cameras, supports up to 8MP recording, and provides H.265+ compression to maximise storage efficiency. Local monitoring is via 4K HDMI output; playback supports up to eight channels simultaneously. A single SATA bay supports up to 16 TB for long retention, while ONVIF compatibility and the VIGI app enable flexible integrations and remote management. Compact (294 × 180 × 44 mm) and easy to deploy, it’s ideal for retail, offices, and residential estates.

Technical Details:

Model / SKU: VIGI‑NVR1008H‑8MP
Channels: 8 IP camera inputs
PoE: PoE+ with 113 W total budget (powers up to eight cameras depending on camera draw)
Max recording: Up to 8 MP
Incoming bandwidth: 80 Mbps
Outgoing bandwidth: 60 Mbps
Compression: H.265+, H.265, H.264
Decoding / Playback: Up to 8‑ch simultaneous playback
Video outputs: 1 × 4K HDMI (local monitor)
Storage: 1 × SATA bay, up to 16 TB (single HDD)
Integration: ONVIF compliant; remote management via VIGI app
Form factor / Dimensions: Compact desktop / rackable style; 294 × 180 × 44 mm
Operating environment: Typical commercial ranges (refer to official datasheet for exact specs)

The Hikvision DS‑7616NXI‑K2/16P is a compact 1U 16‑channel AcuSense NVR delivering intelligent, high‑resolution surveillance for medium sites. It includes 16 built‑in PoE ports for streamlined camera power and connectivity, supports up to 12MP recording with H.265+ compression to save storage, and provides a 4K HDMI output for crisp local monitoring. AcuSense AI offers face recognition and perimeter protection to reduce false alarms and prioritise critical events. Dual SATA bays allow flexible storage (up to 20 TB total), while 160 Mbps incoming bandwidth and robust alarm I/O make this NVR suitable for retail, SMB, and campus deployments requiring reliable, feature‑rich video management.

Technical Details:

Model / SKU: DS‑7616NXI‑K2/16P
Channels: 16 IP camera inputs
PoE: 16 × PoE ports (total power budget depends on SKU/PSU)
Max recording: Up to 12 MP
Incoming bandwidth: 160 Mbps
Compression: H.265+, H.265, H.264
Video output: 1 × 4K HDMI (local display)
Decoding / Playback: Multi‑channel playback; smart search/playback features supported
Storage: 2 × SATA bays, up to 20 TB total (manufacturer guidance recommended)
AI features: AcuSense face detection and perimeter protection (channel limits per firmware)
Alarm I/O: 4 inputs / 1 output
Dimensions: 385 × 315 × 52 mm
Operating environment: Commercial operating ranges (refer to datasheet for specifics)

The Hikvision DS-7608NXI-K2 is a compact 1U 8‑channel AcuSense NVR designed for small-to-medium deployments that need smart analytics and reliable local monitoring. It features eight integrated PoE ports for streamlined camera power and connectivity, supports up to 12MP recording with H.265+ compression, and offers 4K HDMI output for crisp local display. AcuSense AI provides face and perimeter detection to reduce false alerts, while dual SATA bays allow flexible storage (up to 20 TB total). With 80 Mbps incoming bandwidth, robust alarm I/O, and a compact chassis, this NVR balances performance, manageability, and cost-effectiveness.

Technical Details:

Channels: 8 IP camera inputs
PoE: 8 × PoE ports (power budget depends on SKU/PSU)
Max recording: Up to 12 MP
Incoming bandwidth: 80 Mbps
Decoding / Playback: Multi‑channel playback; H.265+/H.265/H.264 support
Video outputs: 1 × 4K HDMI (local monitor)
Storage: 2 × SATA bays, up to 20 TB total (manufacturer guidance recommended)
AI features: AcuSense face detection and perimeter protection
Alarm I/O: 4 inputs / 1 output
Dimensions: 385 × 315 × 52 mm
Weight: ~3.0 kg (unit)
Operating conditions: Typical commercial operating ranges (refer to datasheet for specifics)
Model / SKU: DS‑7608NXI‑K2 (8‑PoE variant)

The Hikvision DS-7716NXI-I4/16P/S is a 16‑channel 1.5U AcuSense 4K NVR engineered for mid‑to‑large deployments that require smart analytics and heavy storage. With a 160 Mbps incoming bandwidth, 16 integrated PoE ports, and four 4K HDMI outputs, it delivers high‑throughput recording and flexible local monitoring. AcuSense AI supports face recognition and perimeter protection on up to four channels to reduce false alarms and prioritise events. Robust storage options (4 × SATA up to 56 TB total), H.265+ compression, multi‑channel 1080p decoding, and comprehensive alarm I/O make this NVR ideal for campuses, retail, and enterprise installations demanding reliable, intelligent video management.

Technical Details:

Channels: 16‑channel input; 32‑channel 1080p decode
Form Factor: 1.5U chassis
Incoming Bandwidth: 160 Mbps
Video Outputs: 4 × 4K HDMI (local displays)
Compression: H.265+, H.265, H.264
AI Features: AcuSense face recognition & perimeter protection (up to 4 channels)
Storage: 4 × SATA bays, up to 14 TB per bay (total up to 56 TB)
Alarm I/O: 16 inputs / 9 outputs (16/9 configuration)
PoE: 16 × PoE ports integrated (power budget dependent on PSU/ SKU)
Playback: Multi‑channel synchronous playback; smart search & playback features
Network: Gigabit NIC(s); ONVIF compatibility for third‑party cameras
Model / SKU: DS-7716NXI-I4/16P/S

The Hikvision DS-7732NXI-I4/16P/S is a 32‑channel 1U AcuSense 4K NVR built for large deployments that need smart analytics and ample storage. It supports 16 PoE ports for direct camera power, up to 256 Mbps incoming bandwidth, and 4K HDMI output for crisp monitoring. AcuSense AI enables perimeter protection and face recognition on up to 4 channels, while 32‑channel 1080p decoding ensures smooth playback across many streams. With four SATA bays (up to 16 TB each) plus eSATA expansion, flexible alarm I/O (16 in / 9 out), and a robust 445 × 400 × 75 mm chassis, it’s ideal for campuses, retail estates, and multi‑site systems.

Technical details:

Channels: 32‑channel input; 32‑channel 1080p decode
PoE ports: 16 × PoE (integrated)
Bandwidth: Up to 256 Mbps incoming
Video output: 4K HDMI (plus standard outputs)
AI features: AcuSense perimeter protection + face recognition (up to 4 channels)
Playback: Multi‑channel synchronous playback
Compression: H.265+, H.265, H.264
Storage: 4 × SATA bays, up to 16 TB each; 1 × eSATA expansion
Alarm I/O: 16 inputs / 9 outputs
Dimensions: 445 × 400 × 75 mm
Model / SKU: DS-7732NXI-I4/16P/S

The Hikvision DS-7104NI-Q1/4P is a compact 4‑channel 1U Mini NVR with built‑in PoE for simplified installation. Supporting up to 6MP recording and 4‑channel 1080p decoding, it delivers reliable performance for small to medium surveillance setups. With 40 Mbps incoming bandwidth and 60 Mbps outgoing, HDMI/VGA outputs, and H.265+ compression, it ensures efficient storage and smooth playback. A single SATA interface supports up to 6 TB HDD, while the 36 W PoE budget powers up to four IP cameras directly. Compact (200 × 200 × 48 mm), powered by DC 48V, and operating in -10~55°C, this NVR is ideal for cost‑effective, space‑saving deployments.

Technical Details:

Channels: 4‑channel input
Form Factor: 1U Mini NVR
PoE Ports: 4 × PoE, 36 W total budget
Recording: Up to 6MP/4MP resolution
Bandwidth: 40 Mbps incoming, 60 Mbps outgoing
Decoding: 4‑channel 1080p synchronous playback
Video Output: HDMI & VGA
Compression: H.265+, H.265, H.264
Storage: 1 × SATA interface, up to 6 TB HDD
Power: DC 48V
Operating Temperature: -10°C to +55°C
Dimensions: 200 × 200 × 48 mm
Model / SKU: DS-7104NI-Q1/4P

The TP-Link VIGI-NVR1104H-4P is a 4‑channel PoE+ 4K NVR designed for efficient and intelligent video management. Supporting up to 16 MP decoding, 4K HDMI output, and 4‑channel synchronous playback, it delivers crisp, high‑resolution monitoring. With a 53 W PoE+ power budget, it can directly power and connect up to four IP cameras, simplifying installation. Featuring H.265+ compression for optimized storage, a single SATA interface supporting up to 10 TB HDD, ONVIF compatibility, and a built‑in speaker, this NVR integrates seamlessly with the VIGI app for remote access and management. Compact and reliable, it’s ideal for small to medium surveillance setups.

Technical Details:

Channels: 4‑channel input
PoE+ Budget: 53 W total
Video Output: 4K HDMI
Decoding Capability: Up to 16 MP
Playback: 4‑channel synchronous playback
Compression: H.265+, H.265, H.264
Storage: 1 × SATA interface, up to 10 TB HDD
Audio: Built‑in speaker
Integration: ONVIF compliant; remote management via VIGI app
Power: PoE+ and 12 VDC support
Model / SKU: VIGI-NVR1104H-4P

The Hikvision DS-7604NXI-K1 is a 4‑channel 1U AcuSense 4K NVR designed for intelligent video management. Supporting up to 40 Mbps incoming bandwidth and 4K HDMI output, it delivers crisp playback and recording. Advanced AcuSense AI provides face recognition and perimeter protection, reducing false alarms and enhancing security efficiency. With H.265+ compression, a single SATA interface supporting up to 10 TB HDD, and 4‑channel synchronous playback, this NVR ensures reliable storage and smooth performance. Compact (320 × 240 × 48 mm) and powered by 12 VDC/PoE, it’s ideal for small to medium surveillance setups requiring smart analytics and efficient storage.

Technical Details:

Channels: 4‑channel input
Form Factor: 1U rackmount
Incoming Bandwidth: 40 Mbps
Video Output: 4K HDMI
Compression: H.265+, H.265, H.264
AI Features: AcuSense face recognition & perimeter protection
Playback: 4‑channel synchronous playback
Storage: 1 × SATA interface, up to 10 TB HDD
Power: 12 VDC / PoE support
Dimensions: 320 × 240 × 48 mm
Model / SKU: DS-7604NXI-K1

The Ubiquiti UniFi UNVR Pro is a 7‑bay, diskless Network Video Recorder and UniFi OS console running the preinstalled UniFi Protect application. Designed for professional and SMB deployments, it accepts up to seven 2.5" or 3.5" drives (not included) and offers a 10 Gbps SFP+ uplink plus a Gigabit Ethernet port for flexible high‑throughput architectures. A built‑in 1.3" touchscreen provides quick status and local control, while a quad‑core ARM Cortex‑A57 1.7 GHz CPU and 4 GB DDR4 memory deliver responsive multi‑stream recording and playback. With enterprise features like RAID support, rack‑mountable 1U design, and robust power (max 160 W), the UNVR Pro is ideal where high local storage capacity, UniFi Protect management, and secure high‑bandwidth connectivity are required.

Technical Details:

Operating system: UniFi Protect (preinstalled)
Drive bays: 7 × 2.5"/3.5" HDD/SSD (drives not included)
Ethernet: 1 × 10/100/1000 RJ45
SFP+: 1 × 10 Gbps SFP+ port
Processor: Quad‑core ARM Cortex‑A57 @ 1.7 GHz
Memory: 4 GB DDR4
Power: 1 × IEC power input; max power consumption 160 W
PoE: No PoE input or output
I/O: Reset hardware button; 1.3" touchscreen display; no USB; no serial
Supported voltage: 100–240 V
Operating temp: -5 to 40 °C
Form factor: 1U rack mount (rack ears may be required)
Dimensions: 442 × 325 × 87 mm
Model / SKU: UVC‑NVR‑PRO (UNVR Pro)
Notes: HDDs not included use Ubiquiti‑approved drives per compatibility guidelines

Weights
Net weight (unit only): 9.45 kg
Gross weight (boxed, estimated): ~11.8–12.5 kg

Quick deployment tips
Install Ubiquiti‑approved surveillance/NAS drives and configure RAID per retention and redundancy needs.
Use the 10G SFP+ uplink for aggregation or uplink to high‑capacity storage when many high‑resolution streams are active.
Place drives into the unit before rack mounting to simplify cabling and airflow.

The Ubiquiti UniFi UNVR is a 4‑bay, diskless Network Video Recorder and UniFi OS console running the preinstalled UniFi Protect application. Designed for SMBs and pro installs, it accepts up to four 2.5" or 3.5" HDDs (not included), offers a 10G SFP+ uplink for high‑throughput camera deployments, and delivers efficient local management of UniFi Protect camera fleets. With a quad‑core ARM Cortex‑A57 1.7 GHz CPU and 4 GB DDR4 memory, the UNVR provides smooth multi‑stream recording and playback while fitting neatly in a 1U rack footprint.

Technical Details:

Operating system: UniFi Protect (preinstalled)
Drive bays: 4 × 2.5"/3.5" HDD/SSD (drives not included)
Ethernet: 1 × 10/100/1000 RJ45
SFP+: 1 × 10 Gbps SFP+ port
Processor: Quad‑core ARM Cortex‑A57 @ 1.7 GHz
Memory: 4 GB DDR4
Power: 1 × IEC power input; max power consumption 100 W
PoE: No PoE input or output
I/O: Reset hardware button; no USB; no serial
Supported voltage: 100–240 V
Operating temp: -5 to 40 °C
Form factor: 1U rack mount
Dimensions: 442.4 × 325 × 43.7 mm
Model / SKU: UNVR (UVC‑NVR)

The Reolink RLN8‑410 is a complete, ready‑out‑of‑the‑box 4K surveillance hub for homes and small businesses. With an integrated 8‑port PoE switch, it powers and connects up to eight 8MP/4K Reolink cameras using single Ethernet cables and auto‑detects them for true plug‑and‑play setup. H.265+ compression extends retention without sacrificing clarity, while the pre‑installed 6 TB HDD provides ample space for continuous 24/7 recording. Smart person/vehicle detection delivers focused alerts, and 4K HDMI output ensures crystal‑clear local monitoring.

Key features:

Crystal‑clear monitoring: 8 channels at up to 8MP/4K; smooth 3840×2160 @ 25 fps per channel.
Storage built‑in: 6 TB HDD pre‑installed for long retention; expandable for larger archives.
Efficient compression: H.265+ reduces storage needs by up to 80% vs. H.264.
Simplified installation: 8 × PoE ports (15.4 W/port); auto camera discovery for zero‑config setup.
Smart security: AI person/vehicle detection; app‑based smart alerts and remote playback.
Flexible outputs: 4K HDMI for primary display, 1080p VGA for secondary.
Perfect use cases: Whole‑property 4K security, retail/office/warehouse coverage, and easy expandability for tech enthusiasts.

Technical specifications:

Feature Specification
Video input 8 channels @ 8MP (3840×2160 @ 25 fps)
Compression H.265+, H.265, H.264
PoE ports 8 × PoE, 15.4 W per port
Smart detection People, vehicles (NVR and/or camera‑side)
Video outputs 4K HDMI, 1080p VGA
Storage (included) 1 × 6 TB HDD (pre‑installed)
Storage (max) Up to 12 TB total capacity
Plug‑and‑play Auto‑detects Reolink cameras
Note: AI features and frame rates depend on camera capabilities. For third‑party ONVIF cameras, confirm stream compatibility and PoE power requirements.

What’s included:

NVR: Reolink RLN8‑410 with 6 TB HDD pre‑installed
Accessories: Power adapter, USB mouse, quick start guide
Cabling: Ethernet cables and cameras are typically sold separately

Deployment tips:

Power budget: 15.4 W per port suits most fixed‑lens cameras; PTZ or high‑draw models may need external PoE injectors/switches.
Retention planning: Use H.265+ and motion recording with smart filters to extend storage without losing key events.
Network hygiene: Place cameras on a dedicated VLAN, enforce strong credentials, and keep firmware up to date.
Display setup: Use 4K HDMI for your main wall and 1080p VGA for a secondary console.

The Reolink RLN36 is a 36‑channel enterprise NVR built for high‑density 12MP/4K surveillance. With up to 48 TB local storage (3 × 16 TB), ONVIF/RTSP interoperability, and gigabit networking, it’s designed to anchor large camera fleets with reliable 24/7 performance. Smart person/vehicle detection streamlines alerts, while 4K HDMI output enables crisp local monitoring. Flexible alarm I/O (8‑in/4‑out) integrates with external sensors and sirens, making the RLN36 a strong fit for campuses, logistics hubs, and multi‑building estates.

Technical details:
Channels: 36‑channel input; 12MP/4K camera compatibility
Storage: Up to 48 TB total (3 × 16 TB HDD bays)
Compression: H.265+, H.265, H.264
Video output: 4K HDMI + secondary outputs as supported
Smart detection: AI person/vehicle (camera/NVR dependent)
Interoperability: ONVIF and RTSP configurable
Alarm I/O: 8 inputs / 4 outputs
Networking: Gigabit LAN
Dimensions: 330 × 310 × 48 mm
Weight: 2.26 kg (unit)

Built for demanding, always-on environments, the Reolink RLN16-410 is a 16‑channel PoE NVR that’s truly ready to deploy. With 16 integrated PoE ports (15.4 W each), it powers and connects cameras over single cables, auto‑detects Reolink cameras for instant setup, and supports up to 12MP/4K streams for ultra‑detailed monitoring. H.265+ compression maximizes retention, while the pre‑installed 4 TB HDD and expansion up to 24 TB keep 24/7 recordings accessible. AI person/vehicle detection helps cut false alerts, and 4K HDMI ensures local monitoring at full resolution.

Key features:

All‑in‑one PoE: 16 built‑in PoE ports (15.4 W/port) for power + data over single cables; true plug‑and‑play with Reolink cameras.
Ultra HD support: Compatible with 12MP/4K cameras; 4K HDMI output for sharp local viewing.
Efficient storage: H.265+ compression for reduced bandwidth and storage; pre‑installed 4 TB HDD, expandable up to 24 TB (4 × 6 TB).
AI detection: On‑device smart person/vehicle recognition to reduce false alarms.
Scalable performance: 16 channels at high resolution for multi‑site and enterprise deployments.
Flexible outputs: 4K HDMI + 1080p VGA for versatile monitoring setups.
Deploy anywhere: Ideal for retail, warehouses, offices, estates, farms, and multi‑building sites.

Technical specifications:

Feature Spec
Channels 16 (supports up to 12MP; 8MP at 30 fps)
PoE ports 16 × PoE, 15.4 W per port
Compression H.265+, H.265, H.264
Smart detection People, vehicles
Video outputs 4K HDMI, 1080p VGA
Storage (included) 1 × 4 TB HDD (pre‑installed)
Storage (max) Up to 24 TB (4 × 6 TB)
Plug‑and‑play Auto‑detects Reolink cameras

Tip: For non‑Reolink ONVIF cameras, confirm stream compatibility (codec, resolution, frame rate) and PoE power requirements.

What’s included:

NVR: Reolink RLN16‑410 with 4 TB HDD pre‑installed
Power & accessories: NVR power adapter, mouse, quick start guide
Note: Ethernet cables and cameras are typically sold separately

Deployment recommendations:

Power planning: The total PoE budget is bound by the NVR’s PSU; high‑draw cameras (PTZ, heaters) may need external PoE injectors/switches.
Storage strategy: Use H.265+ where supported; set motion‑based recording with AI filters to extend retention.
Network setup: Isolate camera VLANs for security; enable remote access via secure ports or Reolink app with strong credentials.
Display & monitoring: Use the 4K HDMI output for local multi‑camera walls; VGA for secondary stations.

The HiLook NVR‑232MH is a professional 32‑channel network video recorder built for reliability and scale. Dual‑OS architecture and ANR storage improve uptime and recording integrity during network issues. It supports up to 8MP recording, H.265+/H.265/H.264+/H.264 codecs for efficient storage, 4K HDMI output, and two SATA bays for recording and backup. Advanced stream security (TLS, RTP over HTTPS), smart search, instant multi‑channel playback, VCA alarms and centralized camera management make this NVR ideal for enterprise, campus, retail, and multi‑site deployments requiring robust performance and secure transmission.

Technical Details:

Channels: Up to 32 IP camera inputs
Max recording resolution: Up to 8 MP
Compression: H.265+/H.265/H.264+/H.264/MPEG4
Decoding / Playback: Instant playback for assigned channels; smart search and smart playback features
Bandwidth: Up to 128 Mbps TLS outgoing stream (max); configurable network bandwidth management
Network: 1 × self‑adaptive 10/100/1000 Mbps NIC (Gigabit LAN)
Video outputs: HDMI (up to 4K 3840×2160) and VGA independent outputs
Storage: Up to 2 × SATA interfaces (recording + backup); HDD quota & group modes supported
Storage reliability: ANR technology for camera‑side buffering during network loss
Security: Stream over TLS; enhanced SDK and RTP over HTTPS support
Camera management: Centralized configuration, batch import/export, firmware upgrade, two‑way audio support, VCA alarm recording/playback
Interoperability: Connectable to third‑party network cameras (ONVIF/RTSP compatibility depends on camera)
Form factor: 1U chassis
Typical power & environment: (dependent on model SKU); operating features include enterprise‑grade temperature and humidity tolerances as per installation site

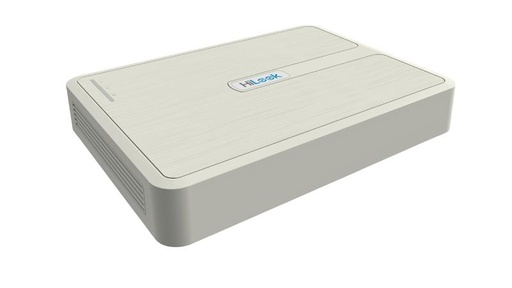

8 Independent 100MPS POE ports; Video Content Analytics; 1-Ch Audio input; HDMI and VGA output at up to 1920×1080P; 1x SATA interface(Up to 6TB); Mini 1U case; 12VDC
Description
NVR-108-B
8-ch Mini 1U 4 PoE 4K NVR
Connectable to the third-party network cameras
Up to 8 network cameras can be connected
H.264+ compression effectively reduces the storage space and costs by up to 50%
Full channel recording at up to 4 MP resolution
HDMI/VGA output at 1080p resolution
2-ch playback at 4 MP resolution or 4-ch at 1080p resolution
1 SATA hard disk can be connected with 6TB capacity
HDD quota management: different capacity can be assigned to different channel
Supports line crossing detection and intrusion detection
Smart search for the selected area in the video; and smart playback to improve the
playback efficiency
One-key operation: automatically search, modify and add IP cameras after device is
activated
Hik-Connect and DyDDNS for easy network management
100 Mbps Ethernet network interface

General
Power supply48 VDC
Working temperature-10 °C to +55 °C (14 °F to 131 °F)
Working humidity10 % to 90 %
Consumption (without hard disk and PoE)≤ 10 W
Chassis1U chassis
Dimensions(W × D × H)285 × 215 × 48 mm(11.2" × 8.5" × 1.9")
Weight(without hard disk)≤ 1 kg (2.2 lb)

The HiLook NVR-116MH-C is a compact 1U 16‑channel 4K network video recorder built for small-to-medium deployments. It supports H.265+/H.265/H.264+/H.264, up to 160 Mbps incoming bandwidth, and flexible decoding (up to 1 channel @ 8MP or 5 channels @ 1080p). Local monitoring includes a 4K HDMI output and VGA, while audio is handled via RCA I/O with one‑way and two‑way support. Low power consumption (≤10 W), wide operating temperature range, and a slim 265 × 225 × 48 mm chassis make this NVR ideal for space‑constrained installations that still demand high‑resolution recording and efficient storage.

Technical Details:

Channels: Up to 16 IP camera inputs
Compression: H.265+/H.265/H.264+/H.264
Decoding: Up to 1‑ch @ 8MP or 5‑ch @ 1080p
Incoming bandwidth: 160 Mbps
Outgoing bandwidth: 80 Mbps
Video outputs: 1× HDMI (4K@30Hz and multiple lower modes), 1× VGA (1080p etc.)
Audio: 1× RCA output (linear, 1 kΩ); 1‑way/two‑way via RCA (2.0 Vp‑p, 1 kΩ)
Storage: 1× SATA (typical spec sheet shows 6 TB supported)
Power: 12 VDC, 1.3 A
Power consumption: ≤ 10 W
Operating temp/humidity: -10 to +55°C; 10–90% RH
Chassis: 1U
Dimensions: 265 × 225 × 48 mm
Model / SKU: NVR‑116MH‑C

HiLook 4-ch Mini 1U 4 PoE 4K NVR
Up to 8 channel IP cameras can be connected
Plug & Play with 8 Power-over-Ethernet (PoE) interfaces
Supports decoding H.264+/H.264 multiple video formats
Up to 4-ch @ 1080p decoding capacity
1 HDD for continuous video recording
Video and Audio
IP video input8-ch
Two-way audio input1-ch, RCA (2.0 Vp-p, 1kΩ)
Video/Audio output
HDMI/VGA output1-ch, resolution:1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio output1-ch, RCA (Linear, 1kΩ)
Recording resolution4 MP/3 MP/1080p/1.3 MP/UXGA/720p/VGA/4CIF /DCIF/2CIF/CIF/QCIF
General
Power supply48 VDC
Working temperature-10 °C to +55 °C (14 °F to 131 °F)
Working humidity10 % to 90 %
Consumption (without hard disk and PoE)≤ 10 W
Chassis1U chassis
Dimensions(W × D × H)285 × 215 × 48 mm(11.2" × 8.5" × 1.9")
Weight(without hard disk)≤ 1 kg (2.2 lb)
