The Hikvision DS‑KAB673‑FB Bluetooth & Fingerprint Recognition Module is a powerful plug‑in accessory designed for the DS‑K1T673 series terminals. It enhances access control by adding Bluetooth connectivity and biometric fingerprint recognition, supporting up to 10,000 stored prints with <1 second matching speed.

Compact and durable, the module is USB powered and built with IP65 weatherproof protection, ensuring reliable performance in outdoor environments. Operating in temperatures from ‑30°C to 60°C, it is engineered for both residential and commercial installations.

With its slim design (110.5 × 23.7 × 47.7 mm), the DS‑KAB673‑FB integrates seamlessly into Hikvision terminals, providing secure, modern, and convenient authentication.

Technical Details:

Model / SKU: DS‑KAB673‑FB
Type: Bluetooth & Fingerprint Recognition Module
Compatibility: DS‑K1T673 series terminals
Fingerprint Capacity: 10,000 prints
Matching Speed: <1 second
Power: USB powered
Protection: IP65 weatherproof
Operating Temperature: ‑30°C to 60°C
Dimensions: 110.5 × 23.7 × 47.7 mm

The Hikvision DS‑K1201AMF Fingerprint & M1 Card Reader is a secure and versatile access control device designed for demanding environments. With a capacity of 5,000 fingerprints, it supports both 1:1 and 1:N matching in under 1 second, ensuring fast and reliable authentication.

It also features M1 card reading (30–100 mm range), making it suitable for dual‑mode access. Built with RS‑485 communication, the reader integrates seamlessly into Hikvision access control systems.

Rated IP65 weatherproof, it operates in extreme temperatures from ‑40°C to 70°C, making it ideal for outdoor installations. Compact at 62 × 132 × 44 mm, it includes a tamper buzzer and LED indicators for enhanced security feedback. Powered by 12VDC, it is surface‑mountable for straightforward deployment.

Technical Details:

Model / SKU: DS‑K1201AMF
Fingerprint Capacity: 5,000 prints
Matching Modes: 1:1 and 1:N, <1s recognition
Card Support: M1 card, 30–100 mm reading distance
Interface: RS‑485
Power Supply: 12VDC
Protection: IP65 weatherproof
Operating Temperature: ‑40°C to 70°C
Dimensions: 62 × 132 × 44 mm
Features: Tamper buzzer, LED indicators
Mounting: Surface mount

The Hikvision DS‑K1F100‑D8E Card Enrollment Station is a compact, plug‑and‑play solution for secure card registration. Designed with USB 2.0 connectivity, it requires no drivers, ensuring quick setup and seamless integration with access control systems.

Supporting MIFARE, EM, CPU, and PSAM cards, the device operates at both 13.56 MHz and 125 kHz frequencies for broad compatibility. Dual SAM slots enhance security, while its lightweight design (87.6 g) and small footprint (117 × 67.5 × 14.3 mm) make it ideal for desktop use.

Backed by a 1‑year warranty, the DS‑K1F100‑D8E is a reliable enrollment station for organizations needing efficient card management.

Technical Details:

Model / SKU: DS‑K1F100‑D8E
Interface: USB 2.0 (plug‑and‑play, no drivers required)
Supported Cards: MIFARE, EM, CPU, PSAM
Frequency: 13.56 MHz & 125 kHz
Security: Dual SAM slots
Dimensions: 117 × 67.5 × 14.3 mm
Weight: 87.6 g
Warranty: 1 year

The Hikvision DS-K1109DKB-QR Numeric and Card Reader is a robust access control solution designed for secure outdoor environments. Supporting Mifare DESFire, Felica, and M1 cards, it combines numeric keypad entry with QR code scanning for versatile authentication.

Built with IP65 weatherproof protection, it operates reliably in extreme temperatures from -40°C to 65°C. The device integrates seamlessly with access control systems via Wiegand‑26/34 and RS‑485 interfaces, ensuring compatibility with a wide range of installations.

Compact at 125 × 84.5 × 18 mm, it features a tamper buzzer and LED indicators for enhanced security feedback. Backed by Hikvision’s reputation for reliability, this reader is ideal for commercial, industrial, and residential access control deployments.

Technical Details
Model / SKU: DS-K1109DKB-QR
Type: Numeric + Card + QR Code Reader
Supported Cards: MF DESFire, Felica, M1
Authentication: PIN entry + QR code scanning
Interfaces: Wiegand‑26/34, RS‑485
Power Supply: 12V DC
Operating Temperature: -40°C to 65°C
Protection: IP65 (outdoor weatherproof)
Dimensions: 125 × 84.5 × 18 mm
Features: Tamper buzzer, LED indicators

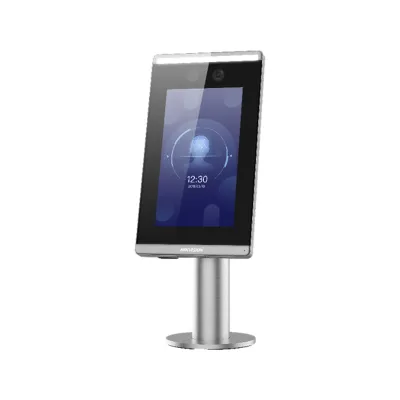

The Hikvision DS‑K5671‑ZV Face Recognition Module is a high‑performance access control solution designed for turnstiles and secure entry points. Featuring a 7" IPS touch‑screen and a 2MP wide‑angle lens (87°), it delivers fast and accurate facial recognition with 0.2‑second matching speed and 99% accuracy at distances of 0.3–3m.

With support for up to 50,000 face templates, QR code scanning, and mask detection alerts, it ensures versatile and hygienic authentication. Connectivity options include Wiegand‑26/34, RS‑485, PoE, and Gigabit Ethernet (10/100/1000M), making integration seamless.

Built for durability, the module is IP65 weatherproof and operates reliably in extreme temperatures from ‑30°C to 60°C. Powered via 12VDC or PoE, it is ideal for modern security installations in commercial, industrial, and residential environments.

Technical Details:

Model / SKU: DS‑K5671‑ZV
Display: 7" IPS touch‑screen
Camera: 2MP, 87° wide‑angle lens
Face Recognition: 0.2s speed, 99% accuracy, 0.3–3m range
Capacity: Up to 50,000 faces
Features: QR code scanning, mask detection alert
Interfaces: Wiegand‑26/34, RS‑485, Gigabit Ethernet (10/100/1000M)
Power: 12VDC or PoE
Protection: IP65 weatherproof
Operating Temperature: ‑30°C to 60°C
