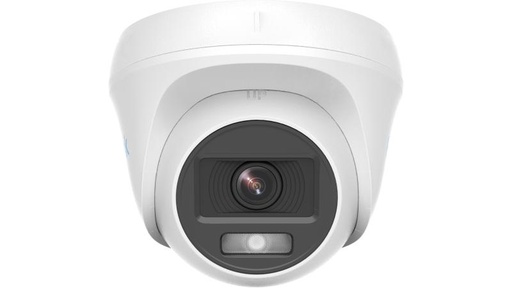

High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Signal System PAL/NTSC
Frame Rate
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD:1080p@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination0.001 Lux @ (F1.0, AGC ON)， 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens MountM12
Light Alarm Solid Light Alarm (White Light)
Day & Night24/7 Color Imaging
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Lens
Lens Type2.8 mm/3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 102°, vertical FOV: 54°, diagonal FOV: 121°
3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°

General
Operating Condition-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
Power Supply

12 VDC±25%

*You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 2.4 W
Materia lPlastic
White Light Range Up to 20 m
Dimension Ø 85.4 mm × 71.46 mm (Ø 3.36" × 2.79")
WeightApprox.123 g (0.27 lb)

High quality imaging with 2 MP, 1920 × 1080 resolution
Smart-Hybrid light, optimize your security with flexible lighting options
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for 4 switchable signals (TVI/AHD/CVI/CVBS)
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
Signal SystemPAL/NTSC
Lens
Lens Type2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°
3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90°
Lens MountM12
Illuminator
Supplement Light TypeWhite Light;IR
Supplement Light Range
IR : Up to 20 m
White Light : Up to 20 m

General
MaterialPlastic
DimensionØ84.6 mm × 78.9 mm (3.33'' × 3.11'')
WeightMax. 135 g (0.3 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply

12 VDC ± 25%, Max. 3.2 W

*You are recommended to use one power adapter to supply the power for one camera.

HiLook 2 MP Indoor Audio Fixed Turret Camera

1080P turret camera
Up to 20 m IR distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
With built-in microphone, enhancing your safety with video and audio together.
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night IR Cut Filter
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal System PAL/NTSC
Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens MountM12

General
Power12 VDC ± 25%, max. 2.7 W
Material Plastic
DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
Weight Approx. 140.5 g (0.31 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Language English

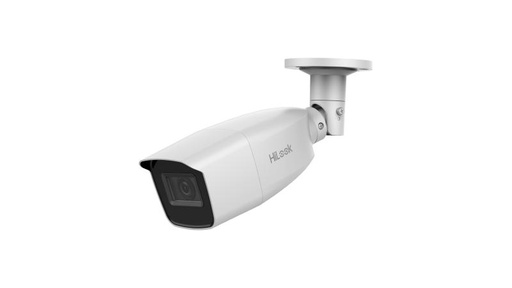

080p vari-focal bullet camera
EXIR 2.0: advanced infrared technology with 40 m IR distance
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux@(F1.6, AGC ON), 0 Lux with IR
Shutter Time1/25 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
Signal SystemPAL/NTSC
Lens
Lens Type2.8 mm to 12 mm
Focal Length & FOV111.5° to 33.4°
Lens MountΦ14

Illuminator
Supplement Light Type IR
Supplement Light Range Up to 40 m
Smart Supplement Light Yes

Image Settings Brightness; Sharpness; Mirror; AGC
Frame Rate: PAL:1080p@25fps NTSC: 1080p@30fps
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image Enhancement BLC
Noise Reduction2D DNR

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS;1 HD analog output

General
Power12 VDC ± 15%, max. 5 W
MaterialFront cover: Metal, Main body: Plastic
Dimension256.4 mm × 83.3 mm × 78.2 mm (10" × 3.2" × 3")
WeightApprox. 605 g (1.33 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Language English

High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 40 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP66)
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Signal System PAL/NTSC
Frame Rate
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD:1080p@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination0.001 Lux @ (F1.0, AGC ON)， 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens MountM12
Light Alarm Solid Light Alarm (White Light)
Day & Night24/7 Color Imaging
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Lens
Lens Type2.8 mm/3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 102°, vertical FOV: 54°, diagonal FOV: 121°
3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°

General
Operating Condition-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
Power Supply

12 VDC±25%

*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 4 W
Material Metal
White Light Range Up to 40 m
Dimension75.4 mm × 223.25 mm × 87.3 mm (2.97" × 8.79" × 3.44")
Weight Approx. 560 g (1.23 lb)

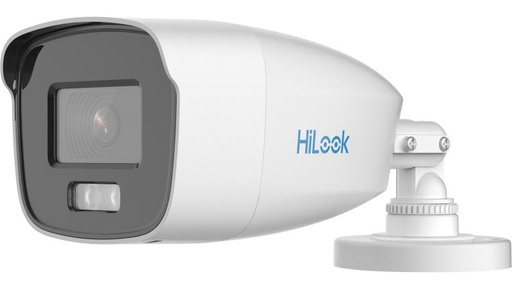

High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP66)
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Signal System PAL/NTSC
Frame Rate
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD:1080p@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination0.001 Lux @ (F1.0, AGC ON)， 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens MountM12
Light Alarm Solid Light Alarm (White Light)
Day & Night24/7 Color Imaging
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Lens
Lens Type2.8 mm/3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 102°, vertical FOV: 54°, diagonal FOV: 121°
3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°

General
Operating Condition-40°C to 60°C (-40°F to140°F), humidity: 90% or less (non-condensing)
Power Supply

12 VDC±25%

*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 2.4 W
Material Plastic
White Light Range Up to 20 m
Dimension162.7 mm × 70 mm × 70 mm (6.41" × 2.75" × 2.75")
Weight Approx. 152.5 g (0.34 lb.)

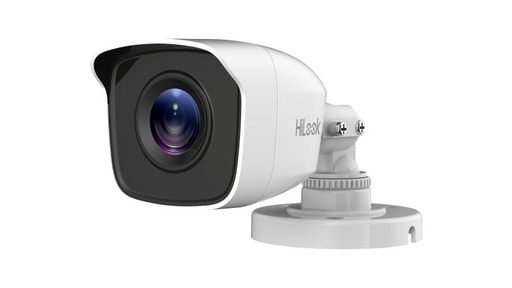

HiLook 2 MP Fixed Mini Bullet Camera
1080p bullet camera
Smart IR: up to 20 m IR distance
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Signal SystemPAL/NTSC
Lens
Lens Type2.8 mm, 3.6 mm and 6 mm
Focal Length & FOV
2.8 mm, horizontal FOV: 103°
3.6 mm, horizontal FOV: 80.7°
6 mm, horizontal FOV: 50.1°
Lens MountM12

High quality imaging with 2 MP, 1920 × 1080 resolution
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m IR distance for bright night imaging
Detects human body through heat-sensitive passive infrared (PIR)
Water and dust resistant (IP66)

Camera
Image Sensor2 MP CMOS
Signal System PAL/NTSC
Resolution1920 (H) × 1080 (V)
Frame Rate TVI: 1080p@25fps, 1080p@30fps
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens2.8 mm, 3.6 mm fixed focal lens
Field of View
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
3.6 mm, horizontal FOV: 81.3°, vertical FOV: 44.7°, diagonal FOV: 94.5°
Lens MountM12
Light Alarm Flashing Light Alarm (White Light);Solid Light Alarm (White Light)
Day & Night IR Cut Filter
WDR (Wide Dynamic Range)Digital WDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
White LightAuto/Off
Image ModeSTD/HIGH-SAT
AGCYes
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceAuto/Manual
AE (Auto Exposure) ModeGlobal;HLC;BLC;DWDR
Noise Reduction2D DNR
Language English
FunctionSharpness;Smart IR;Mirror;Brightness

General
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
Power Supply

12VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 3.6 W
Protection LevelIP66
Material Metal
IR Range Up to 20 m
White Light Range Up to 20 m
PIR Range Angle: 110°, Range: 11 m
Communication HIKVISION-C
Dimension166.7 mm × 68 mm × 69.3 mm (6.56" × 2.68" × 2.73")
Weight Approx. 296 g (0.65 lb.)

HiLook Dome Camera THC-T150-P 5MP 20m IR Specifications:
Image Sensor 5MP High Performance CMOS Sensor
Resolution 2560 x 1944 Resolution
Lens 2.8mm Fixed Lens
IR 24/7 Color Imaging with F1.0 Aperture
Power Supply 12v DC 4.3w Consumption

2MP Dual Light Fixed Mini Bullet Camera

High quality imaging with 2 MP, 1920 × 1080 resolution
Smart Hybrid light, optimize your security with flexible lighting options
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for 4 switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP66)

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
Signal SystemPAL/NTSC

Illuminator
Supplement Light Range IR : Up to 20 m
White Light : Up to 20 m
Supplement Light TypeSmart,IR,White Light
Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Image SettingsBrightness, Sharpness, Smart IR
Frame Rate TVI: 1080p @ 30 fps, 1080p @ 25 fps AHD: 1080p @ 30 fps, 1080p @ 25 fps
CVI: 1080p @ 30 fps, 1080p @ 25 fps CVBS: PAL/NTSC
Wide Dynamic Range (WDR)Digital WDR
Image Enhancement DWDR/BLC/HLC/Global
White Balance Auto/Manual
AGC Yes
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
MaterialPlastic
DimensionØ70 mm × 153.4 mm (Ø2.76" × 6.04")
WeightMax. 145 g (0.32 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply 12 VDC ± 25%, Max. 3.2 W
*You are recommended to use one power adapter to supply the power for one camera.
Approval
ProtectionIP66

Product Overview
The Hilook 16Ch 16x 2MP Bullet Cameras with 1TB SSD CCTV DIY Kit enhances security for homes and businesses with sixteen high-definition 2MP bullet cameras, ensuring clear video surveillance. The included 1TB SSD provides ample storage for continuous recording, allowing easy access to footage whenever needed. Designed for DIY installation, this comprehensive kit is perfect for users seeking a reliable and scalable monitoring solution.
Specifications
Product Code: HIL-21602-1TBSSD
Description: Hilook 16Ch 16x 2MP Bullet Cameras with 1TB SSD CCTV DIY Kit
Camera Resolution: 2 Megapixels
Storage Capacity: 1TB Solid State Drive
Number of Channels: 4
Weatherproof Rating: IP66
Night Vision Range: Up to 30 meter
Remote Viewing: Yes, via moble app

KGuard 16 Channel HD Series + 8 Cameras Combo Kit ( Hybrid DVR Supports 16CH Analoge & 8 CH IP Cameras, 24 Cameras Combined) - H.264 compression latest recording technology HD recording resolution quality is better than D1 Full HD output with 1080P display standard for connection to HDTV Easy to set up network without difficult configuration Exclusive DVR to connect Cloud Service and you have a personal space Advanced motion schedule can manage email alerts easily Free "kview" allows remote monitoring on your smartphones and tablets KGuard Fulcolor to provide excellent colorful images Using 3.6mm fixed lens with 75 degrees viewing angle to monitor particular areas 8 X 720P Cameras high resolution to make video clearer Night vision up to 30M in total darkness Waterproof case to protect the Camera and survive rainy days.Support mixing and installing Analog Cameras from different technologies (AHD 1080P/AHD 720P/Standard 960H). No need to be done in groups of two, Retail Box , 1 Year warranty

HiLook 16 Channel DVR with 16x 1080p HD Bullet Cameras DIY Combo Kit - Includes 16x 18m Pre-Built RG59 Cables, 2x 12V 5A PSU, 2x 8 Way Power Splitter, HDMI And VGA Outputs, 10/100 mbps RJ45 UTP Network Port, USB 2.0 Port, H.264+ Compression, Remote Viewing From Anywhere On PC and Mobile Smart Phone - Installer Kit, Retail Box , 1 year warranty

Product Overview
The HiLook 16 Channel DVR with 16x 1080p HD Bullet Cameras DIY Combo Kit is manufactured by HikVision and provides high quality Video Surveillance product at a more affordable price for Small- And Medium-Sized Projects At Home Or The Office. This DIY combo kit comes complete with a HiLook 16 Channel DVR , 16x 1080p HD Bullet Cameras and Includes 16x 20m Pre-Built RG59 Cables, 1x 12V 5A PSU, 1x 16 Way Power Splitter, HDMI And VGA Outputs ,RJ45 UTP Network Port H.264 Compression it also allows for Remote Viewing From Anywhere On PC and mobile smart phone.

Highlights

• HiLook 16 Channel DVR and 16x 1080p HD Bullet Cameras
• One SATA Interface (Up To 6 TB Capacity Per HDD) No Hard Disk Installed
• 16x 20m Pre-Built RG59 Cables
• 1x 12V 5A PSU
• 1x 16 Way Power Splitter
• 1x HDMI And 1x VGA Outputs
• 1x RJ45 UTP Network Port
• One-Key Enable H.264 Compression
• Connectable To Turbo HD/HDCVI/AHD/CVBS Signal Input
• Long Distance Transmission Over UTP And Coaxial Cable
• 1 Channel RCA Linear Audio Output
• Smart Search For Efficient Playback
• Remote Viewing From Anywhere On PC And Mobile Smart Phone

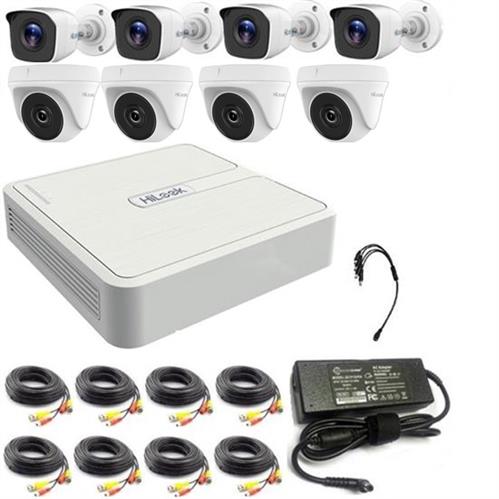

HiLook 8 Channel DVR with 4x 1080p HD Bullet Cameras and 4x 1080p HD Dome Cameras DIY Combo Kit - Includes 8x 18m Pre-Built RG59 Cables, 1x 12V 5A PSU, 1x 8 Way Power Splitter, HDMI And VGA Outputs, 10/100 mbps RJ45 UTP Network Port, USB 2.0 Port, H.264+ Compression, Remote Viewing From Anywhere On PC and Mobile Smart Phone - Installer Kit, Retail Box , 1 year warranty

Product Overview
The HiLook 8 Channel DVR with 8x 1080p HD Bullet Cameras provides high quality Video Surveillance product at a more affordable price for Small- And Medium-Sized Projects At Home Or The Office. This DIY combo kit comes complete with a HiLook 8 Channel DVR , 4x 1080p HD Bullet Cameras and 4x 1080p HD Dome Cameras.

Highlights

•HiLook 8 Channel DVR
•One SATA Interface (Up To 6 TB Capacity Per HDD) No Hard Disk Installed
•8x 20m Pre-Built RG59 Cables
•1x 12V 5A PSU
•1x 8 Way Power Splitter
•1x HDMI And 1x VGA Outputs
•1x RJ45 UTP Network Port
•One-Key Enable H.264 Compression
•Connectable To Turbo HD/HDCVI/AHD/CVBS Signal Input
•Long Distance Transmission Over UTP And Coaxial Cable
•1 Channel RCA Linear Audio Output
•Smart Search For Efficient Playback
•Remote Viewing From Anywhere On PC And Mobile Smart Phone

Specifications

•Stock Code: TK-8082MH-PP
•Description: HiLook 8 Channel DVR with 4x 1080p HD Bullet Cameras and 4x 1080p HD Dome Cameras DIY Combo Kit
•Product Type CCTV Security System For Small- And Medium-Sized Projects At Home Or The Office
•Smart Infrared LED Providing Crisp And Clear Night Surveillance
•Camera Range: 30M Day And 20M Night
•Switchable TVI/AHD/CVI/CVBS
•8x 20m Pre-Built RG59 Cables
•1x 12V 5A PSU
•1x 8 Way Power Splitter
•1x HDMI And 1x VGA Outputs
•1x RJ45 UTP Network Port
•One-Key Enable H.264 Video Compression
•Connectable To Turbo HD/HDCVI/AHD/CVBS Signal Input
•8 channel Analogue Video Input
•Video Input Interface: BNC (1.0 Vp-p, 75?)
•Audio Compression:G.711u
•Audio Input Interface: RCA (2.0 Vp-p, 1 k?)
•Two-way Audio:1-ch RCA(2.0Vp-p, 1k?)
•Long Distance Transmission Over UTP And Coaxial Cable
•1 x Channel RCA Linear Audio Output
•Smart Search For Efficient Playback
•Remote Viewing From Anywhere On PC And Mobile Smart Phone

Product Overview

The Hilook 4Ch 4x 2MP Bullet Cameras with 330GB SSD CCTV DIY Kit provides an effective security solution for homes and small businesses, featuring four high-definition 2MP bullet cameras that capture clear footage in various weather conditions. With a user-friendly design, this kit allows for easy installation without professional assistance and includes a robust 330GB SSD for reliable video storage. Equipped with night vision capabilities, it ensures continuous monitoring, making it an ideal choice for enhancing your security system.

Specifications

Product Code: HIL-2402-330GB
Description: Hilook 4Ch 4x 2MP Bullet Cameras with 330GB SSD CCTV DIY Kit
High-Resolution Cameras: Four 2MP bullet cameras for sharp and detailed imagery.
Reliable Storage: 330GB SSD providing robust storage for extensive footage.
Weatherproof Design: Cameras built to endure both sunny and rainy conditions.
Easy Installation: DIY installation suitable for homes and small businesses.
Remote Viewing: Monitor your premises from anywhere via a user-friendly interface.
Night Vision: Clear night vision ensures reliable security around the clock.

2MP Dual Light Audio Fixed Mini Bullet Camera

High quality imaging with 2 MP, 1920 × 1080 resolution
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS）
Water and dust resistant (IP66)
High quality audio with audio over coaxial cable, built-in microphone
Smart-Hybrid light, optimize your security with flexible lighting options

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, tilt: 0 to 180°, rotate: 0 to 360°
Signal SystemPAL/NTSC

Lens
Lens TypeFixed focal lens, 2.8 mm and 3.6 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV: 100°, vertical FOV: 55°, diagonal FOV: 116°
3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°
Lens Mount M12

Microphone
Pickup Distance In a radius of up to 5 m
Amount 1

Illuminator
Supplement Light Range IR : up to 20 m
White Light : up to 20 m
Supplement Light Type Smart, IR, White Light

Image Settings Brightness, Sharpness, Smart IR
Frame Rate TVI: 1080P @30 fps, 1080P @25 fps
AHD: 1080P @30 fps, 1080P@25 fps
CVI: 1080P @30 fps, 1080P @25 fps
CVBS: PAL/NTSC
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement DWDR/BLC/HLC/Global
White Balance Auto/Manual
AGC Yes
Day/Night Mode Auto/Color

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
MaterialPlastic
DimensionØ70 mm × 153.4 mm (Ø2.76" × 6.04")
WeightApprox. 164 g (0.36 lb)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 3.2 W

THC-B150-M5 MP Fixed Mini Bullet CameraHigh quality imaging with 5 MP, 2560 × 1944 resolution2.8 mm and 3.6 mm fixed focal lensUp to 20 m IR distance for bright night imagingOne port for four switchable signals (TVI/AHD/CVI/CVBS)Water and dust resistant (IP66)

Short Specifications:

Image Sensor 2MP High Performance CMOS Sensor
Resolution 1920 x 1080 Resolution
Lens 2.8mm Fixed Lens
IR 24/7 Color Imaging with F1.0 Aperture
Power Supply 12v DC 2.4w Consumption

HiLook 2 MP Indoor Audio Fixed Turret Camera

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal System PAL/NTSC
Lens
Lens Type 2.8 mm, 3.6 mm and 6 mm fixed focal lens
Focal Length & FOV 2.8 mm, horizontal FOV: 103 3.6 mm, horizontal FOV: 80.7
6 mm, horizontal FOV: 50.1
Lens Mount M12

Illuminator
Supplement Light Type IR
Supplement Light Range Up to 20 m

Image Settings Brightness;Sharpness;Mirror;Smart IR;AGC
Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps
Day/Night Mode Auto/Color/BW (Black and White)
Image Enhancement BLC;DWDR
Noise Reduction2D DNR

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS;1 HD analog output

General
Power12 VDC ±15%, max. 4 W
MaterialPlastic
DimensionØ 85.4 mm × 76.12 mm ( Ø 3.38" × 2.67")
WeightApprox. 130 g (0.29 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Language English

4-inch 2 MP 25X Powered by DarkFighter IR Analog Speed Dome

Four-inch 2 MP camera with pan, tilt and zoom (25x) ability
Clear imaging against strong back light due to 120 dB true WDR technology
Excellent night-time performance with up to 100 m enhanced IR
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s
Day & Night IR cut filter
Zoom25 × optical, 16 × digital

Lens
Focal Length4.8 mm to 120 mm, 25 × optical
FOVHorizontal FOV: 57.6° to 2.5° (wide to tele)
FocusAuto, semi-auto, manual
ApertureF1.6 to F3.5
Zoom SpeedApprox. 3.2 s (optical, wide to tele)

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 100 m

PTZ
Movement Range (Pan) 360° endless
Movement Range (Tilt) -15° to 90° (auto flip)
Pan Speed Pan manual speed: 0.1° to 80°/s Pan preset speed: 80°/s
Tilt Speed Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s
Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Patrol Scan10 patrols, up to 32 presets for each patrol
Pattern Scan5 patterns, record time over 10 minutes for each scan
Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Status Display Yes
Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-off Memory Yes

Video
Frame Rate 50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080)

Network Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
RS-485 Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

General
Power12 VDC, max. 20 W (IR: 7 W)
DimensionØ 165.9 mm × 290 mm (Ø 6.5" × 11.4")
Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
Language English
