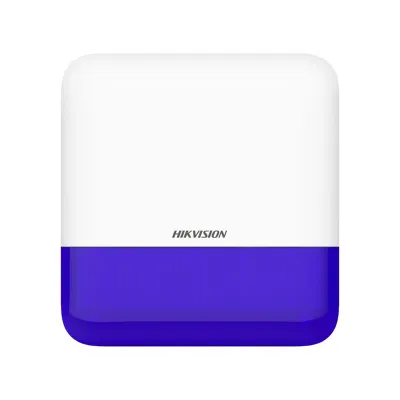

🚨 High-Impact Security Deterrent for Outdoor Use

✅ 110dB Loud Siren – Audible up to 500m (day/night operation)
✅ Wireless 868MHz – 2-way AES-128 encrypted communication with AX Pro Hub
✅ IP55 Weatherproof – Resists rain, dust, and extreme temps (-20°C to 60°C)
✅ Strobe Light – Blue LED flashing for visual alarm

📊 Technical Specifications
Category Specification
Model DS-PSG-WO-868 / DS-PS1-E-WE
Sound Level 110dB @ 1m
Range Up to 500m (open space)
Battery 2× CR123A (3-year lifespan)
Dimensions 5.9 × 3.5 × 2.4 in (150 × 90 × 60 mm)
Warranty 2-year limited

**🏡 Ideal For:

✔ Home/business perimeter alarms
✔ Garage/shed security
✔ AX Pro system integration
✔ Visual + audible deterrence

**📦 What's Included?

Wireless siren unit
Mounting bracket & hardware
Quick start guide

"Professional-grade outdoor security—deter intruders with piercing 110dB alarms!"

**⚙️ Pro Tips:

Mount 2-3m high for optimal sound dispersion
Test monthly to ensure battery/signal strength
Sync with AX Pro sensors for auto-triggering

**🔍 Why Choose This Siren?

✔ Louder than most competitors (typical 95-105dB)
✔ Tamper-proof design – Triggers if removed
✔ No wiring needed – True wireless setup

*(For indoor use, see DS-PSI-W-868 model)*

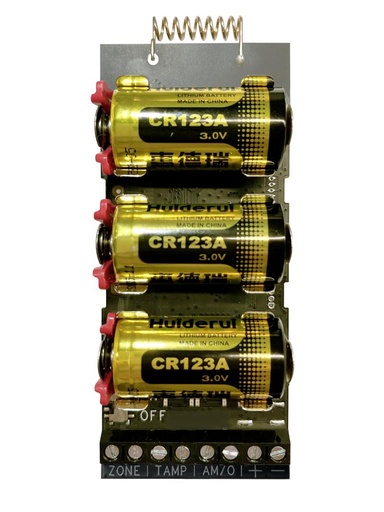

📡 Reliable Wireless Sensor Integration for AX Pro Systems

✅ 1700m Long-Range – 868MHz frequency with 2-way encrypted communication (AES-128)
✅ Single Input (NO/NC) – Connects to wired sensors (door/window, PIR, smoke, etc.)
✅ Works with AX Pro Hub – Extends Hikvision’s wireless security ecosystem
✅ IP30 Rated – Basic dust protection

📊 Technical Specifications

Category Specification
Model DS-PM1-I1-WE
Input Type 1× NO/NC (12V DC)
Range Up to 1700m (open space)
Compatibility Hikvision AX Pro alarm systems
Battery CR123A (3-year lifespan)
Dimensions 3.5 × 1.6 × 0.8 in (90 × 40 × 20 mm)
Warranty 2-year limited

**🏢 Ideal For:

✔ Retrofitting wired sensors into AX Pro wireless systems
✔ Long-range gate/door monitoring
✔ Industrial/warehouse security
✔ Perimeter protection

**📦 What's Included?

DS-PM1-I1-WE transmitter
Mounting screws
Quick start guide

"Bridge wired sensors to wireless security—extend coverage up to 1.7km with Hikvision’s reliable transmitter!"

**⚙️ Pro Tips:

Test signal strength before permanent installation
Use waterproof enclosure for outdoor deployments
Pair with AX Pro hub for real-time alerts

**🔍 Why Choose This Transmitter?

✔ Cost-effective wireless conversion for existing sensors
✔ Industry-leading range (vs. 300m competitors)
✔ Encrypted transmission prevents signal jamming

*(For multi-input models, see DS-PM2-I2-WE)*

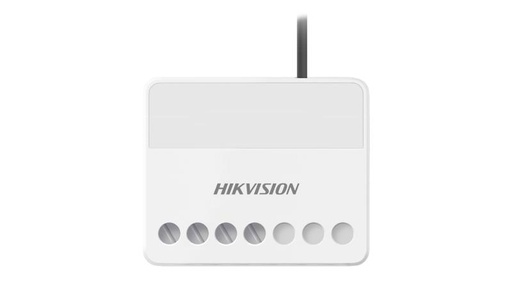

8🏠 Smart Lighting Control for Hikvision Smart Home Systems

✅ Wireless 868MHz Communication – Works with Hikvision AX Pro Hub
✅ Single-Gang Design – Replaces standard light switches
✅ Remote Control – Manage lights via Hik-Connect app
✅ Scene Mode Support – Integrates with other AX Pro devices

📊 Technical Specifications
Category Specification
Model DS-PM1-O1H-WE
Compatibility Hikvision AX Pro ecosystem
Wiring Neutral wire required
Load Capacity Up to 10A/2200W (resistive)
Dimensions Standard 86mm wall plate size
Certification CE, RoHS

**🏡 Ideal For:

✔ Smart home lighting control
✔ Automated scene setups (e.g., "Goodnight" mode)
✔ Energy-saving solutions
✔ Security lighting integration

**📦 What's Included?

DS-PM1-O1H-WE switch
Mounting screws
Quick start guide

"Upgrade your home with smart lighting—seamless control via app or voice commands!"

**⚙️ Pro Tips:

Ensure neutral wire availability before installation
Group with other AX Pro devices for automated scenes
Use with Hik-Connect for remote access

**🔍 Why Choose This Switch?

✔ Works with Hikvision’s security ecosystem
✔ Modern design blends with home decor
✔ No hub required (connects directly to AX Pro system)

*(For multi-gang setups, see DS-PM2-O2H-WE model)*

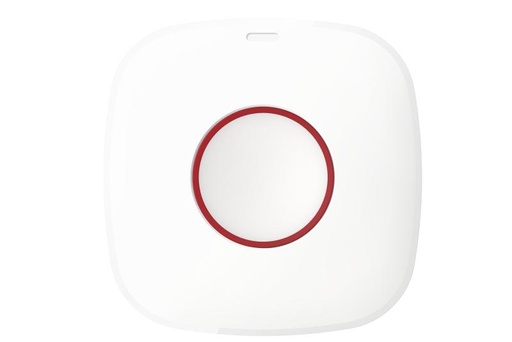

🚨 Quick Emergency Alert Solution

✅ Wireless 868MHz Communication – 100m range (open space) with AES-128 encryption
✅ One-Touch Activation – Instantly triggers alarm/siren/strobe lights
✅ Wall-Mounted or Portable – Includes magnetic bracket for flexible placement
✅ IP43 Rated – Resists dust and water splashes

📊 Technical Specifications

Category Specification
Model DS-PDEB1-EG2-WE
Battery CR123A (3-year lifespan)
Range Up to 100m (line-of-sight)
Compatibility Hikvision AX Pro alarm systems
Dimensions 3.1 × 2.4 × 0.9 in (80 × 60 × 23 mm)
Warranty 2-year limited

**🏢 Ideal For:

✔ Panic situations (hospitals, schools, banks)
✔ Elderly/medical emergency alerts
✔ Retail/store security
✔ Smart home security integration
**📦 What's Included?

Emergency button
Magnetic mounting bracket
Screws & adhesive pads
Quick start guide

"Instant protection at your fingertips—ideal for homes and businesses needing rapid emergency response!"

**⚙️ Pro Tips:

Mount near entry points for easy access
Test monthly to ensure battery/connection
Pair with AX Pro hub for siren/strobe activation

**🔍 Why Choose This Button?

✔ No wiring needed – Simple wireless setup
✔ Dual mounting options – Wall or portable
✔ Encrypted signal to prevent hacking

(Part of Hikvision’s complete AX Pro wireless security ecosystem)

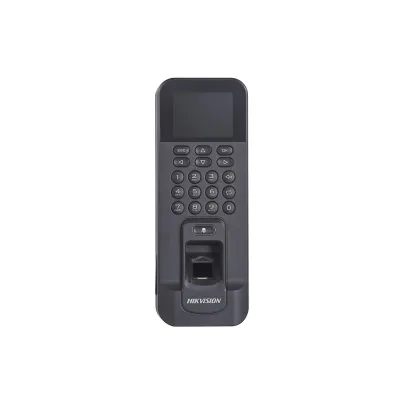

🔒 Advanced Biometric Authentication for Secure Entry

✅ Multi-Mode Verification – Fingerprint (5000 templates), RFID cards, PIN code, or mobile app (Bluetooth)
✅ 0.5s Fast Recognition – Quick and accurate fingerprint matching
✅ 3.5-inch Touchscreen – Intuitive user interface with anti-tamper alarm
✅ Wiegand & RS-485 Output – Compatible with Hikvision and third-party access systems

📊 Technical Specifications

Category Specification
Model DS-K1T804AMF
Fingerprint Capacity 5,000
Card Capacity 10,000 (optional)
Display 3.5" color touchscreen
Communication Wiegand, RS-485, TCP/IP
Operating Temp -20°C to 50°C (-4°F to 122°F)
Warranty 2-year limited

**🏢 Ideal For:

✔ Corporate office access control
✔ Bank/ATM security rooms
✔ Server rooms & high-security zones
✔ Smart home/condo entry systems

**📦 What's Included?

DS-K1T804AMF terminal
Mounting bracket & screws
Quick start guide

"Professional-grade security with flexible authentication options—ideal for businesses and high-risk areas!"

**⚙️ Pro Tips:

Position at 1.2–1.5m height for ergonomic fingerprint scanning
Enable tamper alarm to detect forced removal
Pair with Hikvision access controllers for centralized management

**🔍 Why Choose DS-K1T804AMF?

✔ Higher fingerprint capacity than basic models
✔ Multi-factor authentication for enhanced security
✔ Sleek, vandal-resistant design

*(For face recognition models, see DS-K1T800 series)*

⚡ Reliable Power for Small to Medium Surveillance Systems

✅ 4-Channel Output – Powers up to 4 cameras (12V DC, 1A per channel)
✅ Advanced Protection – Overcurrent | Short Circuit | Overvoltage safeguards
✅ Voltage Boost Mode – Compensates for long cable runs:

Normal (12V) | Long (13.5V) | Extra-Long (15V)
✅ Wide Input Range (150-285V AC) – Stable operation in fluctuating power conditions

📊 Technical Specifications

Category Specification
Model DS-2FA1225-C4
Total Output 48W (12V DC, 1A per channel)
Protections Per-channel fault isolation
Input 150-285V AC, 47-63Hz
Dimensions 5.67 × 3.15 × 1.30 in (144 × 80 × 33 mm)
Warranty 1-year limited

📹 Ideal For:

✔ Small business/retail CCTV systems
✔ Home surveillance setups
✔ Long-distance camera installations (100m+ with voltage boost)

📦 Package Includes:

DS-2FA1225-C4 PSU
1m AC power cord (C4 connector)
Terminal connectors
Quick start guide

"Compact yet powerful—perfect for smaller surveillance systems requiring stable, protected power!"

⚙️ Pro Tips:

Use voltage compensation for long cable runs:
Normal (12V) – Standard distances
Long (13.5V) – 50-100m cables
Extra-Long (15V) – 100m+ cables

Label each channel for easy troubleshooting
Check the green LED for power status

🔍 Why Choose This PSU?

✔ Compact size – Fits in tight spaces
✔ Dedicated per-channel protection – Prevents system-wide failures
✔ Hikvision-optimized – Ideal for IP cameras and DVRs

*(For larger setups, see 8-channel DS-2FA1205-C8 or 16-channel DS-2FA1208-C16 models)*

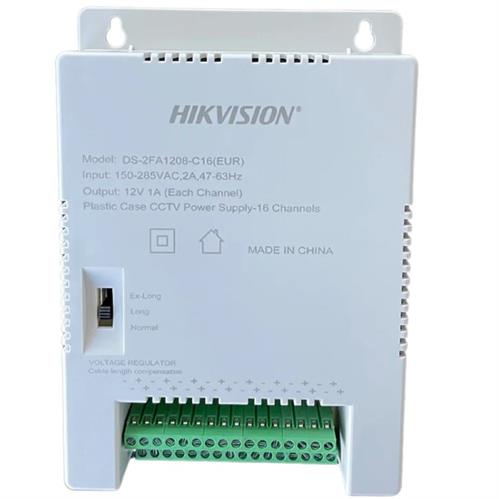

⚡ Professional-Grade Power for Large Surveillance Systems

✅ 16-Channel Output – Powers up to 16 cameras (12V DC, 1A per channel)
✅ Triple Protection – Overcurrent | Short Circuit | Overvoltage safeguards
✅ Voltage Boost Mode – Compensates for voltage drop in long cable runs:

Normal (12V) | Long (13.5V) | Extra-Long (15V)
✅ Wide Input Range (150-285V AC) – Handles unstable power grids

📊 Technical Specifications

Category Specification
Model DS-2FA1208-C16
Total Output 60W (12V DC, 1A/channel)
Protections Per-channel fault isolation
Input 150-285V AC, 47-63Hz
Dimensions 5.67 × 4.31 × 1.30 in (144 × 109.5 × 33 mm)
Warranty 1-year limited

📹 Ideal For:

✔ Large camera arrays (16-channel DVR/NVR systems)
✔ Long-distance cabling (100m+ with voltage boost)
✔ Mission-critical surveillance (banks, warehouses, etc.)

📦 Package Includes:

DS-2FA1208-C16 PSU
1m AC power cord (SA plug)
Terminal connectors
Quick start guide

"The ultimate power backbone for professional CCTV installations—engineered for reliability!"

⚙️ Pro Tips:

Group cameras by distance – Assign higher voltage (13.5V/15V) to longer runs
Test each channel before final installation
Pair with Hikvision cameras for optimized performance

🔍 Why This PSU Stands Out:

✔ True per-channel protection – Faults won't cascade
✔ Voltage compensation eliminates image quality loss
✔ Compact rack-mountable design saves space

*(For smaller setups, see 8-channel DS-2FA1205-C8 model)*

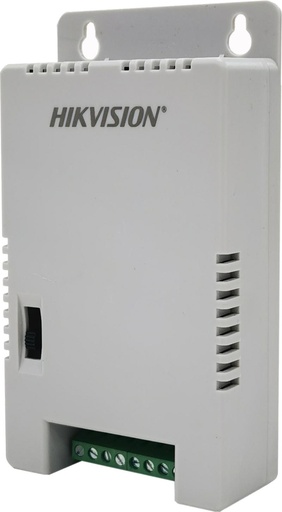

⚡ Reliable Multi-Camera Power Solution

✅ 8-Channel Output – Powers up to 8 cameras (12V DC, 1A per channel)
✅ Advanced Protection – Overcurrent/short circuit/overvoltage safeguards
✅ Wide Voltage Input (150-285V AC) – Stable performance in fluctuating power conditions
✅ Compact & Lightweight – Easy rack/desk mounting

📊 Technical Specifications

Category Specification
Model DS-2FA1205-C8
Input 150-285V AC, 47-63Hz
Output 12V DC, 1A per channel (10A total)
Protections Overcurrent, short circuit, overvoltage
Dimensions 5.67 × 4.31 × 1.30 in (144 × 109.5 × 33 mm)
Warranty 1-year limited

**📹 Ideal For:

✔ Hikvision/IP camera systems
✔ Small to medium surveillance setups
✔ DVR/NVR installations
✔ Long cable runs (voltage compensation up to 15V DC)

**📦 What's Included?

DS-2FA1205-C8 PSU
1m AC power cord (C8 connector)
Grid terminal connectors
Quick start guide

"The perfect power hub for multi-camera setups—ensures stable, protected operation!"

**⚙️ Pro Tips:

Use voltage compensation for long cable runs:

Normal (12V) – Standard distances
Long (13.5V) – 50-100m cables
Ex-Long (15V) – 100m+ cables
Label channels for easy camera identification
Check LED indicator (green = normal operation)

**🔍 Why Choose This PSU?

✔ Dedicated per-channel protection – One camera failure won’t disrupt others
✔ Energy-efficient – Good EMC performance
✔ Hikvision-compatible – Optimized for CCTV systems

*(For higher-wattage needs, consider DS-2FA1205-C16 model)*
