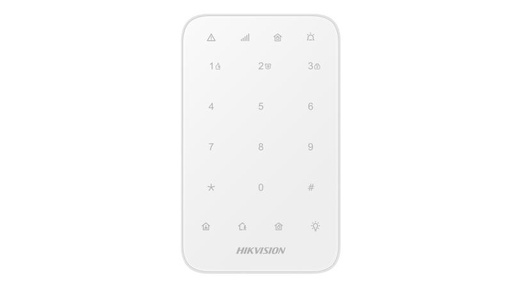

🔒 Secure & Easy-to-Use Alarm System Control

✅ Wireless 868MHz Communication – Reliable two-way connectivity with AES-128 encryption
✅ Full Touch Keypad with LED Backlight – Easy operation in low-light conditions
✅ Remote Configuration via Hik-Connect App – Manage settings from anywhere
✅ Multiple Alarm Modes – Stay/Away arming, panic, fire & medical alerts
📊 Key Features

✔ Easy Installation – Wireless design with replaceable battery
✔ Frequency Hopping – Anti-jamming for stable signal transmission
✔ Zone Control – Arm/disarm specific areas independently
✔ LED Status Indicators – Clear visual feedback
**🏠 Ideal For:

✔ Hikvision AX Pro alarm systems
✔ Smart home security integration
✔ Remote monitoring via Hik-Connect
✔ Quick emergency alerts (panic/fire/medical)
**📦 What's Included?

DS-PK1-E-WE Keypad
Mounting hardware
Quick start guide

"Take control of your security—intuitive wireless keypad for Hikvision AX Pro systems!"

**⚙️ Pro Tips:

Place centrally for easy access in emergencies
Enable silent mode for discreet alarms
Use Hik-Connect app for remote management

**🔍 Why Choose This Keypad?

✔ Secure encrypted communication
✔ Sleek, modern touch interface
✔ Works with AX Pro sensors & detectors

(Part of Hikvision’s complete AX Pro wireless security ecosystem)

🔒 Next-Gen Biometric Security for Turnstiles

✅ AI Face Recognition – 0.3s fast verification with 99% accuracy
✅ Dual-Lens Technology – Wide-angle + IR camera for day/night operation
✅ 10,000 Face Capacity – Ideal for high-traffic areas
✅ Anti-Spoofing Protection – Detects photos, masks, and videos

📊 Technical Specifications

Category Specification
Model DS-K5671-ZV
Recognition Speed ≤0.3 seconds
Face Capacity 10,000
Camera Dual-lens (RGB + IR)
Wiegand Output Supports 26/34-bit formats
Operating Temp -30°C to 60°C (-22°F to 140°F)
Warranty 2-year limited

**🏢 Ideal For:

✔ Office building turnstiles
✔ Metro/airport security gates
✔ University/school access control
✔ Smart city infrastructure

**📦 What's Included?

DS-K5671-ZV module
Mounting brackets
Quick start guide

"Seamless, touchless access control—powered by AI facial recognition!"

**⚙️ Pro Tips:

Mount at 1.5m height for optimal face capture
Enable anti-tailgating in paired turnstile controller
Use with iVMS-4200 for centralized management

**🔍 Why Choose DS-K5671-ZV?

✔ Faster than card/fingerprint systems
✔ Hygienic touchless entry
✔ Integrates with Hikvision turnstiles

*(For standalone terminals, see DS-K1T671TM model)*

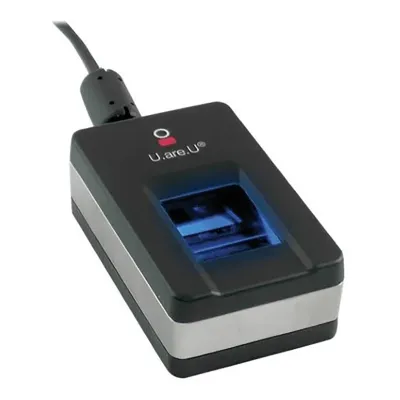

🔒 Enterprise-Grade Fingerprint Authentication for Secure Access

✅ 500 DPI Optical Sensor – High-precision fingerprint recognition
✅ HID DP5300 Compatible – Works with existing access control systems
✅ USB Plug-and-Play – No drivers needed (Windows 7/10/11, Linux)
✅ Compact & Durable – Metal housing for commercial environments
✅ 1-Year Warranty – Reliable biometric security

📊 Technical Specifications

Category Specification
Model BIO-DP-5300 (HID DP5300)
Sensor Type Optical (500 DPI)
Interface USB 2.0
Scan Speed <1 second
FAR/FRR 0.001% / 0.1%
Compatibility Windows, Linux, HID access systems
Dimensions 2.2 x 1.6 x 1.3 inches
Warranty 1-Year Limited

🏢 Ideal For:

✔ Time & Attendance Systems – Replace punch cards with biometric tracking
✔ Secure Access Control – Offices, warehouses, and restricted areas
✔ POS Authentication – Employee login for retail/restaurant systems
✔ Healthcare Facilities – HIPAA-compliant user verification

📦 What's Included?

BIO-DP-5300 Fingerprint Reader
USB Cable (1.5m)
Mounting Screws
Quick Start Guide

"Upgrade to touchless security – fast, accurate, and tamper-proof!"

⚙️ Pro Tips for Deployment:

• For Time Systems: Enroll each finger twice for better recognition
• Positioning: Mount at 45° angle for natural finger placement
• Maintenance: Clean sensor weekly with microfiber cloth
• Integration: Use PinnPOS SDK for custom software solutions

🔍 Why Choose BIO-DP-5300?

✔ Higher Accuracy – Lower false rejection rate than competitors
✔ HID Ecosystem – Works with existing DP5300 installations
✔ Commercial Durability – Rated for 100,000+ scans

*(For wireless models, see BIO-DP-5300W variant)*

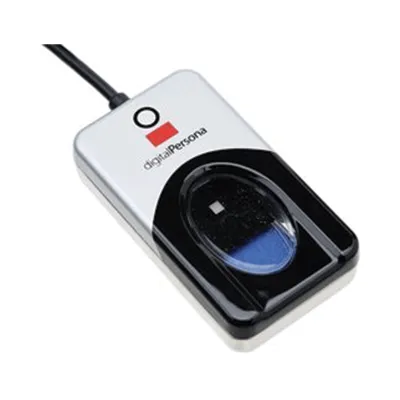

🖥️ Plug-and-Play Security for Businesses & POS Systems

✅ 500 DPI Optical Sensor – High-accuracy fingerprint recognition
✅ 360° Fingerprint Scanning – Works at any angle
✅ USB Plug-and-Play – No drivers needed (Windows/Mac/Linux)
✅ 1-Year Warranty – Reliable biometric authentication

📊 Technical Specifications

Category Specification
Model BIO-DP-4500 (HID DP4500)
Interface USB 2.0
Sensor Type Optical (500 DPI)
Compatibility Windows 7/10/11, macOS, Linux
Dimensions 2.1 × 1.5 × 1.2 in (53 × 38 × 30 mm)
Warranty 1-year limited

🖐️ Compatible With:

✔ POS Systems – Secure transactions & employee logins
✔ Time Attendance – Replace punch cards with biometric tracking
✔ Access Control – Offices, schools, and secure facilities
✔ HID-Compatible Systems – Works with existing infrastructure

📦 What’s Included?

PinnPOS BIO-DP-4500 Fingerprint Scanner
USB cable (1m)
Quick start guide

"Upgrade to touchless security—fast, accurate, and hassle-free biometric authentication!"

⚙️ Pro Tips:

For time attendance systems, pair with software like ZKTeco or BioTime
Clean the sensor regularly with a microfiber cloth for optimal performance
Register multiple fingerprint angles for better recognition

🔍 Why Choose BIO-DP-4500?

✔ No Software Required – Works out of the box
✔ Enterprise-Grade Durability – Built for daily use
✔ HID-Compatible – Integrates with existing security systems

(For SDK integration, check PinnPOS developer documentation)

Ubiquiti's UA-G3-W is an IP55 tamper resistant access reader with speaker for single door access control indoors and outdoors. PoE powers the unit, which connects to a UniFi Access Hub via PoE and can be unlocked using an NFC card or UniFi Identity Mobile App.

Note: This device needs to be paired with UA-HUB-DM

Specifications
Button: Reset
Connectivity: BLE 4.1 or NFC
Ethernet Ports: 1x 10/100
Mounting: In-wall, Gang Box
Operating Temperature: -30 to 45° C
Max Power Consumption: 5W
Power Input: PoE (Not Included), UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
Dimensions: 93 x 40 x 36.5 mm
Weight: 82g

The Ubiquiti UA-G3FLEX-W is an IP55-rated NFC card reader featuring a keypad and Touch Pass support, for which users will receive 10 free Touch Passes in the first year, thereafter, passes are billed annually per user. Powered via PoE, it's designed for seamless integration with UniFi Access Hubs.

Note: This device needs to be paired with UA-HUB-DM

Specifications
Button: Reset
Connectivity: BLE 4.1 or NFC
Ethernet Ports: 1x 10/100
Mounting: Wall-Mount (Included) ; Gang-box, junction box (Optional)
Operating Temperature: -30 to 60° C
Max Power Consumption: 5W
Power Input: PoE (Not Included), UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
Dimensions: 84 x 84 x 40.8 mm
Weight: 165g

Ubiquiti's UA-G3SK-PRO starter kit includes a Door Hub, an IP55 G3 Reader Pro with integrated camera, an IP55 G3 Reader, and 2x Pocket Key fobs. This starter kit provides complete entry and exits control for a single door and includes Touch Pass support, for which users will receive 10 free Touch Passes in the first year; thereafter, passes are billed annually per user. The kit can be configured and managed with the UniFi Access Application.

Specifications
Door Hub
Button: Reset
Terminal Input: 2x Door exit request; 1x Door position; 1x Emergency
Ethernet Ports: 5x 10/100/1000
Lock Terminals: 1x 12V 1A
Mounting: DIN-rail (Included)
Operating Temperature: 0°C to 40°C
Max Power Consumption: 30W
PoE Input: PoE++ (50V DC, 1A)
PoE Output: 4x 802.3af
Power Input: PoE++ ; UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
Supported Doors: 1

Dimensions: 174.9 x 126 x 32.9 mm
Weight: 363g

G3 Reader Pro
Button: Reset
Connectivity: BLE 4.2 or NFC
Ethernet Ports: 1x 10/100/1000
Mounting: Wall, gang-box mount (Included)
Operating Temperature: Device: -30°C to 45°C; Display: -10°C to 45°C
Max Power Consumption: 6W
Power Input: PoE (802.3af, Not Included), UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
Supported Voltage: 48V

Dimensions: 160 x 40.4 x 40.55 mm
Weight: 136g

G3 Reader
Button: Reset
Connectivity: BLE 4.1 or NFC
Ethernet Ports: 1x 10/100
Mounting: Wall, gang-box mount (Included)
Operating Temperature: Device: -30°C to 45°C
Max Power Consumption: 5W
Power Input: PoE (802.3af, Not Included), UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
Supported Voltage: 48V

Dimensions: 93 x 40 x 36.5 mm
Weight: 82g

Ubiquiti's UA-HUB-DM is a compact, indoor, access control hub which when paired with a UniFi Access Reader provides access control for a single door. It features 3x Gigabit Ethernet Ports, one of which accepts PoE++ (802.3bt) input and 2x PoE+ output ports with a total of 31W. The hub also has 2x input terminals for 1x door exit request and 1x door position and can be unlocked using an NFC card or UniFi Identity Mobile App.

Specifications
Button: Reset; Dry/Wet Switch
Bluetooth: None
Input Terminals: 1x Door Exit Request ; 1x Door Position
Ethernet Ports: 3x 10/100/1000
Dry Output Relay: 30V DC 1A
Wet Output Relay: 12V DC 1A
Mounting: DIN-rail (Included)
Operating Temperature: -30 to 40° C
Max Power Consumption: 19W
Power Input: 802.3at (PoE++)(Not Included)
Dimensions: 113 x 66 x 27.6mm
Weight: 190g

Ubiquiti's UA-RESCUE is a single pole, dual throw, manual Key Switch designed to work with the UniFi Access system. In the event of a system malfunction, the UA-Rescue Key Switch allows a user to manually unlock any door controlled by the UniFi Access Hub. The key is compatible with both Fail Safe and Fail Secure lock systems.

Specifications
Key Switch: Brass internal wave key, 28VDC, 4A
Operating Temperature: -30° to 65° C
Terminal block: COM/NO/NC - 18-24 AWG
Dimensions: Ø60 x 74 mm
Weight: 94g

Ubiquiti's UA-Ultra is an IP55 tamper resistant access reader with an integrated hub for complete single door access control. The unit is powered by PoE+ and features 1x Lock terminal (12V/1A), 1x Exit request input and can be unlocked using an NFC card or UniFi Identity Mobile App.

Specifications

Button: Reset
Bluetooth: BLE 4.2
Digital Input: 1x Exit Request
Ethernet Ports: 1x 10/100
Lock Terminals: 1x 12V 1A
Mounting: Wall-Mount or Gang Box Mount
Operating Tempreture: -30 to 40° C
Max Power Consumption: 18W
Power Input: 802.3af/at PoE (Not Included)
Dimensions: 126 x 45 x 37.45mm
Weight: 140g
