The Hikvision DS‑2AE4225TI‑D Turbo Speed Dome Camera is a powerful 2MP analogue PTZ solution designed for professional surveillance. Featuring 1920×1080 resolution and a 25× optical zoom (4.8–120mm) with 16× digital zoom, it delivers sharp detail across wide coverage areas.

Equipped with IR illumination up to 30m, the camera ensures clear imaging in low‑light conditions. Its 360° endless pan and 300 preset positions provide flexible monitoring, while 4 pattern scans allow automated patrols.

Built to withstand harsh environments, the DS‑2AE4225TI‑D is rated IP66 weatherproof with TVS 4kV lightning protection. Powered via 12VDC or PoE+, it offers installation flexibility. Compact at Φ164.5 × 290 mm and weighing 2kg, it is ideal for outdoor and high‑security applications.

Technical Details:

Model / SKU: DS‑2AE4225TI‑D
Resolution: 2MP (1920×1080)
Optical Zoom: 25× (4.8–120mm)
Digital Zoom: 16×
IR Range: 30m
Pan/Tilt: 360° endless pan, multiple tilt angles
Presets: 300 positions, 4 pattern scans
Protection: IP66 weatherproof, TVS 4kV surge protection
Power Supply: 12VDC / PoE+
Dimensions: Φ164.5 × 290 mm
Weight: 2kg
Form Factor: 4" Turbo Speed Dome

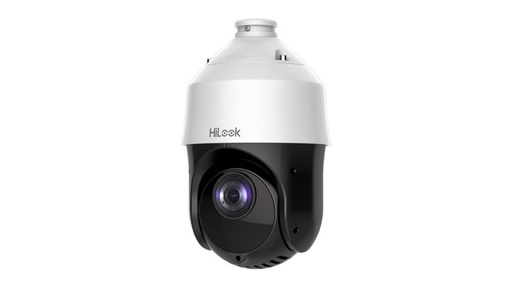

Buy Hikvision PTZ-T4225I-D 2MP 25X Analog Speed Dome – DarkFighter imaging, 100m IR, 120dB WDR, IP66-rated, 4-in-1 signal output. Ideal for outdoor PTZ surveillance.

Short Description:

2MP resolution with 25X optical zoom
DarkFighter tech + 100m IR for night clarity
4-in-1 output: TVI/AHD/CVI/CVBS
IP66-rated, 360° pan, -15° to 90° tilt
Code: PTZ-T4225I-D; 12VDC, max 20W

Long Description:

The Hikvision PTZ-T4225I-D 4-inch 2MP Analog Speed Dome delivers precision surveillance with 25X optical zoom and DarkFighter imaging for low-light clarity. Featuring 120dB true WDR, 100m IR illumination, and 4-in-1 signal output (TVI/AHD/CVI/CVBS), it adapts to diverse analog setups. Its robust PTZ capabilities include 360° endless pan, auto-flip tilt, and up to 256 presets with patrol and pattern scans. IP66-rated for outdoor durability, it’s ideal for perimeter, parking, and municipal installations.

Technical Specifications:

Specification Details
Brand Name Hikvision
Camera Form Factor Dome
Camera Resolution 2MP (1920 × 1080)
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux; B/W: 0.001 Lux; 0 lux w/ IR
Zoom 25X optical, 16X digital
Focal Length 4.8 mm to 120 mm
Aperture F1.6 to F3.5
IR Range Up to 100 m
WDR 120 dB true WDR
PTZ Range Pan: 360° endless; Tilt: -15° to 90°
PTZ Speed Manual: 0.1°–80°/s; Preset: 80°/s
Presets 256
Patrol/Pattern Scans 10 patrols, 5 patterns
Video Output TVI/AHD/CVI/CVBS (BNC)
RS-485 Protocols HIKVISION, Pelco-P/D
Power 12 VDC, max. 20 W
Dimensions Ø165.9 mm × 290 mm
Operating Temp -30°C to 65°C
IP Rating IP66
Warranty Manufacturer standard
