The Ubiquiti UniFi Access Reader Pro Black (UA‑G3‑Pro‑B) is a premium IP55‑rated intercom and access reader designed for seamless integration with UniFi Access Hubs. Featuring a 4.7" touchscreen, face recognition, built‑in NFC card reader, and two‑way audio, it delivers secure, modern, and user‑friendly access control.
With Touch Pass support (10 free passes included in the first year), users can enjoy convenient mobile access, with annual renewals available thereafter. Connectivity options include BLE 4.2, NFC, and Gigabit Ethernet, while 802.3af PoE ensures simple powering with a maximum consumption of just 6W.
Compact at 160 × 40.4 × 40.55 mm and weighing only 136 g, the UA‑G3‑Pro‑B is designed for wall‑mount or gang‑box installation, with optional angle and junction box mounts available. Built to withstand harsh conditions, it operates reliably in temperatures from ‑30°C to 45°C (device) and ‑10°C to 45°C (display).

Technical Details:

Model / SKU: UA‑G3‑Pro‑B
Type: UniFi Access Reader Pro (Black)
Display: 4.7" touchscreen
Features: Face recognition, NFC card reader, Touch Pass support, 2‑way audio
Connectivity: BLE 4.2, NFC, 1 × Gigabit Ethernet
Power Input: 802.3af PoE (not included), max 6W
Mounting: Wall‑mount & gang‑box (included); angle mount & junction box (optional)
Operating Temperature: Device: ‑30°C to 45°C; Display: ‑10°C to 45°C
Protection: IP55 weatherproof
Dimensions: 160 × 40.4 × 40.55 mm
Weight: 136 g

Requirement: Must be paired with UniFi Access Hub

Brand: Hikvision
Product Code / SKU: DS‑KAB673‑FB
Manufacturer Product Code: DS‑KAB673‑FB
Description: Hikvision DS‑KAB673‑FB Bluetooth & Fingerprint Recognition Module – Peripheral module designed for DS‑K1T673 series terminals, enabling secure biometric and Bluetooth authentication.

Product Overview
The Hikvision DS‑KAB673‑FB Module enhances the functionality of the DS‑K1T673 series access control terminals by adding fingerprint recognition and Bluetooth connectivity. This dual‑authentication capability provides flexible and secure access control options, making it ideal for modern workplaces and high‑security environments.

Compact and easy to integrate, the module ensures seamless compatibility with Hikvision terminals while offering reliable performance and user convenience.

Highlights
Peripheral module for DS‑K1T673 series terminals
Adds fingerprint recognition for biometric authentication
Bluetooth connectivity for mobile access control
Secure and flexible multi‑factor authentication
Compact design for seamless integration
Backed by 1‑year manufacturer warranty

Technical Specifications
Feature Details
Product Code / SKU DS‑KAB673‑FB
Brand Hikvision
Model DS‑KAB673‑FB
Compatibility DS‑K1T673 series terminals
Authentication Fingerprint recognition + Bluetooth
Function Peripheral module for enhanced access control
Installation Plug‑in integration with DS‑K1T673
Warranty 1 Year

What’s Included
1 × Hikvision DS‑KAB673‑FB Bluetooth & Fingerprint Module
Integration guide
Retail packaging
Warranty documentation

Brand: Hikvision
Product Code / SKU: DS‑K1201AMF
Manufacturer Product Code: DS‑K1201AMF
Description: Hikvision DS‑K1201AMF Fingerprint & M1 Card Reader – Secure biometric and card‑based access control device with 5,000 fingerprint capacity, USB interface, and compact design.

Product Overview
The Hikvision DS‑K1201AMF Fingerprint & M1 Card Reader is a reliable and secure access control solution that combines biometric fingerprint recognition with M1 card reading technology. Supporting up to 5,000 fingerprint templates, it is ideal for medium to large organizations requiring enhanced security.

Its USB interface ensures easy integration with Hikvision access control systems, while the compact design makes it suitable for both desktop and wall‑mounted use.

Highlights
Fingerprint & M1 card reader for secure access control
Supports up to 5,000 fingerprint templates
USB interface for easy integration
Compact and ergonomic design
Ideal for medium to large organizations
Backed by 1‑year manufacturer warranty

Technical Specifications
Feature Details
Product Code / SKU DS‑K1201AMF
Brand Hikvision
Model DS‑K1201AMF
Fingerprint Capacity 5,000 prints
Card Type M1 card
Interface USB
Function Access control authentication
Installation Desktop or wall‑mounted
Warranty 1 Year

What’s Included
1 × Hikvision DS‑K1201AMF Fingerprint & M1 Card Reader
USB cable (integrated)
User manual
Retail packaging
Warranty documentation

The Hikvision DS-K1109DKB-QR Numeric and Card Reader is a robust access control solution designed for secure outdoor environments. Supporting Mifare DESFire, Felica, and M1 cards, it combines numeric keypad entry with QR code scanning for versatile authentication.

Built with IP65 weatherproof protection, it operates reliably in extreme temperatures from -40°C to 65°C. The device integrates seamlessly with access control systems via Wiegand‑26/34 and RS‑485 interfaces, ensuring compatibility with a wide range of installations.

Compact at 125 × 84.5 × 18 mm, it features a tamper buzzer and LED indicators for enhanced security feedback. Backed by Hikvision’s reputation for reliability, this reader is ideal for commercial, industrial, and residential access control deployments.

Technical Details
Model / SKU: DS-K1109DKB-QR
Type: Numeric + Card + QR Code Reader
Supported Cards: MF DESFire, Felica, M1
Authentication: PIN entry + QR code scanning
Interfaces: Wiegand‑26/34, RS‑485
Power Supply: 12V DC
Operating Temperature: -40°C to 65°C
Protection: IP65 (outdoor weatherproof)
Dimensions: 125 × 84.5 × 18 mm
Features: Tamper buzzer, LED indicators

Ubiquiti's UA-Ultra is an IP55 tamper resistant access reader with an integrated hub for complete single door access control. The unit is powered by PoE+ and features 1x Lock terminal (12V/1A), 1x Exit request input and can be unlocked using an NFC card or UniFi Identity Mobile App.

Specifications

Button: Reset
Bluetooth: BLE 4.2
Digital Input: 1x Exit Request
Ethernet Ports: 1x 10/100
Lock Terminals: 1x 12V 1A
Mounting: Wall-Mount or Gang Box Mount
Operating Tempreture: -30 to 40° C
Max Power Consumption: 18W
Power Input: 802.3af/at PoE (Not Included)
Dimensions: 126 x 45 x 37.45mm
Weight: 140g

Ubiquiti's UA-RESCUE is a single pole, dual throw, manual Key Switch designed to work with the UniFi Access system. In the event of a system malfunction, the UA-Rescue Key Switch allows a user to manually unlock any door controlled by the UniFi Access Hub. The key is compatible with both Fail Safe and Fail Secure lock systems.

Specifications
Key Switch: Brass internal wave key, 28VDC, 4A
Operating Temperature: -30° to 65° C
Terminal block: COM/NO/NC - 18-24 AWG
Dimensions: Ø60 x 74 mm
Weight: 94g

Ubiquiti's UA-HUB-DM is a compact, indoor, access control hub which when paired with a UniFi Access Reader provides access control for a single door. It features 3x Gigabit Ethernet Ports, one of which accepts PoE++ (802.3bt) input and 2x PoE+ output ports with a total of 31W. The hub also has 2x input terminals for 1x door exit request and 1x door position and can be unlocked using an NFC card or UniFi Identity Mobile App.

Specifications
Button: Reset; Dry/Wet Switch
Bluetooth: None
Input Terminals: 1x Door Exit Request ; 1x Door Position
Ethernet Ports: 3x 10/100/1000
Dry Output Relay: 30V DC 1A
Wet Output Relay: 12V DC 1A
Mounting: DIN-rail (Included)
Operating Temperature: -30 to 40° C
Max Power Consumption: 19W
Power Input: 802.3at (PoE++)(Not Included)
Dimensions: 113 x 66 x 27.6mm
Weight: 190g

Ubiquiti's UA-G3SK-PRO starter kit includes a Door Hub, an IP55 G3 Reader Pro with integrated camera, an IP55 G3 Reader, and 2x Pocket Key fobs. This starter kit provides complete entry and exits control for a single door and includes Touch Pass support, for which users will receive 10 free Touch Passes in the first year; thereafter, passes are billed annually per user. The kit can be configured and managed with the UniFi Access Application.

Specifications
Door Hub
Button: Reset
Terminal Input: 2x Door exit request; 1x Door position; 1x Emergency
Ethernet Ports: 5x 10/100/1000
Lock Terminals: 1x 12V 1A
Mounting: DIN-rail (Included)
Operating Temperature: 0°C to 40°C
Max Power Consumption: 30W
PoE Input: PoE++ (50V DC, 1A)
PoE Output: 4x 802.3af
Power Input: PoE++ ; UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
Supported Doors: 1

Dimensions: 174.9 x 126 x 32.9 mm
Weight: 363g

G3 Reader Pro
Button: Reset
Connectivity: BLE 4.2 or NFC
Ethernet Ports: 1x 10/100/1000
Mounting: Wall, gang-box mount (Included)
Operating Temperature: Device: -30°C to 45°C; Display: -10°C to 45°C
Max Power Consumption: 6W
Power Input: PoE (802.3af, Not Included), UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
Supported Voltage: 48V

Dimensions: 160 x 40.4 x 40.55 mm
Weight: 136g

G3 Reader
Button: Reset
Connectivity: BLE 4.1 or NFC
Ethernet Ports: 1x 10/100
Mounting: Wall, gang-box mount (Included)
Operating Temperature: Device: -30°C to 45°C
Max Power Consumption: 5W
Power Input: PoE (802.3af, Not Included), UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
Supported Voltage: 48V

Dimensions: 93 x 40 x 36.5 mm
Weight: 82g

The Ubiquiti UA-G3FLEX-W is an IP55-rated NFC card reader featuring a keypad and Touch Pass support, for which users will receive 10 free Touch Passes in the first year, thereafter, passes are billed annually per user. Powered via PoE, it's designed for seamless integration with UniFi Access Hubs.

Note: This device needs to be paired with UA-HUB-DM

Specifications
Button: Reset
Connectivity: BLE 4.1 or NFC
Ethernet Ports: 1x 10/100
Mounting: Wall-Mount (Included) ; Gang-box, junction box (Optional)
Operating Temperature: -30 to 60° C
Max Power Consumption: 5W
Power Input: PoE (Not Included), UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
Dimensions: 84 x 84 x 40.8 mm
Weight: 165g

Ubiquiti's UA-G3-W is an IP55 tamper resistant access reader with speaker for single door access control indoors and outdoors. PoE powers the unit, which connects to a UniFi Access Hub via PoE and can be unlocked using an NFC card or UniFi Identity Mobile App.

Note: This device needs to be paired with UA-HUB-DM

Specifications
Button: Reset
Connectivity: BLE 4.1 or NFC
Ethernet Ports: 1x 10/100
Mounting: In-wall, Gang Box
Operating Temperature: -30 to 45° C
Max Power Consumption: 5W
Power Input: PoE (Not Included), UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
Dimensions: 93 x 40 x 36.5 mm
Weight: 82g

The PinnPOS BIO‑DP‑5300 Fingerprint Scanner is an enterprise‑grade biometric device built on the HID DigitalPersona 5300 core, offering FAP30 certification for compliance and security. Its 500dpi optical sensor captures fingerprints in under 1 second, with industry‑leading accuracy (FAR 0.001%, FRR 0.1%).

Designed for POS authentication, time & attendance, and secure access control, the BIO‑DP‑5300 integrates seamlessly with HID ecosystems and supports Windows and Linux environments via USB plug‑and‑play. The metal housing ensures durability in commercial deployments, rated for 100,000+ scans.

Compact at 56×41×33mm, the scanner is ideal for offices, warehouses, healthcare facilities, and retail systems requiring tamper‑proof biometric verification.

Technical Specifications:

Model / SKU: BIO‑DP‑5300 (HID DP5300)
Certification: FAP30
Sensor Type: Optical, 500dpi resolution
Scan Speed: <1 second capture
Accuracy: FAR 0.001% / FRR 0.1%
Interface: USB 2.0 (USB‑A HID)
Compatibility: Windows 7/10/11, Linux, HID access systems
Durability: 100,000+ scans, metal housing
Dimensions: 56 × 41 × 33 mm (2.2 × 1.6 × 1.3 in)
Warranty: 1‑year limited

The PinnPOS BIO‑DP‑4500 Fingerprint Scanner is a compact, high‑accuracy biometric device built on the HID DigitalPersona 4500 core. Featuring a 500DPI optical sensor with 360° fingerprint capture, it ensures reliable authentication at any angle.

With USB plug‑and‑play connectivity, the BIO‑DP‑4500 works instantly across Windows, macOS, and Linux systems without drivers. Its enterprise‑grade durability makes it ideal for POS systems, time attendance, and access control, seamlessly integrating with HID‑compatible infrastructures.

Lightweight and portable at 53×38×30mm, the scanner is backed by a lifetime warranty, offering long‑term peace of mind for businesses.

Technical Specifications:

Model / SKU: BIO‑DP‑4500 (HID DP4500)
Interface: USB 2.0 (USB‑A, 5V bus‑powered)
Sensor Type: Optical, 500DPI resolution
Capture: 360° fingerprint recognition
Compatibility: Windows 7/10/11, macOS, Linux
Operating Temp: 0–50°C
Dimensions: 53 × 38 × 30 mm (2.1 × 1.5 × 1.2 in)
Weight: ~100g
Warranty: Lifetime manufacturer warranty

Brand: Hikvision
Product Code / SKU: DS‑K5671‑ZV
Manufacturer Product Code: DS‑K5671‑ZV
Description: Hikvision DS‑K5671‑ZV Face Recognition Module – 2MP camera, 7" touch screen, IP65 weatherproof rating, designed for seamless integration with Hikvision turnstiles and access control systems.

Product Overview
The Hikvision DS‑K5671‑ZV Face Recognition Module is a high‑performance biometric access control solution designed for turnstile integration. Featuring a 2MP camera and a 7‑inch touch display, it delivers fast and accurate face recognition for secure entry management.

With its IP65 weatherproof rating, the module is suitable for both indoor and outdoor environments. It supports multiple authentication methods, including face recognition, card, and QR code, making it versatile for modern access control needs.

Highlights
Face recognition module for Hikvision turnstiles
2MP camera for accurate facial capture
7" touch display for user interaction
IP65 weatherproof rating for indoor/outdoor use
Supports multiple authentication methods (face, card, QR code)
Fast recognition speed for efficient access control
Compact design for seamless integration
Backed by 1‑year manufacturer warranty

Technical Specifications
Feature Details
Product Code / SKU DS‑K5671‑ZV
Brand Hikvision
Model DS‑K5671‑ZV
Camera 2MP
Display 7" touch screen
Authentication Face recognition, card, QR code
Weatherproof Rating IP65
Application Turnstile integration
Warranty 1 Year
What’s Included
1 × Hikvision DS‑K5671‑ZV Face Recognition Module
Mounting accessories
User manual
Retail packaging
Warranty documentation

Brand: Hikvision
Product Code / SKU: DS-PK1-E-WE
Manufacturer Product Code: DS-PK1-E-WE

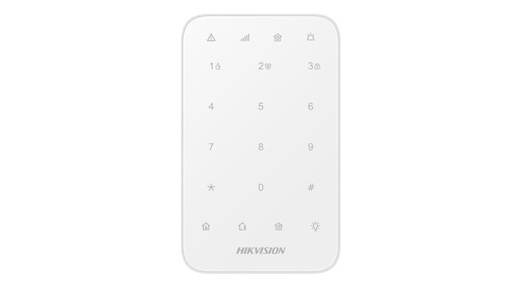

Description: Hikvision AX Pro Wireless Alarm Keypad – designed for secure system control and user-friendly operation. Compatible with AX Pro alarm systems, it provides intuitive access for arming/disarming and integrates seamlessly into modern security setups. Supplied in retail box with manufacturer warranty.

Product Overview
The Hikvision AX Pro Wireless Alarm Keypad offers reliable and secure control for your AX Pro alarm system. With its sleek design and wireless connectivity, it provides convenient access for arming, disarming, and managing system functions.

Compact and easy to install, the keypad is ideal for residential and commercial environments, ensuring enhanced security with user-friendly operation.

Highlights
Wireless alarm keypad for AX Pro systems
Secure access for arming/disarming
Sleek, modern design for discreet installation
Easy integration with Hikvision AX Pro alarm ecosystem
User-friendly interface for quick operation
Retail packaging, manufacturer warranty

Technical Specifications
Feature Details
Product Code / SKU DS-PK1-E-WE
Brand Hikvision
Product Type Wireless Alarm Keypad
Connectivity Wireless (AX Pro system compatible)
Functions Arming, disarming, system control
Colour White
Warranty Manufacturer warranty
Packaging Retail box

What’s Included
1 × Hikvision AX Pro Wireless Alarm Keypad
User manual
Retail packaging

✅ Gross Shipping Weight: Approx. 0.5–0.8 kg including packaging
