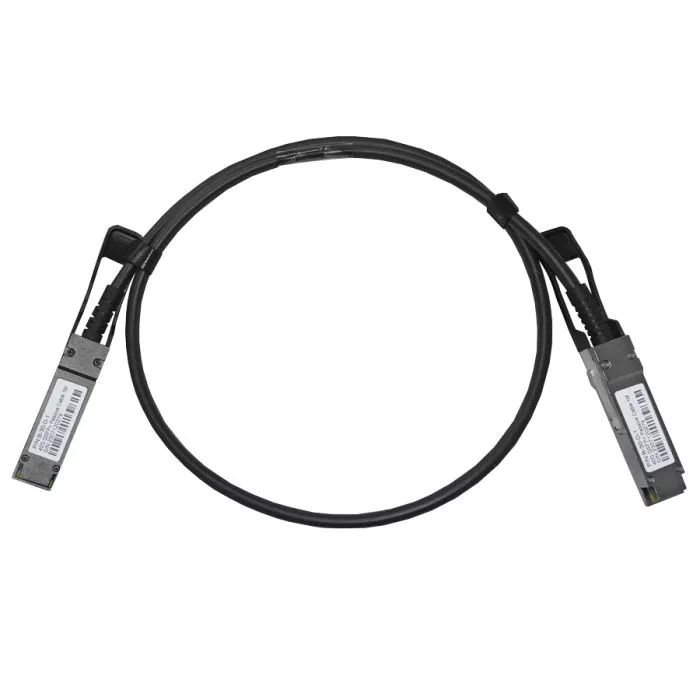

Linkbasic's SFP-DQ1 DAC offers up to 40 Gbps bandwidth capacity. With low power consumption, the unit provides a cost-effective method to establish a 40G link between QSFP+ ports in uplink scenarios.
SKU SFP-DQ1
Manufacturer Linkbasic
Manufacturer Product Code B-30-D-1

Specifications

Cable Length: 1M
Connectors: 2x SFP Modules
Data Rate: 40Gbps
Form Factor: Direct Attached
Mode: Copper
Wavelength: None

UltraLAN QSFP+ 40G DAC Cable - 1meter
RoHS Compliant 40Gb/s QSFP+ TO QSFP+ Copper Cable Assembly
The UltraLAN QSFP+ to QSFP+ Passive cable assemblies are high performance and cost effective QSFP+ equipment interconnect cables . The hybrid cables are compliant with SFF-8436 and SFF-8431 specifications.
These DAC cables are ideal for short distance interconnect applications, such as linking high speed core switches or telecom routers together in a rack/cabinet. While still having a low power consumption, these cables provide an aggregated data rate of 40Gb/s.
Product Applications:
High capacity I/O in SAN (Storage Area Networks), NAS (Network Attached Storage), and Storage Servers
Switched fabric I/O such as ultra high bandwidth switches and routers
Data center cabling infrastructure
High density connections between networking equipment
Product Features:
Support for multi-gigabit data rates up to 40Gbps
Hot-pluggable QSFP+ footprint
Available in lengths of 0.5,1, 2, 3, 5 m
Metal with lower EMI
Low Power Consumption < 0.5W
Power Supply :+3.3V
Compatible to QSFP+ MSA standards
Temperature Range: 0~ 70 ° C
UltraLAN Part Code Matrix:

UltraLAN QSFP Module - 40G MM 150m 850nm


UltraLAN's FIB-SFP-ULSQ854XM-CDS1 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications.


It integrates four data lanes in each direction with 40 Gbps bandwidth.one version is Each lane can operate at 10.5Gbps up to100m using OM3 or 150m using OM4 Multimode fiber,another version is Each lane can operate at 10.5Gbps up to300m using OM3 or 400m using OM4 Multimode fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm.


The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates proven circuit and VCSEL technology to provide reliable longlife, high performance, and consistent service.


Product Applications:

40GBASE-SR4 40G Ethernet
Data communication/Telecoms switches & router connections
Data Aggregation and Backplane Applications
Proprietary Protocol and High Density Applications
Infiniband transmission at 4CH SDR, DDR and QDR
Other optical links


Product Features:

Supports 1.06 to 10.5Gb/s bit rates per Channel
Four-Channel ,1x12 MPO receptacle
Hot pluggable QSFP+ form factor
VCSEL 850nm array Technology
Applicable for 100m on OM3 MMF, 150m on OM4 MMF.
Built-in digital diagnostic functions
Low power consumption, < 1.5W
Unretimed XLPPI electrical interface
Operating case temperature: -5°C to 80 °C
