MikroTik's RB-4011SRM is a 4-core rack-mount router featuring 10x Gigabit Ethernet Ports, 1x 10Gbps SFP+ port and IPsec hardware acceleration. It is powered by either Passive PoE or DC Jack and can provide PoE Passthrough on Port 10.

*Note: The RB-4011SRM does not support Passive DAC's, 1GB copper SFP modules or SFP GPON modules. It is compatible with our SFP-AOC5.

Specifications

Ethernet Ports: 10x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 18W
Mounting: Desktop & Rackmount
Operating System: Router OS (Level 5 License)
Operating Temperature: -40°C to 70°C
PoE Input: 18V-57V (Passive PoE)
PoE Output: 18V-57V Passive PoE on Port 10 (Max 600mA @ 18-30V & 420mA @ 30-57V)
Power Input: 24V 1.5A Power Supply (Included)
Processor: 4 Core, up to 1.4GHz AL21400
Serial Interface:1x RJ45 Serial Port
SFP Ports: 1x 10Gbps
Supported Voltage Range: 12V-57V
System Memory: 1GB
USB Ports: None
Other: None
Dimensions: 228 x 120 x 30m

Ubiquiti's UF-WIFI is a robust, high-performance GPON CPE. It features an LED display, 4x Gigabit Ethernet ports, 1x SC APC port and 2.4GHz WiFi connectivity. It provides powerful Layer 2/3 management features. The unit can be powered using 24V Passive PoE on Port 1, or by a 24V power supply.

It can be managed via the UISP network management platform.

Specifications

Antenna Gain: 1dBi
Beam-width: 360°
Data Rate: 300Mbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Desktop
Operating System: UFiber
Operating Temperature: -10°C to 45°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20V-28V
USB Ports: None
Other: 1x 2.5/1.25Gbps SC APC GPON
Dimensions: 126.34 x 126.09 x 31.65mm
Weight: 190g

Ubiquiti's UF-LOCO is a robust, high-performance GPON CPE that features extremely low power consumption and a choice of 24V passive PoE or Micro-USB power methods. It supports GPON links of up to 20km. The UF-LOCO integrates with the UF-OLT4 and UF-OLT and provides powerful Layer 2/3 management features.

It can be managed via the UISP network management platform.

For third-party compatibility, Ubiquiti has provided the following guide: OLT Compatibility Guide.(https://help.ui.com/hc/en-us/articles/115009335068-UISP-Fiber-Supported-Third-Party-OLTs)

Specifications

Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 3.5W
Mounting: Desktop
Operating System: UFiber
Operating Temperature: -10°C to 45°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 5V 1A Micro USB Power Supply (Included)
Processor: MIPS32; 240 MHz
Serial Interface: None
SFP Ports: 1x 2.5/1.25Gbps SC APC GPON
Supported Voltage Range: 24V Passive PoE or 4.7 – 5.3VDC
System Memory: 128 MB DDR3
USB Ports: None
Dimensions: 76.5 x 76.5 x 26.4mm
Weight: 77g

Ubiquiti's UF-OLT-4 is a fibre solution that anyone can deploy. No command lines, manuals or paid support licenses are required. UISP offers internet and telecom service providers a cost-effective fibre optic delivery system for Triple Play Services (data, voice, IPTV/VoD). The UISP Fiber OLT 4 features four PON ports to connect up to 512 ONUs. The SFP+ port delivers up to 10 Gbps of uplink connectivity. The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19" wide rack.

It can be managed via the UISP network management platform.

*Note: 1x UF-GP-B+ included.

Specifications

Ethernet Ports: None
Hardware Button: Reset
Max. Power Consumption: 35W
Mounting: Rack-Mount
Operating System: UFiber
Operating Temperature: -10°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included) ; 24VDC (Not Included)
Processor: MIPS 1004kc; 880 MHz Dual Core
Serial Interface: 1x RJ45 Serial Console Port
SFP Ports: 4x 2.5/1.25Gbps GPON Ports ; 1x 10Gbps
Supported Voltage Range: 24V or 100V – 240V
System Memory: 512 MB DDR3; 512 MB NAND
USB Ports: 1x USB 2.0
Dimensions: 299.80 x 258.95 x 42.55mm
Weight: 2.13kg

Ubiquiti's UF-GPC module increases the capacity of your UFiber OLT and allows you to connect with your new customers quickly. The UFiber UF-GPC module is designed for use with the Ubiquiti UISP UFiber GPON OLT (UF-OLT-4).

It can be managed via the UISP network management platform.

Specifications

Connector: 1x SC/UPC
Data Rate: Downstream: 2.5Gbps; Upstream: 1.25Gbps
Form Factor: SFP
Mode: Single Mode
Supported Distance: 20km
Wavelength: 1490nm

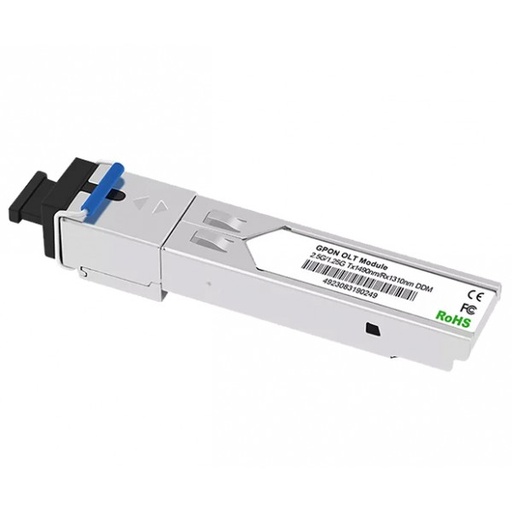

UltraLAN GPON SFP Class C++ SC/UPC for OLT (FIB-SFP-GP-C++)

The UltraLAN GPON SFP Class C++ module is engineered for high-performance Gigabit-capable Passive Optical Networks (GPON), offering seamless integration with Fiber OLT units. With a bi-directional data link supporting 2488Mbps transmit and 1244Mbps receive rates, this module features a compact SC/UPC connector, operates within a temperature range of 0 to 70°C, and is powered by a single 3.3V supply. Designed for reliability, it includes advanced digital diagnostics, low EMI, and robust ESD protection, all while adhering to stringent safety and compliance standards. Enhance your network's efficiency with this cutting-edge SFP module.

Applications:

• Gigabit-capable Passive Optical Networks (GPON)

Features:

• Single fiber bi-directional data links asymmetric TX 2488Mbps/RX1244Mbps application

• 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver

• Small Form Factor Pluggable package with SC/UPC Connector

• 0 to 70°C operating temperature

• Single 3.3V power supply

• Digital diagnostic monitoring interface

• Digital burst RSSI function to monitor the input optical power level

• LVPECL compatible data input/output interface

• LVTTL transmitter disable control

• LVTTL transmitter laser fault alarm

• Fast LVTTL receiver Signal Detect (SD) indication response

• Low EMI and excellent ESD protection

• Class I laser safety standard IEC-60825 compliant

• RoHS6 Compliance

Standards:

• Complies with SFP Multi-Source Agreement (MSA) SFF-8074i

• Complies with ITU-T G.984.2 Amendment 1

• Complies with FCC 47 CFR Part 15, Class B

• Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

• Complies with SFF-8472

• Compatible with TR-NWT-000870 4.1 ESD sensitivity classification Class2.

• Compatible with Telcordia GR-468-CORE

UltraLAN GPON ONT (HGU - SC/APC)

A robust, high-performance Fiber GPON CPE that features extremely low power consumption with fast bandwidth speeds. Supports GPON links of up to 20km, with a max downstream speed of 2.5Gbps, and upstream rate of 1.25Gpbs. The ONT is compatible with major 3rd party vendor's OLT units. This is a HGU (Home Gateway Unit) ONT.

Features:

GPON mode (can access GPON OLTs).
Plug and play, integrate auto detection, auto configuration and auto firmware upgrades.
Support downstream 2.5Gbps and upstream 1.25Gbps with transmission distance to 20km.
Fiber access and gigabit port provide incredibly fast transfer speeds.
Supports OMCI (ONT Management Control Interface) remote management.
Support IPv4/ IPv6 IGMP snooping and MLD snooping.
Support bridge, route and bridge/route mixed mode.


Differences between SFU and HGU ONT's:

SFU ONT HGU ONT Type of PON EPON / GPON EPON / GPON
EPON/GPON Standard IEEE 802.3/802.3ah ITU-TG.984.x IEEE 802.3/802.3ah ITU-TG.984.x
Bridging /Routing Bridging/L2 Bridging/L2 and Routing/L3
WAN Configuration Not Supported Supported
TR069 Function Not Supported Supported
OLT to configure its Ethernet Ports Supported Not Supported
NAT Function Not Supported Supported
Port Forwarding Function Not Supported Supported
Loop Detection Function Supported Not Supported
DHCP Server Not Supported Supported

Specifications:

Distance
20km Maximum
Data Rates
Upstream rate 1.25Gbps
Downstream rate 2.5Gbps
PON TX Power
1~5dBm (1310nm)
PON RX sensitivity
<-28dBm (1490nm)
Power
≤ 3W
Interfaces
1x SC/APC PON (Passive Optical Network) Port
1x 10/100/1000Mbps LAN port
Buttons
Reset Button
Power Supply
DC 12V 0.5A
Operating Temperature
-10°C~50°C
Storage Temperature
-40°C~70°C
Operating Humidity
10%~90%, non-condensing
Storage Humidity
5%~90% non-condensing
WAN Type
Dynamic IP/Static IP/PPPoE
DHCP
Server, Client, DHCP Client List, Address Reservation
Quality of Service
Bandwidth Control
Port Forwarding
Virtual Server, Port Triggering, UPnP, DMZ
VLAN
Port-based VLAN, IEEE802.1Q VLAN
Access Control
Local Management Control, Host List, Access Schedule, Rule Management
Route
Support NAT, Support PPPOE, Support Server Client, Support Route
Firewall Security
DoS, SPI Firewall, IP Address Filter/MAC Address Filter, Domain Filter, IP and MAC Address Binding

Ubiquiti's UF-OLT is a fibre solution that anyone can deploy. No command lines, manuals or paid support licenses are required. The UISP Fiber UF-OLT features 8x PON ports to connect up to 1024 ONUs (128x ONUs per port), 2x SFP+ ports and 2x Gigabit Ethernet Management ports. The unit also features 2x Hotswap AC/DC PSUs for power redundancy.

It can be managed via the UISP network management platform.

*Note: 1x UF-GP-B+ included.

Specifications

Ethernet Ports: 1x 10/100/1000 (Management Port)
Hardware Button: Reset
Max. Power Consumption: 40W
Mounting: Rack-Mount
Operating System: UFiber
Operating Temperature: -10°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included) ; 24V DC (Not Included)
Serial Interface: 1x RJ45 Serial Console Port
SFP Ports: 8x 2.5/1.25Gbps GPON Ports; 2x 10Gbps SFP+
Supported Voltage Range: 100V – 240V
USB Ports: 1x USB 2.0
Dimensions: 442.4 x 285.6 x 43.7 mm
Weight: 4.5kg

Ubiquiti's UF-WIFI6 is a dual band, WiFi 6 (802.11ax) GPON CPE. It features an LED display, 4x Gigabit Ethernet Ports, 1xSC APC GPON WAN port and provides powerful Layer 2/3 management features. The unit is capable of distances of up to 20km with speeds of up to 2.4Gbps downstream and 1.2Gbps upstream. The UF-WIFI6 can be powered by either the included 5V 3A USB-C or 24V Passive PoE.

It can be managed via the UISP network management platform.

Specifications
Antenna Gain: 2.4GHz: 1dBi ; 5.8GHz: 3dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps ; 5.8GHz: 1.2Gbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 11W
Mounting: Desktop
Operating System: UFiber
Operating Temperature: -15°C to 45°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 5V 3A USB-C (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 10-30V Passive PoE ; 5VDC USB-C
USB Ports: None
Other: 1x 2.5/1.25Gbps SC APC GPON
Dimensions: 140.8 x 141.5 x 31.65 mm
Weight: 415g

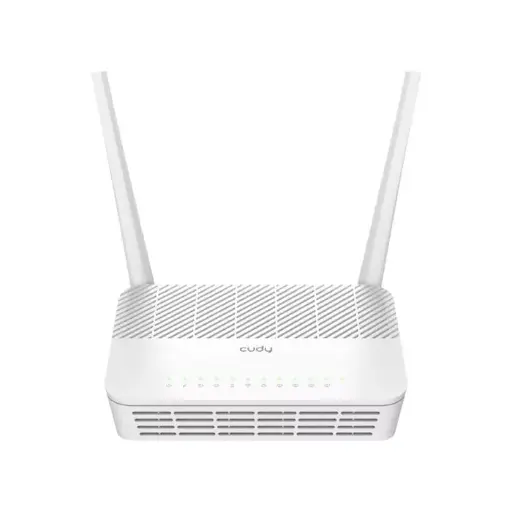

Cudy's CD-GP1200 is an xPON WiFi 5 router featuring 4-Stream dual-band WiFi 5, 1x SC/APC Slot, 4x Gigabit Ethernet Ports, GPON/EPON dual modes, CWMP, OMCI, 4-queue QoS, and Easy Mesh.

Specifications

Antenna Gain: 2x 5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps; GPON: 2.488Gbps Downstream / 1.244Gbps Upstream
EPON: 1.25 Gbps Downstream / Upstream
Ethernet Ports: 4x 10/100/1000
Hardware Button: Power, Reset, WPS, Wi-Fi On/Off
Max. Power Consumption: 9.6W
Max Transmission Distance: 20km
Mounting: Desktop or Wall-mount
Operating System: Cudy
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None
Wavelength: TX: 1310nm; RX: 1490nm
Dimensions: 173 × 123.8 × 33mm
Weight: 288g
