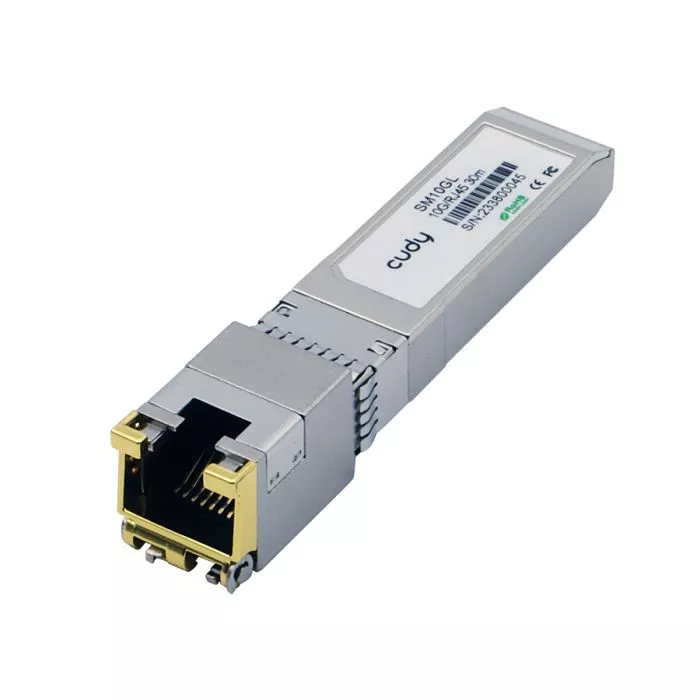

Cudy's CD-SFP-RJ45P is a 10Gbps SFP+ to 10Gbps RJ45 module. Easily upgrade your network to 10Gbps using devices with existing SFP+ ports.

*Note: CD-SFP-RJ45P does not support auto negotiation. We only recommend using this model on SFP+ devices.

Specifications

Connector: RJ45
Data Rate: 10Gbps
Form Factor: SFP
Mode: Copper
Supported Distance: 10Gbps at 30m and up to 1Gbps at 100m
Wavelength: None

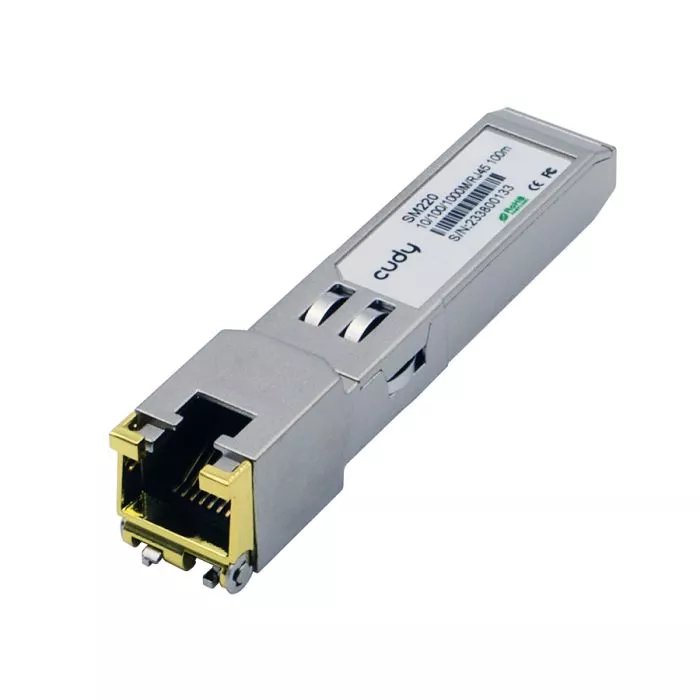

Cudy's CD-SFP-RJ45 is a 1.25Gbps SFP+ to Gigabit RJ45 module allowing for easy conversion of existing SFP Ports to Gigabit Ethernet Ports.

Specifications

Connector: RJ45
Data Rate: Gigabit
Form Factor: SFP
Mode: Copper
Supported Distance: 1Gbps at 100m
Wavelength: None

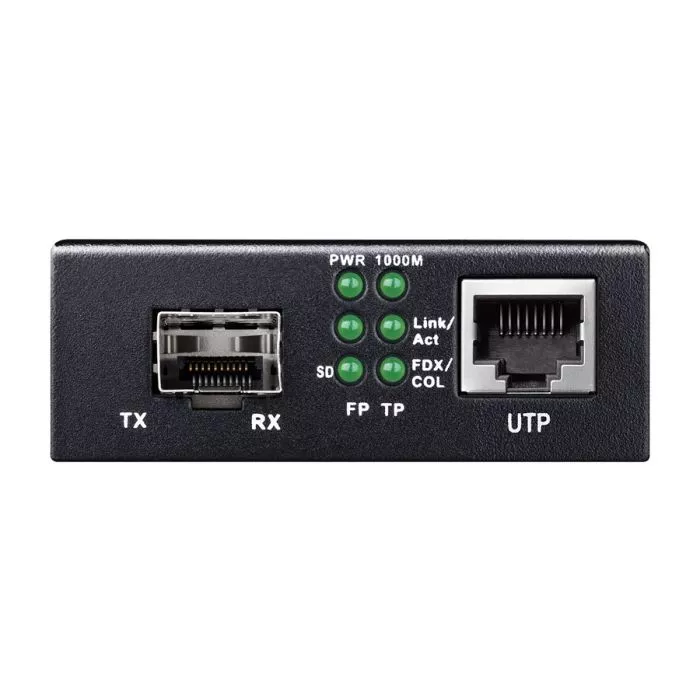

Cudy's CD-MC220 is a Gigabit Ethernet to Fibre media converter. The unit supports both half and full duplex and includes support for jumbo frames up to 9 KB.

*Note: SFP module sold separately.

Specifications

Ethernet Ports: 1x 10/100/1000
Max. Power Consumption: 3W
Operating Temperature: -40°C to 70°C
PoE Input: None
PoE Output: None
Power Input: 5V 1A Power Supply (Included)
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 5V 1A

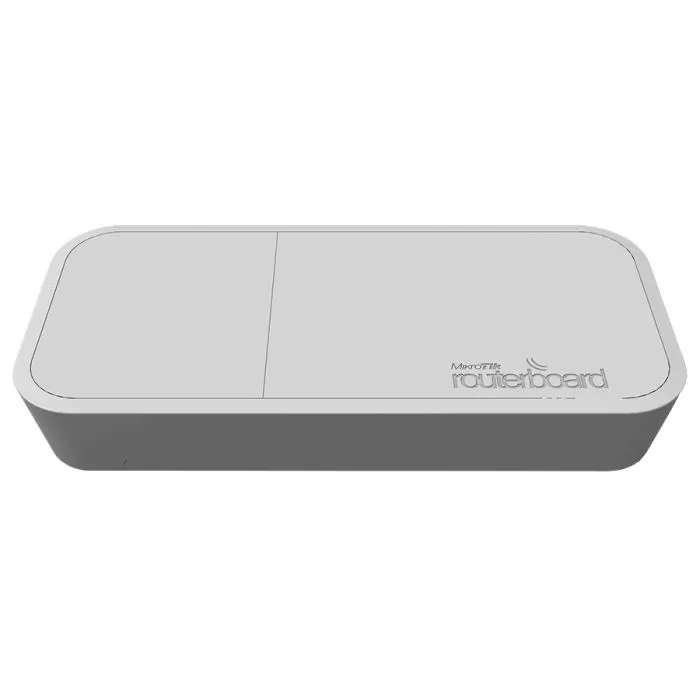

MikroTik's RB-FTC is a Gigabit Fiber to Copper converter. Unlike many other media converters available on market, FTC has an outdoor waterproof case with lock screw.

The device supports 12-57V PoE with 802.3af/at. It is supplied with a PoE injector and power supply. The case has a mounting system that is secured by a screw from inside the lockable case, making the device hard to access by unauthorized individuals.

*Note: SFP module sold separately.

SKU RB-FTC
Manufacturer MikroTik
Manufacturer Product Code RBFTC11

Specifications

Ethernet Ports: 1x 10/100/1000
Max. Power Consumption: 3W
Operating Temperature: -40°C to 70°C
PoE Input: 12V-57V (Passive PoE, 802.3af/at)
PoE Output: None
Power Input: 24V 0.3A Power Supply (Included)
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 12V-57V
Dimensions: 185 x 85 x 30mm

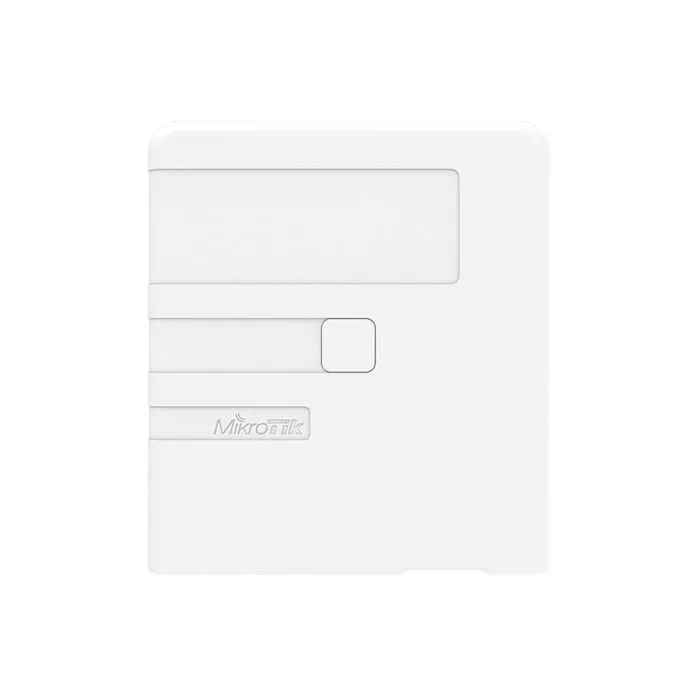

MikroTik's RB-GPEN21 is a smart media converter with PoE pass-through running SwOS. It provides a range of useful software features such as Interface management and monitoring, GPEN link fault detection, VLAN support, SNMP reporting and Basic traffic shaping. This unit has 2 Gigabit Ethernet ports as well as an SFP port for fiber connectivity. The RB-GPEN21 can be used either to power a fiber module or to provide PoE to power an Ethernet uplink using RB-GPER.

*Note: Power supply not included.

SKU RB-GPEN21
Manufacturer MikroTik
Manufacturer Product Code GPEN21
GPEN Concept
Label - Redfern 39UP

Specifications

Ethernet Ports: 2x 10/100/1000
Hardware Button: Mode
Mounting: Wall-Mount
Operating System: SwOS
Operating Temperature: -20°C to 70°C
PoE Input: 802.3af/at
PoE Output: 12V-57V Passive PoE
Power Input: Passive PoE
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 12V-57V
Dimensions: 92 x 104 x 24mm

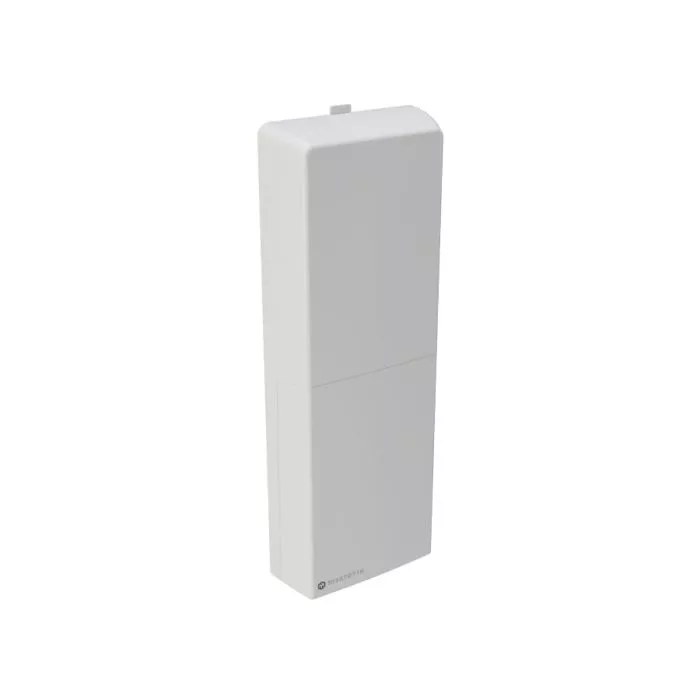

MikroTik's RB-FTCXG is a 10Gbps Fibre to Copper converter with an IP55 outdoor waterproof case with lock screw. The unit runs a full version of SwOS Lite, and has its own switch-chip, allowing you to perform a variety of tasks such as VLAN support, SNMP reporting and basic traffic shaping.

The device supports 43-57V 802.3bt PoE input and is supplied with a PoE injector and 48V power supply.

*Note: SFP module sold separately.

SKU RB-FTCXG
Manufacturer MikroTik
Manufacturer Product Code FTC11XG

Specifications

Ethernet Ports: 1x 10/100/1000; 1x 10/100/1000/10000
Max. Power Consumption: 9W
Operating Temperature: -40°C to 70°C
PoE Input: 43V-57V (802.3bt)
PoE Output: None
Power Input: 48V 0.95A Power Supply (Included)
SFP Ports: 1x 10Gbps
Supported Voltage Range: 18V-57V
Dimensions: 254 x 97 x 35 mm

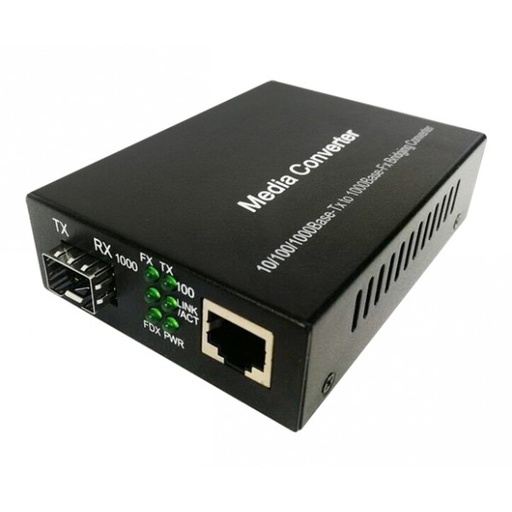

UltraLAN Fiber to Gigabit RJ45 Converter

The UltraLAN FIB-MCGSFP is a media converter designed to convert fiber to 10/100/1000Base-T copper media or vice versa. The UltraLAN media converters are compatible with a wide range of transceiver modules, such as general 1000Base SFP transceiver modules, BiDi transceiver modules, CWDM transceiver modules, etc. The media converter is unmanaged and requires no configuration, simply plug-and-play.

Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX standards, the FIB-MCGSFP is designed for use with multi-mode or single-mode fiber SFP modules. The fiber media converter supports 850nm/1310nm/1550nm wavelengths depending on the SFP module that is inserted. Other features of this media converter include Auto MDI/MDI-X for TX port and status LED's (Link speed, Link activity, Power).

Product Features:

Gigabit copper to fiber conversion: 10/100/1000Base-T-to-1000Base-X
SFP design: For flexibility, an SFP (Mini-GBIC) slot is provided for the fiber port to support any type of SFP fiber transceiver when needed.
Supports full wire speed copper-to-fiber conversion
Auto MDI/MDI-X detection function on the copper port
Auto-negotiation support
Plug and play: no configuration settings is required
Low power consumption

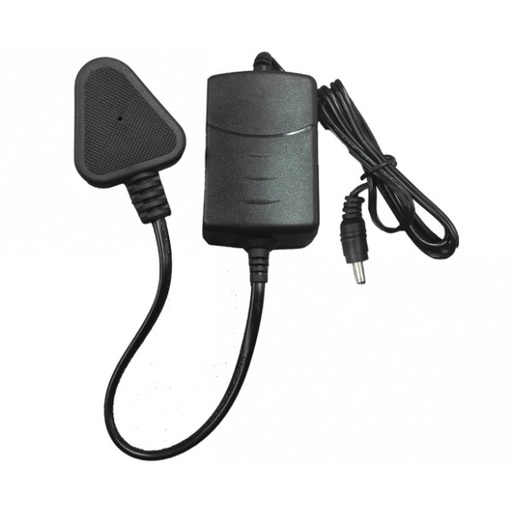

UltraLAN Fiber to Gigabit Converter PSU (5V 2A)

This power supply is intended for use with the UltraLAN Fiber to Gigabit Ethernet convertor.
Features a SA 3pin power plug on side, and a DC barrel on the other.

Product Specifications

Input Voltage: 100-250 V AC
Input Frequency: 50-60Hz 0.28A
Output Voltage: 5V DC 2.0A
SA 3pin power plug
DC Barrel on output of PSU

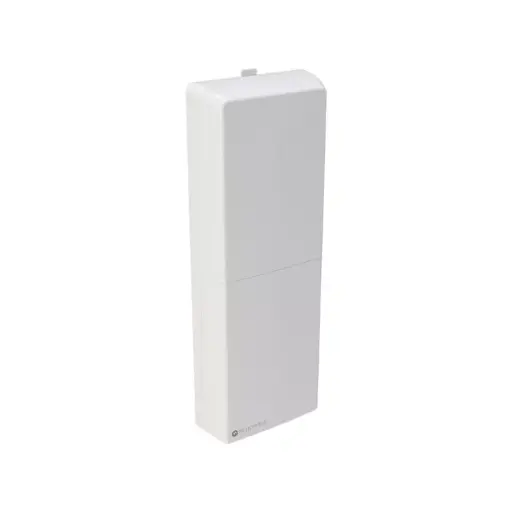

MikroTik's RB-FTC21 is a weatherproof IP55 Fibre-to-Copper converter with smart management capabilities featuring 2x Gigabit Ethernet Ports and 1x 2.5Gbps SFP Port. The RB-FTC21 runs a full version of SwOS Lite, offering advanced management features and comes with everything you need for installation, including a 48V power adapter, a PoE injector, and a ceiling mount and fastening set.
SKU RB-FTC21
Manufacturer MikroTik
Manufacturer Product Code FTC21

Specifications

Ethernet Ports: 2x 10/100/1000
MaxPower Consumption: 3W
Operating Temperature: -40°C to 70°C
PoE Input: 24-57V (Passive PoE, 802.3af/at)
PoE Output: None
Power Input: 48V 0.95A Power Supply (Included)
SFP Ports: 1x 2.5Gbps
Supported Voltage Range: 24-57V DC & PoE
Dimensions: 254 x 97 x 35 mm
