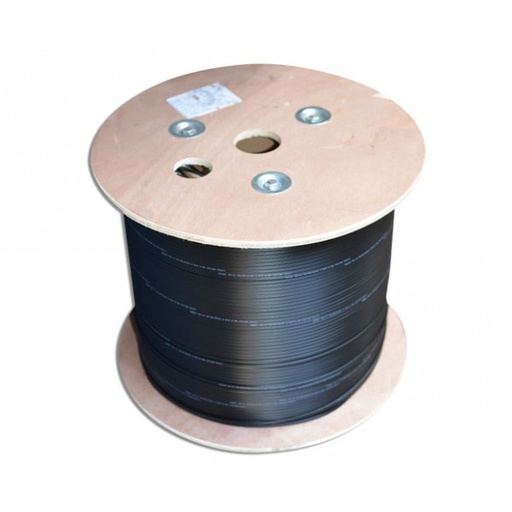

UltraLAN Fiber Drop Cable (Round, Gel Filled) - 2 Core

This UltraLAN fiber cable is a gel filled, Single Mode, G657A1, 2 core fiber cable for FTTX applications. The outer jacket is 3.8mm and made from UV resistant HDPE material suitable for both indoor and outdoor installations.
Supplied on a wooden drum in 2000m length.

Key Features:

Fiber Count: 2 core (G.657A2 single-mode)

Jacket Material: UV-resistant black HDPE

Strength Member: High-tensile aramid yarn

Loose Tube: Gel-filled for moisture protection

Cable Diameter: Approx. 3.8 ± 0.2mm

Weight: 12kg/km


Optical Performance:

Attenuation: ≤0.35 dB/km @1310nm, ≤0.22 dB/km @1550nm

Mode Field Diameter: 9.2μm @1310nm, 10.4μm @1550nm


Mechanical Ratings:

Tensile Strength: 150N (long-term), 300N (short-term)

Crush Resistance: 300N/10cm (long-term), 650N/10cm (short-term)

Bend Radius: 10D static / 20D dynamic

Operating Temperature: -40°C to +70°C


Ideal for outdoor drop connections, this cable delivers excellent protection, flexibility, and reliability in all climates.

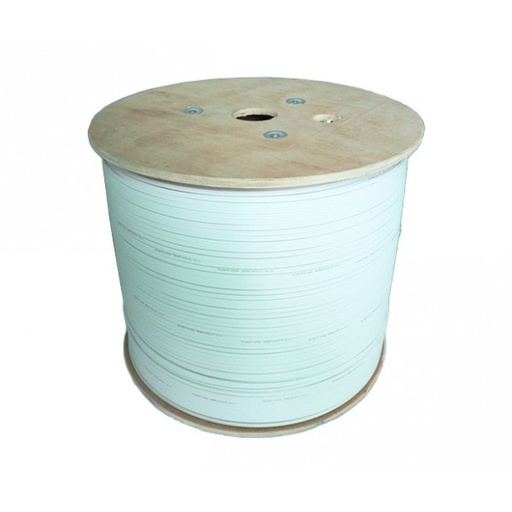

This UltraLAN fiber cable is a 'Bow Type' Single Mode, G657A2, bend-insensitive, 2 core fiber cable for FTTX applications. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material suitable for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to provide support, resulting in better pull strength and resistance when bending around corners. With a white outer jacket, the cable blends into indoor home or office environments better.

Short Description:

Bend-insensitive G657A2 single-mode fiber
2-core flat “bow” profile with white LSZH jacket
UV-resistant, indoor/outdoor rated, –20 °C to +60 °C
Reinforced with 0.45 mm phosphate wires for pull strength
Supplied on 2000 m wooden drum with sequential metre marks

Key Specifications:

Fiber Type: Single-mode G657A2; bend-insensitive
Core Count & Profile: 2-core; flat “bow” profile (2 × 3 mm)
Jacket Material: White LSZH (Low Smoke Zero Halogen)
Reinforcement: Two 0.45 mm phosphate wires for > 200 N tensile strength
Environmental Rating: UV-resistant; indoor/outdoor; –20 °C to +60 °C
Safety: LSZH for low smoke and halogen-free compliance
Optical Performance:
Attenuation ≤ 0.35 dB/km @ 1310 nm
Attenuation ≤ 0.21 dB/km @ 1550 nm
Minimum bend radius: 5 mm
Packaging: Supplied on 2000 m wooden drum
Drum Specs: Ø 400 × 260 mm; approx. 22 kg
Cutting Aid: Sequential metre marks every 1 m
Gross shipping weight: Approx. 23 kg
Retail pack includes: 2 km drum with sequential markings

Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:
Calculate the most economical shipping option
Contact you with the exact additional charges
Process your order after receiving your confirmation
Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation.

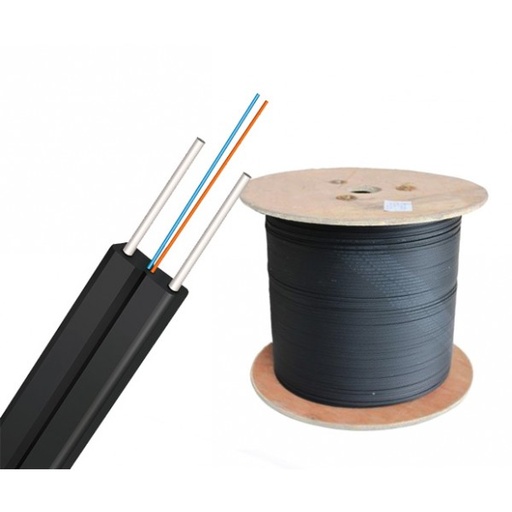

UltraLAN Fiber Bow Type Drop Cable (Black) - 4 Core

This UltraLAN fiber cable is a 'Bow Type' Single Mode, G657A2, bend-insensitive, 4 core fiber cable for FTTX applications. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material suitable for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to provide support, resulting in better pull strength and resistance when bending around corners.
Supplied on a wooden drum in 2000m length.

This UltraLAN fiber cable is a 'Bow Type' Single Mode, G657A2, bend-insensitive, 2 core fiber cable for FTTX applications. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material suitable for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to provide support, resulting in better pull strength and resistance when bending around corners.

Short Description:

Bend-insensitive G657A2 single-mode fiber in a black 2 × 3 mm bow-profile jacket
Two 0.45 mm phosphate wires for > 200 N pull strength and tight-corner stability
UV-resistant, indoor/outdoor rated, LSZH jacket for low smoke and halogen-free safety
Supplied on a 2 km wooden drum with sequential metre marks every 1 m

Key Specifications:

Fiber Type: Single-mode G657A2; bend-insensitive
Core Count & Profile: 2-core; flat bow profile (2 × 3 mm)
Jacket Material: Black LSZH (Low Smoke Zero Halogen)
Reinforcement: Two 0.45 mm phosphate wires for > 200 N tensile strength
Environmental Rating: UV-resistant; indoor/outdoor; –20 °C to +60 °C
Optical Performance: Attenuation ≤ 0.35 dB/km @ 1310 nm; ≤ 0.21 dB/km @ 1550 nm
Bend Radius: Minimum 5 mm
Packaging: Supplied on 2 km wooden drum; sequential metre marks every 1 m
Gross shipping weight: Approx. 22–23 kg
Drum dimensions: Ø 400 × 260 mm

Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:
Calculate the most economical shipping option
Contact you with the exact additional charges
Process your order after receiving your confirmation
Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation.
