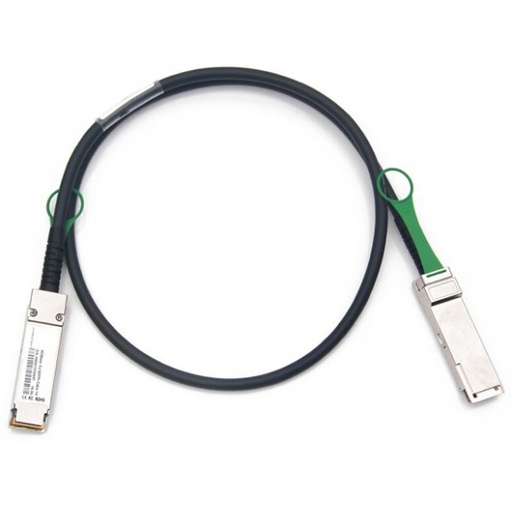

UltraLAN QSFP+ 40G DAC Cable - 1meter
RoHS Compliant 40Gb/s QSFP+ TO QSFP+ Copper Cable Assembly
The UltraLAN QSFP+ to QSFP+ Passive cable assemblies are high performance and cost effective QSFP+ equipment interconnect cables . The hybrid cables are compliant with SFF-8436 and SFF-8431 specifications.
These DAC cables are ideal for short distance interconnect applications, such as linking high speed core switches or telecom routers together in a rack/cabinet. While still having a low power consumption, these cables provide an aggregated data rate of 40Gb/s.
Product Applications:
High capacity I/O in SAN (Storage Area Networks), NAS (Network Attached Storage), and Storage Servers
Switched fabric I/O such as ultra high bandwidth switches and routers
Data center cabling infrastructure
High density connections between networking equipment
Product Features:
Support for multi-gigabit data rates up to 40Gbps
Hot-pluggable QSFP+ footprint
Available in lengths of 0.5,1, 2, 3, 5 m
Metal with lower EMI
Low Power Consumption < 0.5W
Power Supply :+3.3V
Compatible to QSFP+ MSA standards
Temperature Range: 0~ 70 ° C
UltraLAN Part Code Matrix:

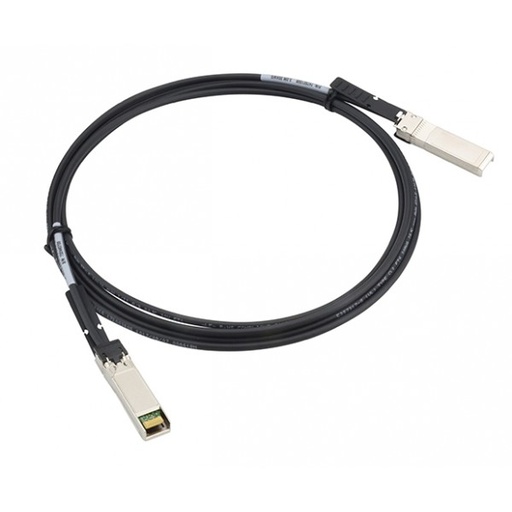

UltraLAN SFP/SFP+ 10G DAC cable - 3meter

The UltraLAN SFP+ cable assemblies are high-performance, cost effective I/O solutions for 10Gb Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufacturers to achieve high port density, configurability and utilization at a very low cost and to reduce power budgets.

These high-speed cable assemblies meet and exceed the performance and reliability requirements stipulated by Gigabit Ethernet and Fiber Channel industry standard.

Product Applications:

High capacity I/O in SAN (Storage Area Networks), NAS (Network Attached Storage), and Storage Servers
Switched fabric I/O such as ultra high bandwidth switches and routers
InfiniBand SDR, DDR, QDR
Data center cabling infrastructure
High density connections between networking equipment
10G Ethernet Data Center rack links

Product Features:

Support for multi-gigabit data rates up to 10.5Gbps
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20 PINs footprint
I/O Connector designed for high speed differential signal applications
Improved Pluggable Form Factor (IPF) compliant for enhanced EMI/EMC performance
Compatible to SFP+ MSA
RoHS compliant
Power Supply :+3.3V
Case operating temperature: 0°C to +70°C

UltraLAN Part Code Matrix:

UltraLAN SFP/SFP+ 10G DAC cable - 1meter

The UltraLAN SFP+ cable assemblies are high-performance, cost effective I/O solutions for 10Gb Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufacturers to achieve high port density, configurability and utilization at a very low cost and to reduce power budgets.

These high-speed cable assemblies meet and exceed the performance and reliability requirements stipulated by Gigabit Ethernet and Fiber Channel industry standard.

Product Applications:

High capacity I/O in SAN (Storage Area Networks), NAS (Network Attached Storage), and Storage Servers
Switched fabric I/O such as ultra high bandwidth switches and routers
InfiniBand SDR, DDR, QDR
Data center cabling infrastructure
High density connections between networking equipment
10G Ethernet Data Center rack links

Product Features:

Support for multi-gigabit data rates up to 10.5Gbps
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20 PINs footprint
I/O Connector designed for high speed differential signal applications
Improved Pluggable Form Factor (IPF) compliant for enhanced EMI/EMC performance
Compatible to SFP+ MSA
RoHS compliant
Power Supply :+3.3V
Case operating temperature: 0°C to +70°C
UltraLAN Part Code Matrix:
