Reyee SFP Transceiver RG-NIS-GE-SFP-10KM-SM1310

The Reyee NIS-GE-SFP-10KM-SM1310 is a high-performance Small Form-Factor Pluggable (SFP) transceiver module designed for reliable long-distance data transmission over single-mode fiber (SMF). With a maximum reach of up to 10 kilometers, this module is ideal for applications requiring extended network coverage, such as campus networks, metropolitan area networks (MANs), and long-haul connectivity.

Key Features:

Supports a gigabit speed of 1000 Mbps for seamless data transmission.
Operates at 1310nm wavelength, optimized for long-distance communication.
Offers transmitter power ranging from -9.5 dBm to -3 dBm and receiver sensitivity down to -20 dBm, ensuring excellent signal quality over extended distances.
Easy integration into existing networks with LC connectors and hot-swappable design for minimal downtime.
Operates efficiently in extreme temperatures, from -40°C to +85°C, and within 10% to 90% relative humidity, making it suitable for industrial environments.


Technical Specifications:

Fiber Type: Single-Mode Fiber (SMF)
Core Size: 9/125 μm
Distance Capability: Up to 10 km (32,808 ft)
Connector Type: LC Duplex
Operating Temperature: -40°C to +85°C (-40°F to +185°F)
Digital Diagnostic Monitoring (DDM): Yes

Brand: UltraLAN
Product Code / SKU: FIB‑SFP‑ULSB355312L‑CD20
Manufacturer Product Code: FIB‑SFP‑ULSB355312L‑CD20
Model: 1G SFP BiDi Module Pair – SM 20KM 1310/1510nm

Description
The UltraLAN 1G SFP BiDi Module Pair (FIB‑SFP‑ULSB355312L‑CD20) is a high‑performance, cost‑effective transceiver solution supporting dual data‑rates of 1.25Gbps/1.0625Gbps and transmission distances up to 20km over single‑mode fibre (SMF).

Each transceiver consists of a FP/DFB laser transmitter, a PIN photodiode integrated with a trans‑impedance preamplifier (TIA), and an MCU control unit. All modules meet Class I laser safety requirements and are fully compliant with SFP Multi‑Source Agreement (MSA) and SFF‑8472 standards.

Note: As these are BiDi SFP modules, they are only sold in pairs.

Highlights
1G BiDi SFP module pair (SMF, 20km)
Supports 1.25Gbps downstream bit rates
Bi‑Directional LC connector interface
Hot‑pluggable SFP footprint
Low power consumption (<0.8W)
Digital Diagnostic Monitor Interface (DDMI)
Very low EMI and excellent ESD protection
Class I laser safety compliant
Manufacturer warranty

What’s Included
2 × UltraLAN 1G SFP BiDi Modules (Pair)
Retail packaging

Free Delivery: Orders with a total cart value above R1,500 qualify for free courier delivery via our eco shipping method (1–3 business days).

Orders Under R1,500 & Regional Areas: Courier fees are calculated automatically at checkout based on your specific postal code and the total weight of your order before payment.

Brand: UltraLAN
Product Code / SKU: FIB-SFP-ULSTMRR-CDS1
Model: Gigabit RJ45 SFP Module – 10/100/1000 Ethernet

Description
The UltraLAN Gigabit RJ45 SFP Module is a high‑performance, cost‑effective copper transceiver designed for Gigabit Ethernet and 1000BASE‑T standards (IEEE 802.3‑2002 / IEEE 802.3ab). Supporting 10/100/1000Mbps full duplex data‑links, it enables seamless connectivity over CAT5 cabling up to 100m.

This hot‑pluggable SFP module uses 5‑level Pulse Amplitude Modulation (PAM) signals, with all four cable pairs active at 250Mbps per pair. Compact and versatile, it is compatible with all vendor devices featuring an SFP slot, making it ideal for enterprise, ISP, and professional networking environments.

Features
Gigabit bi‑directional data links
Compact RJ45 connector design
Hot‑pluggable SFP footprint
Supports 10/100/1000Mbps Ethernet over CAT5 cabling
Transmission distance: up to 100m
Low power consumption (<1.2W)
Access to physical layer IC via 2‑wire serial bus
Compatible with all vendor SFP slots

What’s Included
1 × UltraLAN Gigabit RJ45 SFP Module

Free Delivery:
Orders with a total cart value above R1,500 qualify for free courier delivery via our eco shipping method (1–3 business days).

Orders Under R1,500 & Regional Areas:
Courier fees are calculated automatically at checkout based on your specific postal code and the total weight of your order before payment.

Brand: Ubiquiti
Product Code / SKU: UB‑UF‑SM1GS
Manufacturer Product Code: UF‑SM‑1G‑S
Category: Networking / Fiber Transceivers

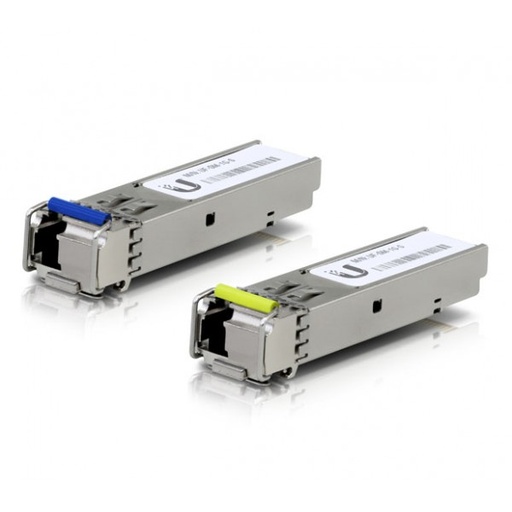

Model: UFiber 1G Single‑Mode LC BiDi SFP Module Pair

Description
The Ubiquiti UF‑SM1G is a single‑mode fiber SFP module pair designed for long‑distance outdoor deployments.

Supporting bi‑directional transmission over LC connectors, these modules enable fiber runs of up to 3km at 1.25Gbps, making them ideal for ISP backhaul, campus networks, and enterprise fiber extensions.

Each kit includes two matched modules (Blue & Yellow) for duplex communication using separate TX/RX wavelengths, ensuring maximum reuse of existing fiber infrastructure.

Highlights
Single‑mode fiber SFP module pair
LC connector type (BiDi)
1.25Gbps data rate
Up to 3km transmission distance
Duplex operation with matched wavelength pair
Compact, lightweight design (0.06kg)
Sold only as a pair kit (two units per box)

What’s Included
2 × Ubiquiti UF‑SM1G Single‑Mode LC BiDi SFP Modules (Blue & Yellow)
Retail packaging

Free Delivery: Orders with a total cart value above R1,500 qualify for free courier delivery via our eco shipping method (1–3 business days).

Orders Under R1,500 & Regional Areas: Courier fees are calculated automatically at checkout based on your specific postal code and the total weight of your order before payment.

Brand: Ubiquiti
Product Code / SKU: UB‑UF‑MM1G
Manufacturer Product Code: UF‑MM‑1G‑S
Category: Networking / Fiber Transceivers
Model: UFiber 1G Multi‑Mode LC BiDi SFP Module Pair

Description
The Ubiquiti UF‑MM1G is a multi‑mode fiber SFP module pair designed for short‑distance outdoor deployments.

Supporting bi‑directional transmission over LC connectors, these modules enable fiber runs of up to 550m at 1.25Gbps, making them ideal for campus networks, enterprise fiber extensions, and ISP distribution.

Each kit includes two matched modules for duplex communication using the same TX/RX wavelength (850nm), ensuring maximum reuse of existing fiber infrastructure.

Highlights
Multi‑mode fiber SFP module pair
LC connector type (BiDi)
1.25Gbps data rate
Up to 550m transmission distance
Duplex operation with matched wavelength pair
Compact, lightweight design
Sold only as a pair kit (two units per box)

What’s Included
2 × Ubiquiti UF‑MM1G Multi‑Mode LC BiDi SFP Modules
Retail packaging

Free Delivery: Orders with a total cart value above R1,500 qualify for free courier delivery via our eco shipping method (1–3 business days).

Orders Under R1,500 & Regional Areas: Courier fees are calculated automatically at checkout based on your specific postal code and the total weight of your order before payment.

Brand: Ubiquiti
Product Code / SKU: UB‑UF‑RJ45‑1G
Manufacturer Product Code: UF‑RJ45‑1G
Category: Networking / SFP Modules
Model: 1Gbps RJ45 Copper SFP Module

Description
The Ubiquiti UF‑RJ45‑1G is a copper SFP transceiver module designed to connect standard Ethernet cables to SFP ports.

Supporting 10/100/1000 Mbps speeds over RJ45 connectors, it enables copper Ethernet runs of up to 100 meters, making it ideal for short‑distance uplinks, lab setups, or legacy device integration.

This module provides seamless compatibility with Ubiquiti switches and other devices supporting 1G SFP slots.

Highlights
Copper SFP transceiver module
RJ45 connector type
Supports 10/100/1000 Mbps speeds
Up to 100m cable distance
Ideal for short‑distance uplinks and legacy integration
Compact, hot‑swappable design

What’s Included
1 × Ubiquiti UF‑RJ45‑1G Copper SFP Module
Retail packaging

Free Delivery: Orders with a total cart value above R1,500 qualify for free courier delivery via our eco shipping method (1–3 business days).

Orders Under R1,500 & Regional Areas: Courier fees are calculated automatically at checkout based on your specific postal code and the total weight of your order before payment.

Brand: Cudy
Product Code / SKU: CD‑SFP‑RJ45
Supplier Code: SM220
Model: SFP to RJ45 Gigabit Ethernet Module

Description
The Cudy CD‑SFP‑RJ45 is a 1.25Gbps copper SFP module designed to convert existing SFP ports into Gigabit RJ45 Ethernet ports. Compact and reliable, it allows seamless integration into switches, routers, and media converters, extending flexibility for mixed fiber and copper deployments. Supporting Gigabit speeds up to 100m, this module is ideal for enterprise and SMB networking environments.

Features
SFP to RJ45 Conversion – Adds Gigabit copper connectivity
1.25Gbps Data Rate – Reliable high‑speed performance
Standard SFP Form Factor – Easy installation in compatible devices
Copper Mode – Supports up to 100m distance
Plug & Play – No configuration required
