UltraLAN SFP Module - Single Mode 1.25G 20KM 1310nm

UltraLAN SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Product Features:

Supports 1.25Gbps/1.0625Gbps bit rates
Duplex LC connector
Hot pluggable SFP footprint
1310nm FP laser transmitter and PIN photo-detector
Applicable for 20Km SMF connection
Low power consumption, < 0.8W
Digital Diagnostic Monitor Interface
Compliant with SFP MSA and SFF-8472
Very low EMI and excellent ESD protection

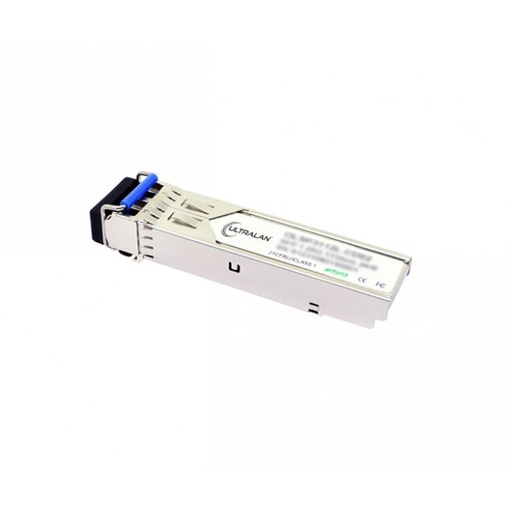

UltraLAN SFP Module - Single Mode 1.25G 10KM 1310nm

UltraLAN SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Product Features:

Supports 1.25Gbps/1.0625Gbps bit rates
Duplex LC connector
Hot pluggable SFP footprint
1310nm FP laser transmitter and PIN photo-detector
Applicable for 10Km SMF connection
Low power consumption, < 0.8W
Digital Diagnostic Monitor Interface
Compliant with SFP MSA and SFF-8472
Very low EMI and excellent ESD protection
Very low EMI and excellent ESD protection

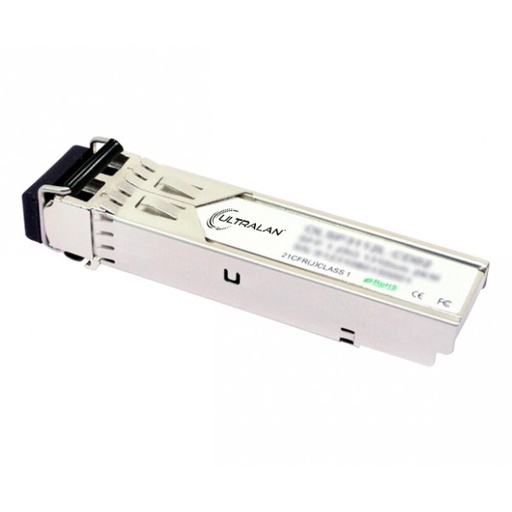

UltraLAN SFP Module - Multimode 1.25G 500m 850nm


The UltraLAN SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF.

The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.

Product Features:

Supports 1.25Gbps/1.0625Gbps bit rates
Duplex LC connector
Hot pluggable SFP footprint
850nm VSCEL laser transmitter and PIN photo-detector
Applicable for 500m on 50/125µm, 300m on 62.5/125µm MMF connection
Low power consumption, < 0.5W
Digital Diagnostic Monitor Interface
Compliant with SFP MSA and SFF-8472
Very low EMI and excellent ESD protection

UltraLAN SFP BiDi Module Pair - SM 3KM 1310/1510nm

UltraLAN's SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 3km transmission distance with SMF.


The transceiver consists of three sections: a FP/DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.

Product Features:

Supports 1.25Gbps/1.0625Gbps bit rates
Bi-Directional LC connector
Hot pluggable SFP footprint
Applicable for 3KM SMF connection
Low power consumption, < 0.8W
Digital Diagnostic Monitor Interface
Compliant with SFP MSA and SFF-8472
Very low EMI and excellent ESD protection

Please note, as these are BiDi SFP Modules they are only sold in a pair.

UltraLAN Gigabit RJ45 SFP Module - 10/100/1000 Ethernet Module

The UltraLAN Copper Small Form Pluggable (SFP) transceivers are high performance, cost effective modules compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supports up to Gigabit data rates up to 100 meters in distance over unshielded twisted-pair CAT5 cabling.


The module supports 1000Mbps (or 10/100/1000Mbps) full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair.

This SFP module is compatible with all vendor devices that has an SFP slot.

Product Features:

Gigabit bi-directional data links
Compact RJ-45 connector
Hot pluggable SFP footprint
1 Gigabit Ethernet over CAT5 cable
Applicable for 100m distance transmission
Low power consumption, < 1.2W
Access to physical layer IC via 2-wire serial bus

UltraLAN 25G SFP28 BiDi Module Pair - SM 20KM 1270/1330nm


UltraLAN's SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 25Gbps and 20km transmission distance with SMF.


The transceiver consists of three sections: a FP/DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8402.


Product Features:

Up to 25.78Gb/s data links
Bi-Directional LC connector
Hot pluggable SFP28 footprint
1270nm/1330nm DFB transmitter
Applicable for 20KM SMF connection
Low power consumption, <1.5W
Compliant to SFF-8402 for SFP28 solution
RoHS Compliant


Please note, as these are BiDi SFP Modules they are only sold in a pair.

UltraLAN 10G SFP BiDi Module Pair - SM 10KM 1270/1330nm


UltraLAN's SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 10Gbps and 10km transmission distance with SMF.


The transceiver consists of three sections: a FP/DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.


Product Features:

Supports 10G rates
Bi-Directional LC connector
Hot pluggable SFP footprint
Applicable for 10KM SMF connection
Low power consumption, < 0.8W
Digital Diagnostic Monitor Interface
Compliant with SFP MSA and SFF-8472
Very low EMI and excellent ESD protection


Please note, as these are BiDi SFP Modules they are only sold in a pair.

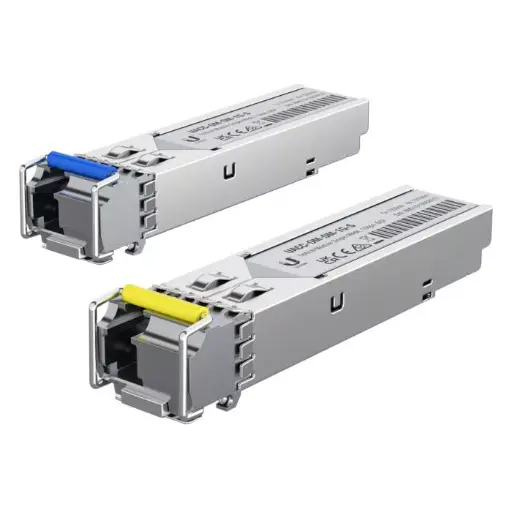

Brand: Ubiquiti
Product Code / SKU: UACC‑SM1GS
Supplier Code: UACC‑OM‑SM‑1G‑S‑2
Description
Ubiquiti UACC‑SM1GS – single‑mode, bi‑directional SFP modules with WDM technology. Supports up to 1.25Gbps speeds over 3km fiber runs. Designed for efficient long‑distance connectivity with reduced fiber usage. Sold only as a pair (box of 2 units). Retail box packaging.

Product Overview
Ubiquiti 1.25G bi‑directional SFP pair – single‑mode WDM modules for 3km fiber links, reducing cable runs and simplifying installations.

Highlights
Single‑mode bi‑directional SFP modules
Up to 1.25Gbps throughput
Fiber reach up to 3km
Wavelength‑Division Multiplexing (WDM) technology
Transmits and receives on different wavelengths simultaneously
Reduces fiber cable requirements
Simplifies infrastructure and installation
Sold only as a pair (2 units per box)
Retail box packaging

What’s Included
2 × Ubiquiti UACC‑SM1GS Bi‑Directional SFP modules (pair)
Retail box packaging
User documentation

Shipping Disclaimer
Standard courier rates apply for major cities and towns across South Africa. Additional charges may apply for remote, regional, or high‑risk delivery areas. Orders above R1500 qualify for free courier delivery in urban areas only. Networking accessories may incur extra handling or insurance fees. QuickStore covers up to 25% of courier surcharges; any excess will be billed to the customer before dispatch.

Ubiquiti Single Mode (LC) SFP Module Pair
The UF-SM1G is ideal for long-distance, outdoor, bi-directional, single-mode fiber runs for distances of up to 3 km at 1 Gbps.
Outdoor Fiber Installations
For long-distance runs of 300+ meters, use UFiber 1G single-mode modules for maximum reuse of existing infrastructure.
UF-SM-1G-S
Supported Media Single-Mode Fiber
Connector Type (1) LC
BiDi ✓
TX Wavelength Blue1310 nm Yellow1550 nm
RX Wavelength Blue 1550 nm Yellow 1310 nm
Data Rate 1.25 Gbps SFP
Cable Distance 3 km
Pack Options 1-Pair

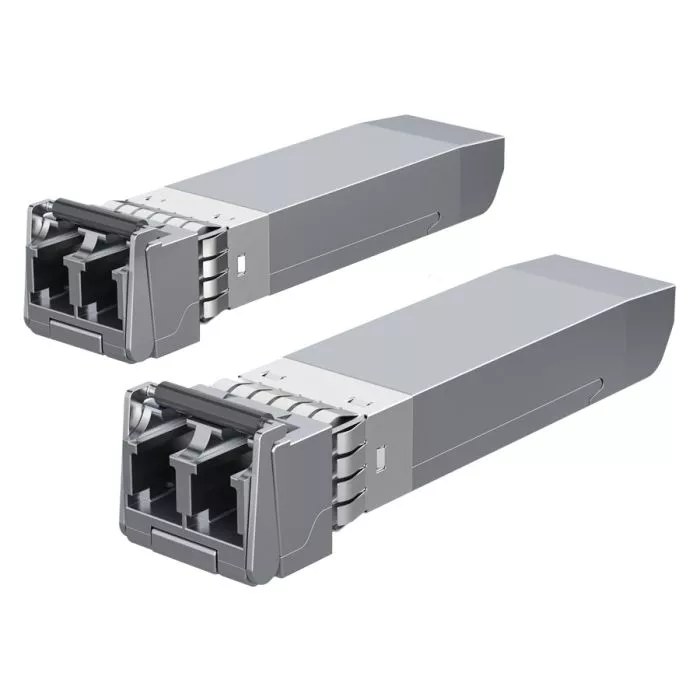

Brand: Ubiquiti
Product Code / SKU: UACC‑MM1G
Supplier Code: UACC‑OM‑MM‑1G‑D‑2
Description
Ubiquiti UACC‑MM1G – multi‑mode 1.25G SFP modules with LC connectors, 850nm wavelength, and 550m reach. Designed for fiber uplinks in enterprise and ISP networks. Provides reliable 1.25Gbps throughput over short‑distance fiber. Note: Sold only as a pair (box of 2 units). Retail box packaging.

Product Overview
Ubiquiti UACC‑MM1G – 1.25G multi‑mode SFP pair with LC connectors, 850nm wavelength, and 550m reach for short‑distance fiber uplinks.

Highlights
Multi‑mode fiber SFP modules
1.25Gbps data rate
LC connector type
850nm wavelength
Supports fiber runs up to 550m
Sold only as a pair (2 units per box)
Retail box packaging

What’s Included
2 × Ubiquiti UACC‑MM1G Multi‑Mode SFP modules (pair)
Retail box packaging
User documentation

Shipping Disclaimer
Standard courier rates apply for major cities and towns across South Africa. Additional charges may apply for remote, regional, or high‑risk delivery areas. Orders above R1500 qualify for free courier delivery in urban areas only. Networking accessories may incur extra handling or insurance fees. QuickStore covers up to 25% of courier surcharges; any excess will be billed to the customer before dispatch.

Ubiquiti Multi Mode (LC) SFP Module Pair

The UF-MM1G is ideal for short-distance, outdoor, bi-directional, multi-mode fiber runs for distances of up to 550m at 1 Gbps.

Outdoor Fiber Installations

For short-distance runs of 300+ meters, use UFiber 1G multi-mode modules for maximum reuse of existing infrastructure.
UF-MM-1G-S
Supported Media Multi-Mode Fiber
Connector Type (1) LC
BiDi ✓
TX Wavelength
850 nm

RX Wavelength
850 nm

Data Rate 1.25 Gbps SFP
Cable Distance 550 m
Pack Options 1-Pair

Please note: This kit is only sold as a pair (one box with 2 units inside)

Ubiquiti 1Gbps RJ45 Copper SFP Module


Ubiquiti Networks offers a variety of U® Fiber modules to suit your fiber connectivity applications.


To connect copper Ethernet cables to SFP ports, use the UF-RJ45-10G in an SFP+ port for speeds of up to 10 Gbps and distances of up to 30 m, or use the UF-RJ45-1G in an SFP port for speeds of up to 1 Gbps and distances of up to 100m.
upported Media Copper
Connector Type RJ45
BiDi N/A
TX Wavelength N/A
RX Wavelength N/A
Data Rate 10/100/1000 Mbps
Cable Distance 100 m

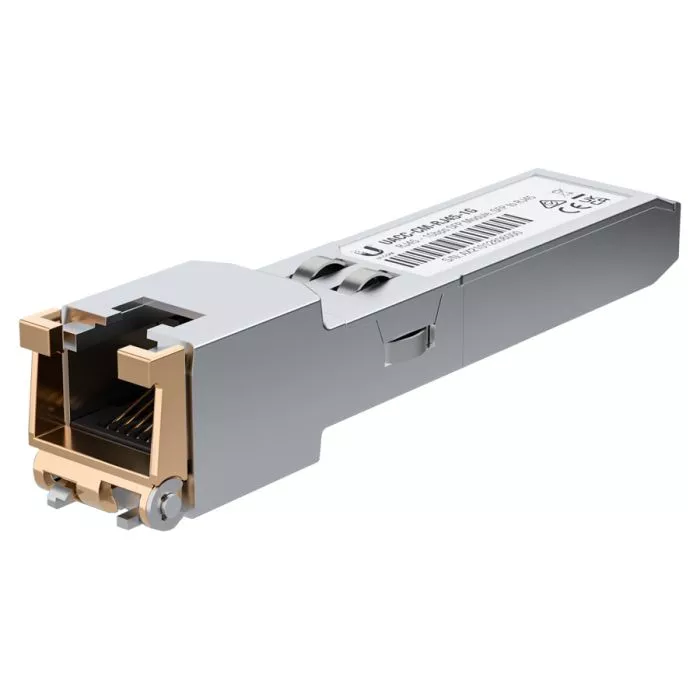

Brand: Ubiquiti
Product Code / SKU: UACC‑RJ451G
Supplier Code: UACC‑CM‑RJ45‑1G
Description
Ubiquiti UACC‑RJ451G – 1.25Gbps copper SFP module that converts unused SFP+ ports into 1G Ethernet RJ45 ports. Compact and reliable, ideal for extending connectivity in UniFi and UISP deployments. Note: Not compatible with MikroTik devices. Retail box packaging.

Product Overview
Ubiquiti UACC‑RJ451G – 1.25Gbps copper SFP module converting SFP+ ports to RJ45 Gigabit Ethernet. Not compatible with MikroTik.

Highlights
Converts SFP+ ports to 1G RJ45 Ethernet
1.25Gbps copper SFP module
Compact and easy to deploy
Supports up to 100m distance
Retail box packaging
Not compatible with MikroTik devices

What’s Included
1 × Ubiquiti UACC‑RJ451G SFP to RJ45 Module
Quick Start Guide
Retail box packaging

Shipping Disclaimer
Standard courier rates apply for major cities and towns across South Africa. Additional charges may apply for remote, regional, or high‑risk delivery areas. Orders above R1500 qualify for free courier delivery in urban areas only. Networking accessories may incur extra handling or insurance fees. QuickStore covers up to 25% of courier surcharges; any excess will be billed to the customer before dispatch.

Brand: Cudy
Product Code / SKU: CD‑SFP‑SM
Description: Cudy Single Mode 1.25G LC SFP 1310nm 20km – SM100GSA‑20

Product Overview
The Cudy SM100GSA‑20 Single Mode SFP Module is designed for long‑distance fibre deployments up to 20km at 1.25Gbps. Operating at a 1310nm wavelength, this duplex LC module is ideal for providing uplinks between switches, routers, and media converters in enterprise and ISP environments.

With multi‑vendor compatibility, the module integrates seamlessly into existing fibre networks, offering reliable performance and cost‑effective deployment.

Highlights
Single mode fibre duplex SFP module
Data rate: 1.25Gbps
Wavelength: 1310nm
Duplex LC connector
Transmission distance: up to 20km
Ideal for long‑distance fibre links
Provides uplink between switches, routers, and media converters
Multi‑vendor compatible

Technical Specifications
Feature Details
Product Code / SKU CD‑SFP‑SM
Brand Cudy
Model SM100GSA‑20
Type Single Mode SFP module
Data Rate 1.25Gbps
Wavelength 1310nm
Connector Duplex LC
Transmission Distance Up to 20km
Compatibility Multi‑vendor
Warranty Manufacturer warranty

What’s Included
1 × Cudy SM100GSA‑20 Single Mode LC SFP Module
Retail packaging
Warranty documentation

Brand: Cudy

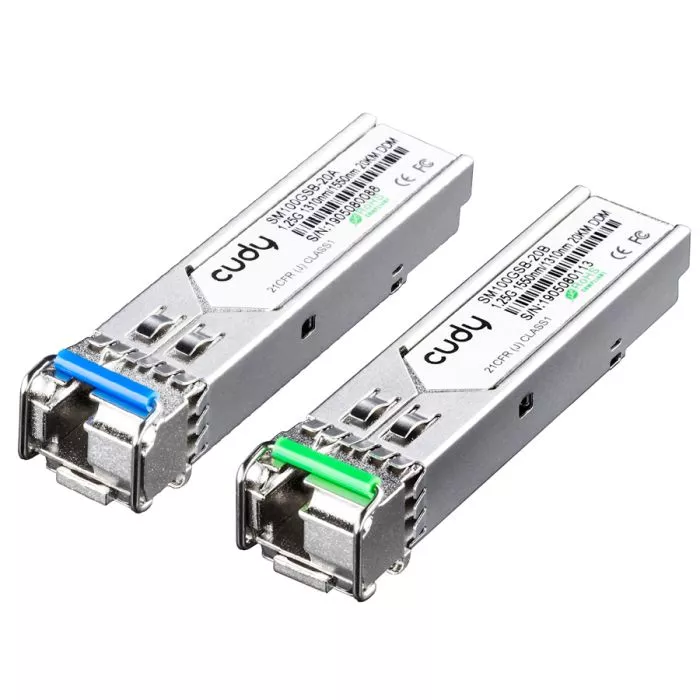

Product Code / SKU: CD‑SFP‑SMB
Description: Cudy Single Mode 1.25G LC Bi‑Directional SFP 20km – SM100GSB‑20AB

Product Overview
The Cudy SM100GSB‑20AB Bi‑Directional SFP Module Pair is designed for single mode fibre deployments up to 20km at 1.25Gbps. By using two unique wavelengths for TX and RX on the same optical strand, these modules enable duplex transmission over a single fibre, reducing installation costs and simplifying deployment.

With multi‑vendor compatibility, the modules integrate seamlessly into existing fibre networks, making them ideal for uplinks between switches, routers, and media converters.

Highlights
Single mode fibre bi‑directional SFP pair
Data rate: 1.25Gbps
Transmission distance: up to 20km
Duplex transmission over a single fibre strand
Reduces installation costs and fibre usage
LC connector interface
Multi‑vendor compatible
Ideal for uplinks between switches, routers, and media converters

Technical Specifications
Feature Details
Product Code / SKU CD‑SFP‑SMB
Brand Cudy
Model SM100GSB‑20AB
Type Single Mode Bi‑Directional SFP module pair
Data Rate 1.25Gbps
Connector LC
Transmission Distance Up to 20km
Duplex Method Bi‑Directional (single fibre, dual wavelength)
Compatibility Multi‑vendor
Warranty Manufacturer warranty

What’s Included
2 × Cudy SM100GSB‑20AB Bi‑Directional SFP Modules (TX/RX pair)
Retail packaging
Warranty documentation

Brand: Cudy
Product Code / SKU: CD‑SFP‑MM
Description: Cudy Multi‑Mode 1.25G LC SFP 850nm 500m – SM100GMA‑05

Product Overview
The Cudy SM100GMA‑05 Multi‑Mode SFP Module is designed for short‑distance fibre deployments up to 500m at 1.25Gbps. Operating at 850nm wavelength, this duplex LC module is ideal for providing uplinks between switches, routers, and media converters.

With multi‑vendor compatibility, the module integrates seamlessly into existing fibre networks, offering reliable performance and easy deployment.

Highlights
Multi‑Mode fibre SFP module
Data rate: 1.25Gbps
Wavelength: 850nm
Duplex LC connector
Transmission distance: up to 500m
Ideal for short‑distance fibre links
Provides uplink between switches, routers, and media converters
Multi‑vendor compatible

Technical Specifications
Feature Details
Product Code / SKU CD‑SFP‑MM
Brand Cudy
Model SM100GMA‑05
Type Multi‑Mode SFP module
Data Rate 1.25Gbps
Wavelength 850nm
Connector Duplex LC
Transmission Distance Up to 500m
Compatibility Multi‑vendor
Warranty Manufacturer warranty

What’s Included
1 × Cudy SM100GMA‑05 Multi‑Mode SFP Module
Retail packaging
Warranty documentation
