The Ubiquiti UniFi Cloud Gateway Fiber (UCG‑Fiber + M.2 Tray) is a 10Gbps dual‑WAN desktop gateway designed for full‑stack UniFi network management. Equipped with a quad‑core ARM Cortex‑A73 processor at 2.2GHz and 3GB RAM, it delivers enterprise‑grade performance for demanding deployments.

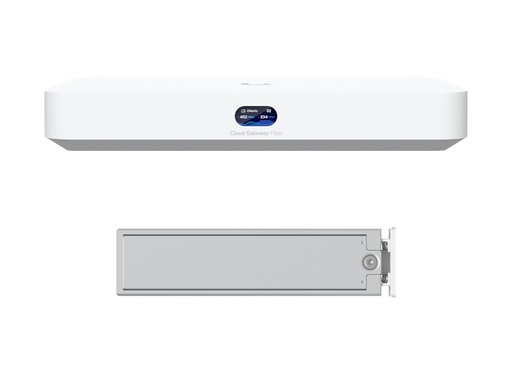

This model includes an M.2 SSD tray (SSD not included), enabling NVR storage expansion up to 2TB for UniFi Protect, making it a versatile gateway + video recorder solution.

Connectivity highlights include:

1× 10Gbps WAN port
4× 2.5Gbps LAN ports (Port 4 supports 802.3at PoE+ output)
2× SFP+ ports (1 WAN, 1 LAN)

Running on UniFi OS, the UCG‑Fiber integrates seamlessly with the UniFi Network Application, offering centralized management of routing, switching, security, and video. Compact at 212.8 × 127.6 × 30 mm and weighing 675 g, it consumes just 29.4W and is powered via a 54V 1.1A adapter (included).

Technical Details:

Model / SKU: UCG‑Fiber + UACC‑SSD‑Tray
Processor: Quad‑core ARM Cortex‑A73, 2.2GHz
System Memory: 3GB
Storage: M.2 SSD tray (≤2TB, SSD not included)
Ethernet Ports: 4 × 2.5Gbps LAN (Port 4 PoE+), 1 × 10Gbps WAN
SFP+ Ports: 2 × (1 WAN, 1 LAN)
PoE Output: 802.3at PoE+ on Port 4
Power Input: 54V 1.1A adapter (included)
Max Power Consumption: 29.4W
Operating System: UniFi OS
Operating Temperature: 0°C to 40°C
Dimensions: 212.8 × 127.6 × 30 mm
Weight: 675 g
Mounting: Desktop

The Ubiquiti UCG-FIBER is a next-generation UniFi Cloud Gateway designed to deliver high-speed fiber routing, robust security, and centralized UniFi OS management. Built for businesses and advanced home users, it offers powerful multi-gig connectivity in a compact, modern form factor.


Key Features:

High-Speed Performance:
3x 10G ports (1 × RJ45 + 2 × SFP+) for fiber and multi-gig uplinks
4x 2.5 GbE RJ45 ports for LAN connectivity (1 port supports PoE+)
Up to 5 Gbps IDS/IPS firewall throughput
Cloud-Based Management:
Fully managed via UniFi Controller or UniFi Cloud Portal
Supports full UniFi OS functionality with locally hosted apps
Built-In Storage Support:
Internal NVMe SSD slot (supports up to 2 TB)
Ideal for log retention, backups, and UniFi applications

Ubiquiti's UXG-FIBER is a desktop 10Gbps dual WAN, independent gateway which features 1x 10Gbps SFP+ port, 4x 2.5Gbps LAN Ports, one with PoE+ (802.3at) output as well as 1x SFP+ and 1x 10Gbps Ethernet WAN ports.

It can be configured and managed with a Cloud key, Official UniFi Hosting, or UniFi Network Server.

Specifications

Ethernet Ports: 4x 10/100/1000/2500 (LAN); 1x 10/100/1000/10000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 25W
Mounting: Desktop
Operating System: UniFi
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3at (PoE+) on Port 4
Power Input: 54V 1.1A Power Adapter (Included)
Processor: Quad-core ARM® Cortex®-A73 at 2.2 GHz
Serial Interface: None
SFP Ports: 2 x SFP+ (1x WAN ; 1 x LAN)
Supported Voltage Range: 50-57V
System Memory: 2GB
USB Ports: None
Dimensions: 212.8 x 127.6 x 30 mm
Weight: 605g

Ubiquiti's UCG-FIBER is a desktop 10Gbps dual WAN, UniFi cloud gateway with selectable NVR storage via SSD up to 2TB. The unit runs the complete UniFi application suite for full stack network management and features 1x 10Gbps WAN port, 4x 2.5Gbps LAN Ports, one with 802.3at (PoE+) PoE output, as well as 2 x SFP+ ports.

It can be configured and managed with the UniFi Network Application.

Note: NVMe SSD not included. Third-party SSD installation requires tray accessory.

Specifications
Ethernet Ports: 4x 10/100/1000/2500 (LAN); 1x 10/100/1000/10000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 29.4W
Mounting: Desktop
Operating System: UniFi
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3at (PoE+) on Port 4
Power Input: 54V 1.1A Power Adapter (Included)
Processor: Quad-core ARM® Cortex®-A73 at 2.2 GHz
Serial Interface: None
SFP Ports: 2 x SFP+ (1x WAN ; 1 x LAN)
Supported Voltage Range: 50-57V
System Memory: 3GB
USB Ports: None
Dimensions: 212.8 x 127.6 x 30 mm
Weight: 675g
