UltraLAN Pre-Terminated Drop Cable (LC/APC) Simplex - 60m

UltraLAN’s pre-terminated fiber drop cable offers a cost-effective, ready-to-use solution for quickly linking FTTX equipment without the need for splicing. This ‘Bow Type’ single-mode simplex cable features LC APC connectors pre-terminated on both ends, ensuring seamless and reliable connectivity.

The cable jacket measures 2x3 mm and is made from UV-resistant, Low Smoke Zero Halogen (LSZH) material, suitable for both indoor and outdoor use. Compliant with G657A2 specifications, this bend-insensitive cable simplifies installations around tight corners and confined spaces.

Enhanced with two internal 0.45 mm phosphate reinforcement wires, the cable is engineered for superior durability and pull strength during installation.

Key Features:

Single-mode, 1 core (simplex)
Pre-terminated LC APC connectors on both ends
UV-resistant, LSZH outer jacket (2x3 mm)
Bend-insensitive per G657A2 standards
Reinforced with internal phosphate wires for durability
Ideal for indoor/outdoor FTTX applications
Cable length: 60 meters

UltraLAN Fiber Flylead SC-SC UPC SM Simplex (5Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack or as an end-point cable to link into a fiber ONT.

Connector Type SC to SC Polish Type UPC to UPC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥50dB

UltraLAN Fiber Flylead SC-SC UPC SM Simplex (20Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack or as an end-point cable to link into a fiber ONT.

Connector Type SC to SC Polish Type UPC to UPC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥50dB

UltraLAN Fiber Flylead SC-SC UPC SM Simplex (10Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack or as an end-point cable to link into a fiber ONT.

Connector Type SC to SC Polish Type UPC to UPC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥50dB

UltraLAN Fiber Flylead SC-SC APC SM Simplex (5Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.

This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type SC to SC Polish Type APC to APC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥60dB

UltraLAN Fiber Flylead SC-SC APC SM Simplex (20Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.

This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type SC to SC Polish Type APC to APC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥60dB

UltraLAN Fiber Flylead SC-SC APC SM Simplex (10Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.
This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type SC to SC Polish Type APC to APC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥60dB

UltraLAN Fiber Flylead SC-SC APC SM (1Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.

This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type SC to SC Polish Type APC to APC

Fiber Count Duplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥60dB

UltraLAN Fiber Flylead LC-SC APC SM (1Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.

These flyleads feature a LC connector on one side, and a SC connector on the other , making them practical flyleads to also connect PON ONU equipment to fiber termination boxes with an LC connector.

This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.


Connector Type LC to SC Polish Type APC to APC

Fiber Count Duplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥60dB

UltraLAN Fiber Flylead LC-LC APC SM Simplex (1Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.

This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type LC to LC Polish Type APC to APC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥60dB

UltraLAN Fiber Flylead LC-LC APC SM Duplex (3Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.

This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type LC to LC Polish Type APC to APC

Fiber Count Duplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥60dB

UltraLAN Fiber Flylead LC-LC APC SM Duplex (1Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.
This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type LC to LC Polish Type APC to APC

Fiber Count Duplex Fiber Mode OS2 9/125μm

Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)

Insertion Loss ≤0.3dB Return Loss ≥60dB

UltraLAN Fiber Flylead LC UPC-SC APC SM Simplex (3Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.
This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type LC to SC Polish Type UPC to APC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥60dB

UltraLAN Fiber Flylead LC UPC-SC APC SM Simplex (1Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.

This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type LC to SC Polish Type UPC to APC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥60dB

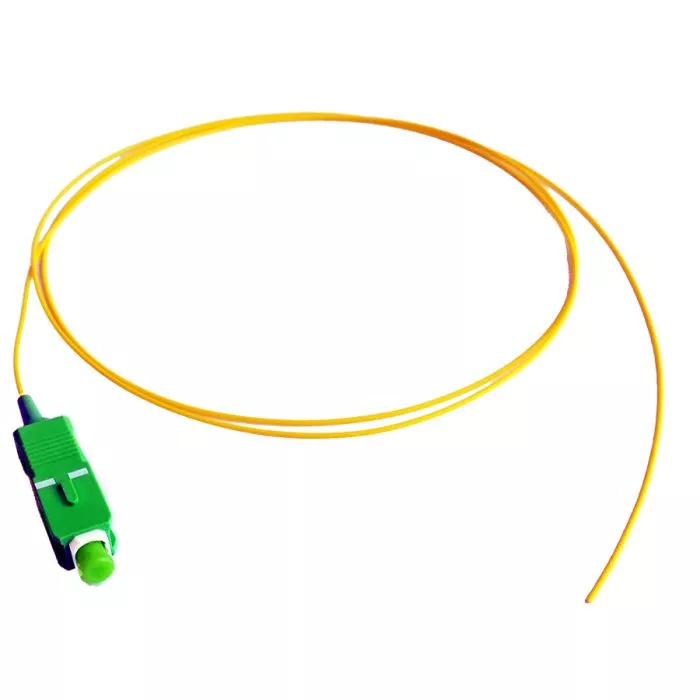

Brand: Linkbasic
Product Code / SKU: FP‑SC‑S1A
Supplier Code: SOP‑FAS20‑1‑1‑APC
Description
Linkbasic FP‑SC‑S1A – single‑mode fibre optic pigtail, 1m length, SC APC connector. Designed for termination inside patch panels and termination boxes. Features LSZH jacket for safety, reliable performance in –20°C to +70°C environments, and simple integration into FTTX and fibre distribution setups. Retail pack, compact accessory.

Product Overview
Linkbasic FP‑SC‑S1A – 1m single‑mode fibre pigtail with SC APC connector, LSZH jacket, ideal for patch panel and termination box integration.

Highlights
SC APC connector for precise fibre termination
1m cable length for patch panel/termination box use
Single‑mode fibre core for FTTX applications
LSZH jacket for low smoke, halogen‑free safety
Operating temperature: –20°C to +70°C
Compact, easy to install
Retail pack packaging

What’s Included
1 × Linkbasic FP‑SC‑S1A Fibre Pigtail (1m)
Retail pack packaging

Shipping Disclaimer
Standard courier rates apply for major cities and towns across South Africa. Additional charges may apply for remote or outlying delivery areas. Orders above R1500 qualify for free courier delivery in urban areas. QuickStore covers up to 25% of courier surcharges; any excess will be billed to the customer before dispatch.

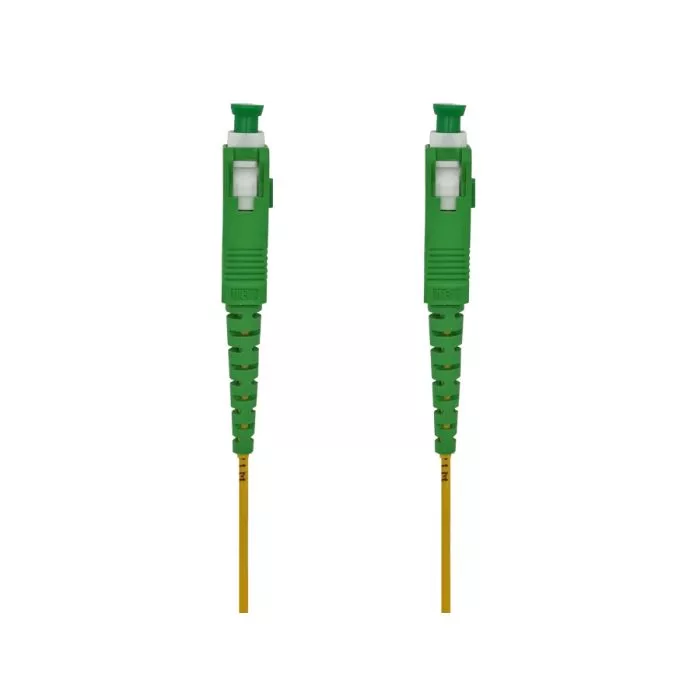

Brand: Linkbasic
Product Code / SKU: FF‑SCSC‑S1A
Supplier Code: Not specified
Description
Linkbasic FF‑SCSC‑S1A – 1m single‑mode fibre optic flylead with SC‑SC APC connectors. Designed for connecting PON ONU to fibre termination boxes. Features 2.0mm PVC jacket, compact design, and reliable low‑loss performance. Operating temperature range –40°C to +80°C. Retail box packaging, 1‑year warranty.

Product Overview
Linkbasic FF‑SCSC‑S1A – 1m SC‑SC APC single‑mode fibre flylead with PVC jacket, ideal for PON ONU to termination box connections.

Highlights
1m fibre optic flylead
SC‑SC APC connectors
Single‑mode fibre core
2.0mm PVC jacket
Operating temperature: –40°C to +80°C
Compact, durable design
Retail box packaging
1‑year warranty

What’s Included
1 × Linkbasic FF‑SCSC‑S1A Fibre Flylead
Retail box packaging

Shipping Disclaimer
Standard courier rates apply for major cities and towns across South Africa. Additional charges may apply for remote or outlying delivery areas. Orders above R1500 qualify for free courier delivery in urban areas. Fibre accessories may incur extra handling or insurance fees. QuickStore covers up to 25% of courier surcharges; any excess will be billed to the customer before dispatch.

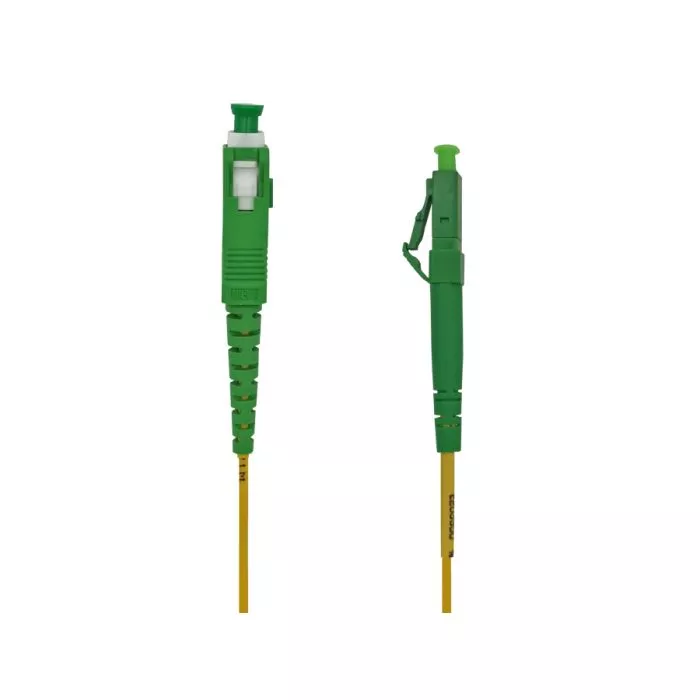

Brand: Linkbasic
Product Code / SKU: FF‑SCLC‑S1A
Supplier Code: FAS25‑1‑1‑APC
Description
Linkbasic FF‑SCLC‑S1A – 1m single‑mode fibre optic patch cord with LC‑SC APC connectors. Designed for connecting PON ONU to fibre termination boxes. Features 2.0mm PVC jacket, compact design, and reliable low‑loss performance. Operating temperature range –40°C to +80°C. Retail box packaging, 1‑year warranty.

Product Overview
Linkbasic FF‑SCLC‑S1A – 1m LC‑SC APC single‑mode fibre flylead with PVC jacket, ideal for ONU to termination box connections.

Highlights
1m fibre optic patch cord
LC‑SC APC connectors
Single‑mode fibre core
2.0mm PVC jacket
Operating temperature: –40°C to +80°C
Compact, durable design
Retail box packaging
1‑year warranty

What’s Included
1 × Linkbasic FF‑SCLC‑S1A Fibre Flylead
Retail box packaging

Shipping Disclaimer
Standard courier rates apply for major cities and towns across South Africa. Additional charges may apply for remote or outlying delivery areas. Orders above R1500 qualify for free courier delivery in urban areas. Fibre accessories may incur extra handling or insurance fees. QuickStore covers up to 25% of courier surcharges; any excess will be billed to the customer before dispatch.

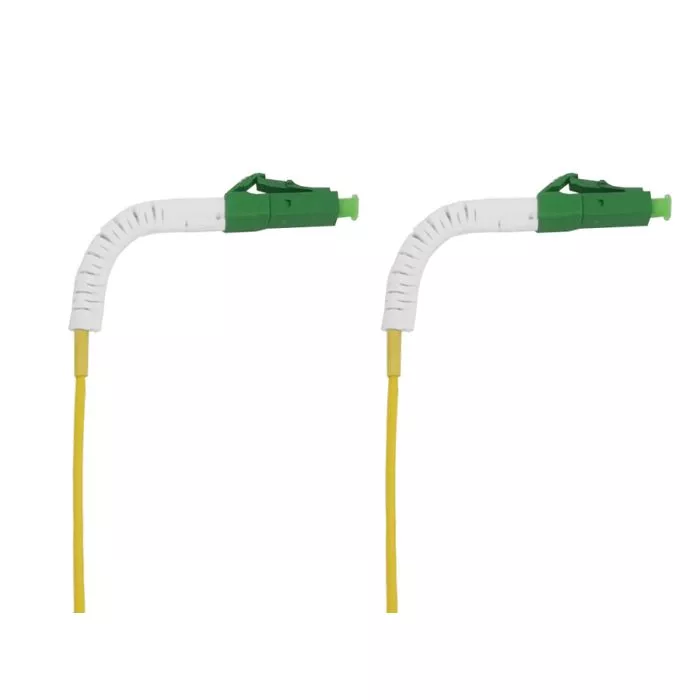

Brand: Linkbasic
Product Code / SKU: FF‑LCLC‑SMAF
Supplier Code: FAS55‑1‑1‑APC‑FB
Description
Linkbasic FF‑LCLC‑SMAF – 1m single‑mode fibre optic patch cord with LC‑LC APC connectors and flexible boot design. The flex boot allows bending up to 90° without damaging the fibre, making it ideal for tight spaces and high‑density patch panels or termination boxes. Features PVC jacket for indoor use, reliable low‑loss performance, and factory‑tested to TIA/EIA‑568‑B‑3 standards. Retail box packaging, 1‑year warranty.

Product Overview
Linkbasic FF‑LCLC‑SMAF – 1m LC‑LC APC single‑mode fibre patch cord with flex boot for 90° bends, PVC jacket, tested to TIA/EIA‑568‑B‑3 standards.

Highlights
1m fibre optic patch cord (Zipcord)
LC‑LC APC connectors
Single‑mode fibre core
Flexible boot allows 90° bends safely
PVC jacket for indoor use
Operating temperature: –40°C to +80°C
Factory‑tested to TIA/EIA‑568‑B‑3 standards
Retail box packaging
1‑year warranty

What’s Included
1 × Linkbasic FF‑LCLC‑SMAF Fibre Flylead
Retail box packaging

Shipping Disclaimer
Standard courier rates apply for major cities and towns across South Africa. Additional charges may apply for remote or outlying delivery areas. Orders above R1500 qualify for free courier delivery in urban areas. Fibre accessories may incur extra handling or insurance fees. QuickStore covers up to 25% of courier surcharges; any excess will be billed to the customer before dispatch.

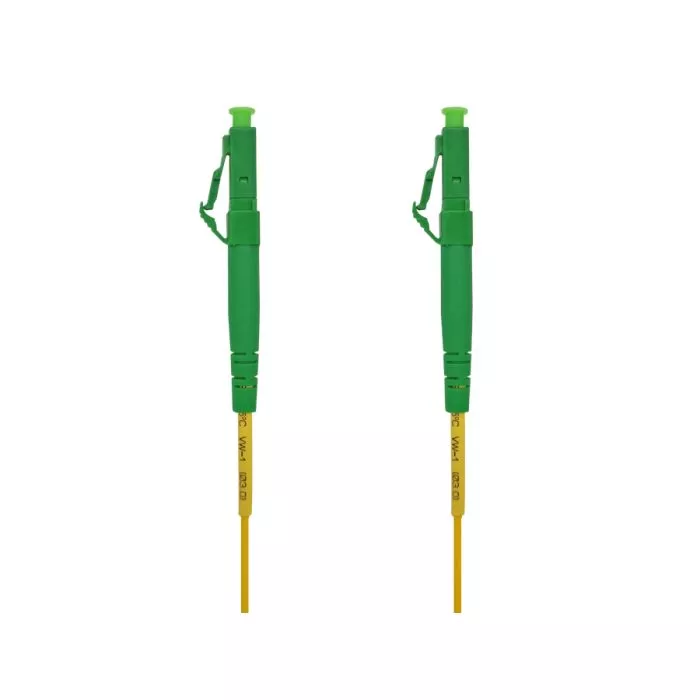

Brand: Linkbasic
Product Code / SKU: FF‑LCLC‑S1A
Supplier Code: FAS55‑1‑1‑APC
Description
Linkbasic FF‑LCLC‑S1A – 1m single‑mode fibre optic patch cord with LC‑LC APC connectors. Designed for patch panel LC terminations, ensuring secure, low‑loss connections. Features PVC jacket for durability, compact design, and reliable performance. Operating temperature range –40°C to +80°C. All cords are factory‑tested to meet TIA/EIA‑568‑B‑3 standards. Retail box packaging, 1‑year warranty.

Product Overview
Linkbasic FF‑LCLC‑S1A – 1m LC‑LC APC single‑mode fibre patch cord, PVC jacket, factory‑tested for reliable patch panel terminations.

Highlights
1m fibre optic patch cord
LC‑LC APC connectors
Single‑mode fibre core
PVC jacket for indoor use
Operating temperature: –40°C to +80°C
Factory‑tested to TIA/EIA‑568‑B‑3 standards
Compact, durable design
Retail box packaging
1‑year warranty

What’s Included
1 × Linkbasic FF‑LCLC‑S1A Fibre Flylead
Retail box packaging

Shipping Disclaimer
Standard courier rates apply for major cities and towns across South Africa. Additional charges may apply for remote or outlying delivery areas. Orders above R1500 qualify for free courier delivery in urban areas. Fibre accessories may incur extra handling or insurance fees. QuickStore covers up to 25% of courier surcharges; any excess will be billed to the customer before dispatch.

Scoop's FF-FCLC-S1A Single Mode fiber patch cord with LC-FC connectors are used to connect gateway termination units (GTU) to a termination box for DSTV over fiber applications. All patch cords are 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.
SKU FF-FCLC-S1A
Manufacturer Scoop

Specifications

Cable Length: 1M
Connector: LC-FC APC
Fibre Cores: 1
Jacket: PVC
Operating Temperature: -40℃ to 80℃
Strength Member: None
Mode: Single Mode
