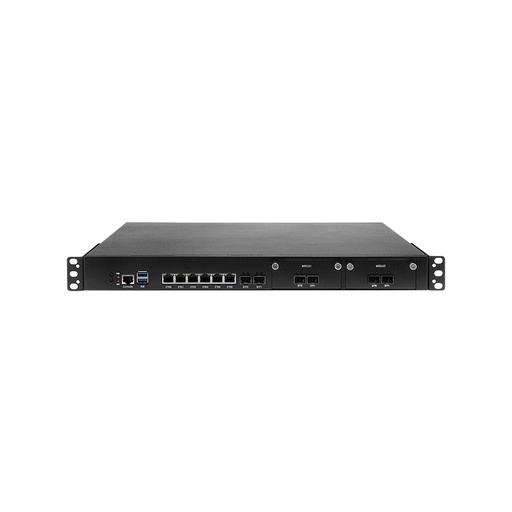

The Quickstore SM‑Q270‑6L6SFP is a high‑performance 1U industrial firewall server engineered for advanced network security, multi‑WAN routing, and 10GbE edge workloads. Powered by the Intel E3‑1225v5 processor and built on the Q270 chipset, this platform supports a wide range of Intel 6th–9th Gen CPUs, offering exceptional flexibility and long‑term scalability.

Designed for demanding security environments, the appliance features 6 × Intel I226‑V 2.5GbE LAN ports and 6 × Intel 82599 10GbE SFP+ ports, enabling powerful segmentation, high‑speed uplinks, and enterprise‑grade throughput. With 16GB DDR4 RAM and a 128GB SSD, it is ready for immediate deployment as a Sophos Firewall, OPNsense/pfSense appliance, or datacenter edge router.

Its 1U fanless‑optimized chassis, redundant storage options, and industrial‑grade components make it ideal for branch offices, ISPs, data centers, and high‑availability perimeter security.

✅ Key Features
Intel E3‑1225v5 Quad‑Core CPU (2.0GHz base)
Supports Intel 6th–9th Gen Celeron, Pentium, Core, and Xeon E3‑V5/V6
Q270 chipset for enterprise stability
16GB DDR4 RAM (expandable to 64GB via 2× Long‑DIMM slots)
128GB SSD + support for 1× SATA and 1× SAS (4× SATA)
6 × Intel I226‑V 2.5GbE LAN ports
6 × Intel 82599 10GbE SFP+ ports
Display: 1× VGA, 1× HDMI
Expansion: 1× M.2 NGFF/NVMe 2280 slot
USB: 2× USB 3.0
1U industrial metal chassis for rack deployments
Quickstore 12‑Month Warranty

✅ Optimized For
Sophos Firewall (SMB / Enterprise / HA)
OPNsense / pfSense
10GbE perimeter routing
SD‑WAN aggregation
ISP edge deployments
Industrial and datacenter network security

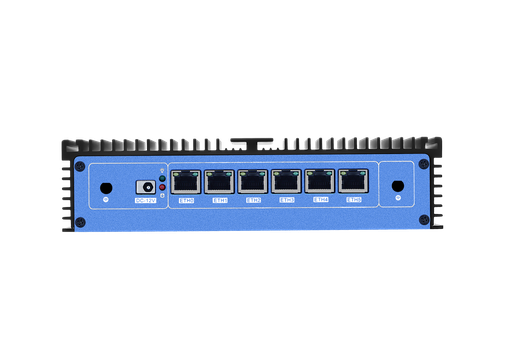

The Quickstore 6200U is a high‑performance, fanless industrial firewall appliance powered by the Intel Core i7‑6500U dual‑core processor (2.70GHz up to 3.50GHz). Engineered for demanding security workloads, this unit delivers exceptional throughput, silent operation, and enterprise‑grade reliability for Sophos Firewall, OPNsense, pfSense, and advanced edge‑security deployments.

Equipped with 6 × Intel i211 Gigabit Ethernet ports, the 6200U provides robust multi‑WAN, VLAN, and segmentation capabilities. Its fanless metal chassis ensures stable 24/7 operation in office, industrial, and cabinet environments. With 8GB DDR4 RAM and a 128GB SSD, it’s ready for immediate deployment as a secure firewall, SD‑WAN node, or industrial gateway.

✅ Key Features
Intel Core i7‑6500U Dual‑Core CPU (2.70GHz → 3.50GHz Turbo)
Intel HD Graphics 520
6 × Intel i211 Gigabit LAN ports (WOL + PXE Boot support)
8GB DDR4 RAM + 128GB SSD (silent, solid‑state storage)
Fanless industrial design for 24/7 reliability
Dual display output: VGA + HDMI 1.4 (up to 4096×2304 @ 24Hz)
Expansion: mPCIe slot for 3G/4G modules + SIM card socket
4 × USB 3.0 ports
OS Support: Windows 7, Windows 10, Linux distributions
Compact metal chassis: 215 × 110 × 53 mm
Quickstore 12‑Month Warranty

✅ Optimized For
Sophos Firewall (Home / SMB / Branch)
OPNsense / pfSense
SD‑WAN edge nodes
IoT security gateways
Industrial control networks

A compact, silent, and power‑efficient fanless appliance built on the Intel N4000 platform, equipped with 8GB DDR4 RAM and 128GB SSD for reliable, always‑on operation. Designed for lightweight to mid‑range network security workloads, this unit delivers stable performance for edge firewalls, IoT gateways, and industrial automation nodes.

Its low‑power architecture and solid‑state design make it ideal for environments where silent operation, high uptime, and compact deployment are essential. Perfect for home labs, small offices, and distributed branch networks requiring dependable security without the noise or heat of traditional hardware.

Technical Specifications
Component Details
Processor Intel Celeron N4000 Dual‑Core, burst frequency up to 2.60GHz
Memory 8GB DDR4 (expandable)
Storage 128GB SSD (solid‑state, silent operation)
Networking 4 × Gigabit LAN ports (RJ45)
Expansion SIM slot for LTE/5G failover integration
Display Outputs HDMI + DP, supports dual 4K displays
Cooling Fanless design for 24/7 stable operation
Chassis Compact metal enclosure, low‑power architecture
Power 12V DC input, energy‑efficient
Warranty 12‑Month Quickstore warranty

Optimized For
Sophos Firewall (Home/SMB)
OPNsense / pfSense
SD‑WAN edge nodes
IoT security gateways
Industrial control networks

The 1U Rack Mount Industrial PC is a robust network security appliance engineered for firewall, VPN, and router applications. Powered by Intel 4th‑gen Core i3/i5/i7 CPUs on the Z87 chipset, it delivers enterprise‑grade performance with AES‑NI acceleration for secure encryption.

Equipped with 10×Intel I226‑V 2.5GbE RJ45 ports, the system ensures high‑throughput connectivity for demanding environments. Supporting 8-16GB DDR3L memory, 2×SATA3.0, and 1×M.2 storage, it offers flexible expansion for storage and virtualization.

Expansion options include 1×mPCIe and 2×PCIe X8 slots, enabling integration of 3G/4G modules and additional cards. The 1U 19″ steel chassis with a 250W PSU ensures durability and reliability in rack deployments.

Compatible with Windows 10, Linux, SOPHOS, pfSense, and OPNsense, this appliance is ideal for enterprise firewalls, secure VPN gateways, and advanced routing solutions.

Technical Specifications:

Form Factor: 1U rack mount, 19″ steel chassis
CPU Support: Intel Core i3/i5/i7 (4th‑gen Z87 chipset or higher, customizable by processor and generation)
Memory: 8–16GB DDR3L (capacity and configuration customizable)
Networking: 10×Intel I226‑V 2.5GbE RJ45 ports with bypass support, plus optional fiber SFP ports (LAN/SFP port count and configuration customizable)
Storage: 2×SATA3.0, 1×M.2, mSATA option
Expansion: 1×mPCIe, 2×PCIe X8 slots (3G/4G modules, add‑ons)
Security: AES‑NI hardware acceleration
Power Supply: 250W PSU
OS Compatibility: Windows 10, Linux, SOPHOS, pfSense, OPNsense
Applications: Firewall, VPN, Router, Network Security

⚠️ Ordering Information This unit is customizable and available offline only. Orders require 7–10 working days for delivery, subject to confirmation.

📩 Please contact sales@quickstore.co.za with your specific requirements to receive a tailored quotation.

💡 Note: The listed price applies to the basic configuration with 8 LAN ports. Additional customization may affect final pricing.

📣 Attention Installers & Resellers
Get trade pricing, pre-imaging service and drop-ship options – email sales@quickstore.co.za with “Reseller enquiry” for an instant quote.
