Brand: Asus
Product Code / SKU: GT710‑SL‑2GD3‑BRK‑EVO
Manufacturer Product Code: GT710 EVO Silent
Description: The ASUS EVO Silent Nvidia GeForce GT 710 2GB DDR3 Graphics Card is a low‑profile, passively cooled GPU designed for quiet home theater PCs and multimedia systems. Featuring 2GB DDR3 video memory, a 954 MHz engine clock, and 900 MHz memory speed, it delivers smooth visuals for everyday computing. With support for up to three displays, Auto‑Extreme Technology for reliability, and GPU Tweak III software for performance tuning, this card is ideal for silent, efficient multitasking setups.

Product Overview
The GT 710 EVO Silent offers true 0dB passive cooling, making it perfect for noise‑sensitive environments. Its 64‑bit memory interface and 192 CUDA cores provide stable performance for office work, streaming, and light multimedia tasks. With native HDMI, DVI‑D, and D‑Sub outputs, it supports multiple monitor configurations up to 2560 × 1600 resolution.

Highlights
Silent passive cooling – true 0dB operation
2GB DDR3 video memory with 64‑bit interface
Engine clock: 954 MHz
Memory speed: 900 MHz
Supports up to 3 displays simultaneously
Auto‑Extreme Technology for enhanced reliability
GPU Tweak III software for tuning and monitoring
Native HDMI 1.4b, DVI‑D, and D‑Sub outputs
Recommended PSU: 300W
Compact 2‑slot design

Technical Specifications
Feature Details
Product Code / SKU GT710‑SL‑2GD3‑BRK‑EVO
Brand Asus
Bus Standard PCI Express 2.0
Video Memory 2GB DDR3
Engine Clock 954 MHz
Memory Speed 900 MHz
Memory Interface 64‑bit
CUDA Cores 192
Max Resolution 2560 × 1600
Outputs 1 × HDMI 1.4b, 1 × DVI‑D, 1 × D‑Sub
Display Support Up to 3 monitors
OpenGL 4.5
HDCP Support Yes (1.4)
NVLink / Crossfire Not supported
Dimensions 17 × 6.9 × 3.9 cm
Slot Size 2‑slot
Recommended PSU 300W
Software ASUS GPU Tweak III (download from ASUS support site)
Warranty Manufacturer warranty

What’s Included
1 × ASUS EVO Silent Nvidia GeForce GT 710 2GB DDR3 Graphics Card
1 × User manual
Retail packaging

✅ Gross Shipping Weight: Approx. 0.5–0.8 kg including packaging

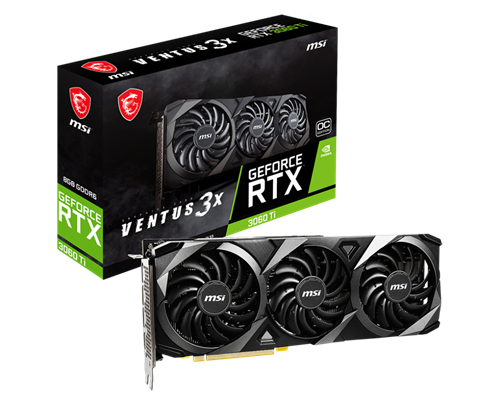

Product Code: RTX3060TIVENTUS3X8GOCLHR
Brand: MSI

🌟 Overview
The MSI GeForce RTX 3060 Ti VENTUS 3X 8G OC LHR delivers high-performance gaming with a minimalist industrial design. Powered by NVIDIA’s Ampere architecture, it features 4864 CUDA cores, 8GB of GDDR6 memory, and a boost clock of 1695MHz. With enhanced Ray Tracing and Tensor Cores, it supports real time ray tracing and DLSS AI rendering for immersive visuals. The triple TORX Fan 3.0 setup, reinforced backplate, and custom PCB ensure efficient cooling and long-term reliability. LHR (Lite Hash Rate) version offers reduced ETH mining capability (~25 MH/s), prioritizing gaming performance.

📦 Key Specifications
Attribute Details
GPU Architecture NVIDIA Ampere
CUDA Cores 4864
Boost Clock 1695 MHz
Memory 8GB GDDR6, 256-bit
Memory Speed 14 Gbps
Interface PCI Express Gen 4.0
Outputs 3 × DisplayPort 1.4a, 1 × HDMI 2.1
Max Resolution 7680 × 4320 @ 60Hz
HDMI 2.1 Support 4K @ 120Hz
Multi-Display Support Up to 4 displays
Cooling System Triple TORX Fan 3.0, Zero Frozr, Thermal Padding
Backplate Reinforced brushed aluminium
PCB Design Custom engineered with hardened circuits
Ray Tracing 2nd Gen RT Cores
AI Features 3rd Gen Tensor Cores, NVIDIA DLSS
ETH Hash Rate ~25 MH/s (LHR version)
Dimensions (L × W × H) ~305 × 120 × 52 mm (estimated)
Power Connector 2 × 8-pin PCIe
Recommended PSU 650W
Warranty 2 Year Limited
Packaging Retail Box
Gross Weight: 1.5 kg
Box Dimensions (L × W × H): 340 × 200 × 90 mm

Product Code: RTX3060TIGAMINGX8GB
Brand: MSI

🌟 Overview
The MSI GeForce RTX 3060 Ti GAMING X 8G LHR delivers exceptional performance for gamers and creators alike. Powered by NVIDIA’s Ampere architecture, it features 4864 CUDA cores, 8GB of GDDR6 memory, and a boost clock of 1770MHz. With support for real-time ray tracing and DLSS AI rendering, it’s built for immersive 1440p and 4K gaming. MSI’s TWIN FROZR 8 cooling system with TORX Fan 4.0 and precision engineered core pipes ensures silent, efficient thermal performance.

📦 Key Specifications
Attribute Details
GPU Architecture NVIDIA Ampere
CUDA Cores 4864
Base Clock ~1410 MHz (estimated)
Boost Clock 1770 MHz
Memory 8GB GDDR6, 256-bit
Memory Clock 14 Gbps
Interface PCI Express Gen 4.0
Outputs 3 × DisplayPort 1.4a, 1 × HDMI 2.1
Max Resolution 7680 × 4320 @ 60Hz
HDMI 2.1 Support 4K @ 120Hz
Multi-Display Support Up to 4 displays
Cooling System TWIN FROZR 8, TORX Fan 4.0, Core Pipe, Airflow Control
Backplate Brushed aluminium
RGB Lighting MSI Mystic Light (assumed)
Ray Tracing 2nd Gen RT Cores
AI Features 3rd Gen Tensor Cores, NVIDIA DLSS
Dimensions (L × W × H) ~278 × 130 × 51 mm (estimated)
Power Connector 2 × 8-pin PCIe
Recommended PSU 650W
Warranty 2 Year Limited
Packaging Retail Box
Gross Weight: 1.4 kg
Box Dimensions (L × W × H): 320 × 200 × 90 mm

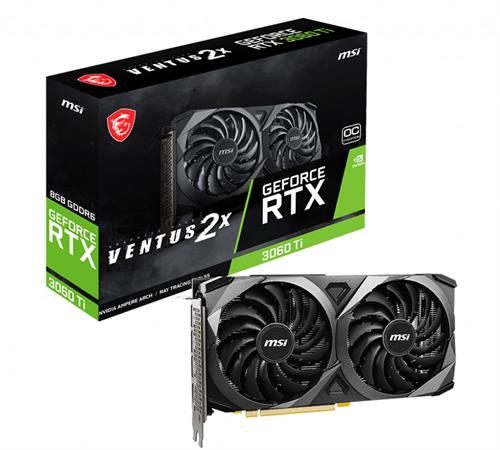

Product Code: RTX3060TIVENTUS2X8GB
Brand: MSI

🌟 Overview
The MSI GeForce RTX 3060 Ti VENTUS 2X 8G delivers powerful performance in a compact dual fan design. Built on NVIDIA’s Ampere architecture, it features 4864 CUDA cores, 8GB of GDDR6 memory, and a boost clock of 1695MHz for smooth 1440p and entry level 4K gaming. With support for real time ray tracing and DLSS AI rendering, this card balances efficiency and visual fidelity. Its industrial styling and hardened PCB make it a reliable fit for any build.

📦 Key Specifications
Attribute Details
GPU Architecture NVIDIA Ampere
CUDA Cores 4864
Base Clock 1410 MHz
Boost Clock 1695 MHz
Memory 8GB GDDR6, 256-bit
Memory Clock 14 Gbps
Interface PCI Express Gen 4.0
Outputs 3 × DisplayPort 1.4a, 1 × HDMI 2.1
Max Resolution 7680 × 4320 @ 60Hz
Multi-Display Support Up to 4 displays
Cooling System Dual TORX FAN 3.0, Core Heat Pipes
Backplate Brushed aluminium
PCB Design Hardened circuits, optimized trace routing
Ray Tracing 2nd Gen RT Cores
AI Features 3rd Gen Tensor Cores, NVIDIA DLSS
Dimensions (L × W × H) ~232 × 124 × 42 mm (estimated)
Power Connector 1 × 8-pin PCIe
Recommended PSU 600W
Warranty 2 Year Limited
Packaging Retail Box
Gross Weight: 1.2 kg
Box Dimensions (L × W × H): ~300 × 180 × 80 mm

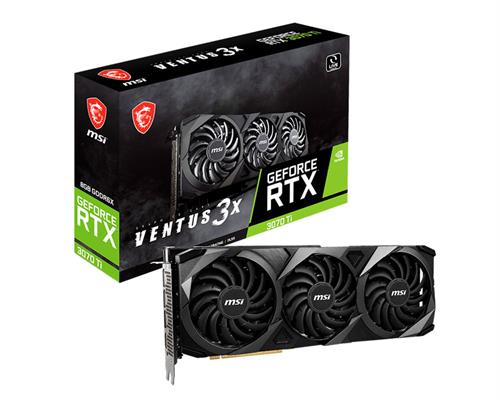

Product Code: RTX3070TIVENTUS3X8GB
Brand: MSI

🌟 Overview
The MSI GeForce RTX 3070 Ti VENTUS 3X 8G OC delivers raw power and refined cooling in a sleek industrial design. Powered by NVIDIA’s Ampere architecture, it features 6144 CUDA cores, 8GB of ultra-fast GDDR6X memory, and a boost clock of 1800MHz for high-performance gaming and creative workloads. With real time ray tracing, DLSS AI rendering, and a triple TORX FAN 3.0 setup, this card is built to handle demanding 4K environments while staying cool and quiet.

📦 Key Specifications
Attribute Details
GPU Architecture NVIDIA Ampere
CUDA Cores 6144
Base Clock 1575 MHz
Boost Clock 1800 MHz
Memory 8GB GDDR6X, 256-bit
Memory Clock 19 Gbps
Interface PCI Express Gen 4.0
Outputs 3 × DisplayPort 1.4a, 1 × HDMI 2.1
Max Resolution 7680 × 4320 @ 60Hz
Multi-Display Support Up to 4 displays
Cooling System Triple TORX FAN 3.0, Core Heat Pipes
Backplate Brushed aluminium
PCB Design Hardened circuits, optimized trace routing
RGB Lighting None (minimalist industrial design)
Ray Tracing 2nd Gen RT Cores
AI Features 3rd Gen Tensor Cores, NVIDIA DLSS
Dimensions (L × W × H) ~305 × 120 × 50 mm (estimated)
Power Connector 2 × 8-pin PCIe
Recommended PSU 750W
Warranty 2 Year Limited
Packaging Retail Box
Gross Weight: 1.5 kg
Box Dimensions (L × W × H): 340 × 200 × 90 mm

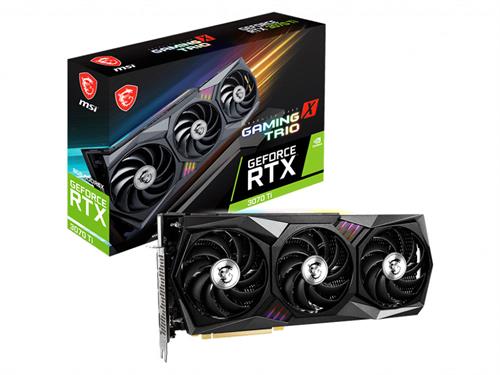

Product Code: RTX3070TIGAMINGXTRIO8G
Brand: MSI

🌟 Overview
The MSI GeForce RTX 3070 Ti GAMING X TRIO 8G delivers elite gaming performance powered by NVIDIA’s Ampere architecture. With 6144 CUDA cores, 8GB of ultra-fast GDDR6X memory, and a boost clock of 1830MHz, it’s built for 4K gaming, real-time ray tracing, and AI-enhanced visuals via DLSS. MSI’s TRI FROZR 2 cooling system, TORX FAN 3.0, and Zero Frozr technology ensure silent, efficient thermal performance, while Mystic Light RGB adds customizable flair to your rig.

📦 Key Specifications
Attribute Details
GPU Architecture NVIDIA Ampere
CUDA Cores 6144
Base Clock 1575 MHz
Boost Clock 1830 MHz
Memory 8GB GDDR6X, 256-bit
Memory Clock 19 Gbps
Interface PCI Express Gen 4.0
Outputs 3 × DisplayPort 1.4a, 1 × HDMI 2.1
Max Resolution 7680 × 4320 @ 60Hz
Multi-Display Support Up to 4 displays
Cooling System MSI TRI FROZR 2, TORX FAN 3.0, Core Heat Pipes
RGB Lighting MSI Mystic Light
Fan Control MSI Zero Frozr
Backplate Brushed aluminium
Ray Tracing 2nd Gen RT Cores
AI Features 3rd Gen Tensor Cores, NVIDIA DLSS
Video Compression H.264, H.265, AV1 (via driver support)
Dimensions (L × W × H) ~323 × 140 × 56 mm (estimated)
Power Connector 2 × 8-pin PCIe
Recommended PSU 750W
Warranty 2 Year Limited
Packaging Retail Box
Gross Weight: 1.6 kg
Box Dimensions (L × W × H): 360 × 200 × 90 mm

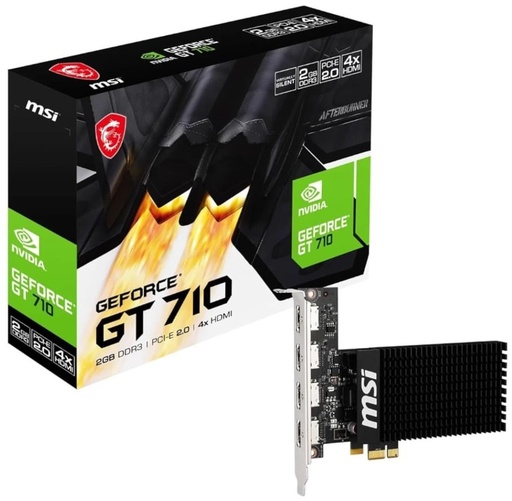

🖥️ Entry-Level Multi-Display Graphics Card for Office & Media

✅ 4x HDMI 1.4 Outputs – Drive up to 4 displays @ 4K24Hz
✅ Passive Cooling – Zero-noise operation
✅ Low-Profile Design – Fits SFF PCs (bracket included)
✅ 954MHz Core Clock – Smooth HD video playback
✅ 19W TDP – No extra power connectors needed

📊 Technical Specifications

Category Specification
Model GT7102GD3H4HDMI
GPU NVIDIA GT 710 (Kepler)
Memory 2GB GDDR3 (64-bit)
Core Clock 954MHz
Memory Clock 1600MHz
Outputs 4x HDMI 1.4a
Max Resolution 4096×2160@24Hz
Power 19W (300W PSU recommended)
Dimensions 146×69×19mm (LP bracket included)

🖥️ Ideal For:

✔ Multi-Monitor Offices – Spreadsheet/email setups
✔ Home Theater PCs – 4K video playback
✔ Digital Signage – Driving multiple displays
✔ Legacy System Upgrades – Replace outdated integrated graphics

📦 Package Includes:

MSI GT 710 2GD3H Graphics Card
Low-Profile Bracket
Quick Installation Guide

"The simplest way to add 4K outputs to any PC – no fuss, no noise!"

⚙️ Pro Tips:

• For 4K30Hz: Use HDMI 1.4 certified cables
• Driver Setup: Install NVIDIA 472.12+ drivers for best compatibility
• Display Config: Use NVIDIA Control Panel for multi-monitor layouts
• HTPC Use: Enable "Adaptive VSync" for smooth video

🔍 Why Choose This Model?

✔ More Outputs – 4x HDMI vs competitors' 1-2 ports
✔ Silent Operation – No fan to fail or collect dust
✔ Space-Saving – Fits mini-ITX cases with LP bracket

(For gaming, consider GTX 1650 or higher)
