Reyee SFP Transceiver RG-NIS-GE-SFP-10KM-SM1310

The Reyee NIS-GE-SFP-10KM-SM1310 is a high-performance Small Form-Factor Pluggable (SFP) transceiver module designed for reliable long-distance data transmission over single-mode fiber (SMF). With a maximum reach of up to 10 kilometers, this module is ideal for applications requiring extended network coverage, such as campus networks, metropolitan area networks (MANs), and long-haul connectivity.

Key Features:

Supports a gigabit speed of 1000 Mbps for seamless data transmission.
Operates at 1310nm wavelength, optimized for long-distance communication.
Offers transmitter power ranging from -9.5 dBm to -3 dBm and receiver sensitivity down to -20 dBm, ensuring excellent signal quality over extended distances.
Easy integration into existing networks with LC connectors and hot-swappable design for minimal downtime.
Operates efficiently in extreme temperatures, from -40°C to +85°C, and within 10% to 90% relative humidity, making it suitable for industrial environments.


Technical Specifications:

Fiber Type: Single-Mode Fiber (SMF)
Core Size: 9/125 μm
Distance Capability: Up to 10 km (32,808 ft)
Connector Type: LC Duplex
Operating Temperature: -40°C to +85°C (-40°F to +185°F)
Digital Diagnostic Monitoring (DDM): Yes

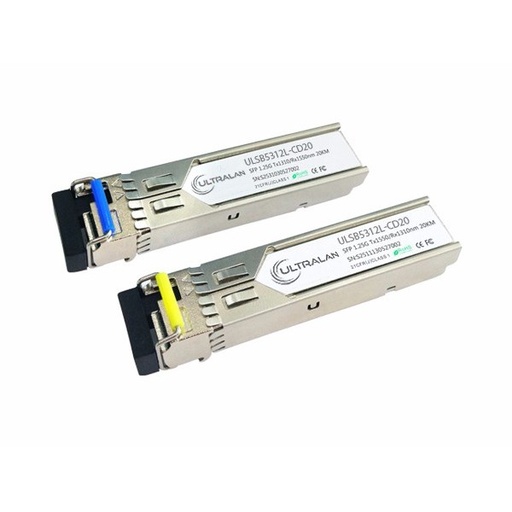

UltraLAN’s BiDi SFP transceivers are designed for high performance and cost efficiency. They support dual data rates of 1.25Gbps/1.0625Gbps and enable transmission distances of up to 20km over single‑mode fiber (SMF).

Product Composition
FP/DFB laser transmitter for stable optical output
PIN photodiode with integrated trans‑impedance preamplifier (TIA)
MCU control unit for diagnostics and performance management
Class I laser safety compliance
Compatible with SFP Multi‑Source Agreement (MSA) and SFF‑8472 standards

Key Features
Supports 1.25Gbps downstream bit rates
Bi‑Directional LC connector (single fiber, dual wavelength)
Hot‑pluggable SFP footprint for easy installation
Suitable for up to 10km SMF connections (rated for 20km maximum)
Low power consumption (<0.8W)
Digital Diagnostic Monitor Interface (DDMI) for real‑time monitoring
Very low EMI and excellent ESD protection

Important Note
These are BiDi (Bi‑Directional) SFP modules, transmitting and receiving on different wavelengths (Tx: 1310nm / Rx: 1510nm). They are only sold in pairs, as each side of the link requires a complementary module.
