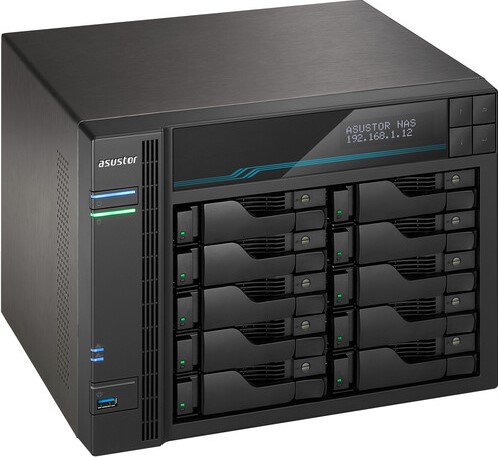

Asustor Lockerstor 10 Pro AS7110T Series Enterprise Network NAS | AS7110T
Asustor Lockerstor 10 Pro AS7110T Series Enterprise Network Attached Storage, 3.4GHz Quad-Core, One 10GbE Port, Three 2.5GbE Ports, Two M.2 Slots for NVMe SSD Cache, 8GB RAM DDR4 (10 Bay Diskless NAS), Retail Box, 1 year warranty
Product Overview
The Asustor Lockerstor 10 Pro AS7110T Series offers enterprise-level network storage with a powerful 3.4GHz quad-core processor, 8GB DDR4 RAM, and extensive connectivity including one 10GbE port and three 2.5GbE ports, alongside dual M.2 slots for NVMe SSD cache, providing high-speed data access and storage flexibility for demanding applications.
Specifications
•Product code: AS7110T
•Description: Asustor Lockerstor 10 Pro AS7110T Series Enterprise Network Attached Storage
•Number of Bays
•10x 2.5"/3.5"
•2x M.2 (2280)
•Inputs/Outputs
•2x USB-A 3.1/3.2 Gen 2
•1x USB-A 3.0 / 3.1/3.2 Gen 1
•3x RJ45 2.5GbE
•1x RJ45 10GbE
•Compatible Drive Interface: SATA III, NVMe
•RAID: RAID 0/1/5/6/JBOD
•CPU: Quad-Core: 3.4 to 4.6 GHz
•Processor: Intel Xeon E-2224
•Total Installed Memory: 8 GB ECC DDR4
•User-Replaceable Memory: 1x 8 GB
•Total Memory Slots: 2x SO-DIMM
•Flash Memory: 8 GB eMMC
•Number of Bays
•10x 2.5"/3.5"
•2x M.2 (2280)
•Inputs/Outputs
•2x USB-A 3.1/3.2 Gen 2
•1x USB-A 3.0 / 3.1/3.2 Gen 1
•3x RJ45 2.5GbE
•1x RJ45 10GbE
•Compatible Drive Interface
•SATA III, NVMe
•Maximum Capacity
•With Drives Installed up to 180 TB
•With Drives Installed up to 396 TB (with Expansion)
•RAID: RAID 0/1/5/6/JBOD
•Wake on LAN: Yes
•Link Aggregation and Failover Support: Yes
•iSCSI LUN: 256
•iSCSI Target: 256
•Max Concurrent Connections: 2048
•Max Folders: 512
•Max Groups: 512
•Max User Accounts: 16,384
•Max Cameras Supported: 100
•Encryption: 256-Bit AES
•Power Source: AC Adapter
•PSU Wattage: 1 x 350 W
•Status Monitoring: LED Indicator
•Cooling: 2x 120 mm Fans
•Noise Level: 22 dBA
•Dimensions: 11.5 x 9.1 x 8.5" / 293 x 230 x 215.5 mm
•Weight: 15.6 lb / 7.1 kg
•Package Weight: 20.905 lb
•Box Dimensions (LxWxH): 15.7 x 14.6 x 13.6"
