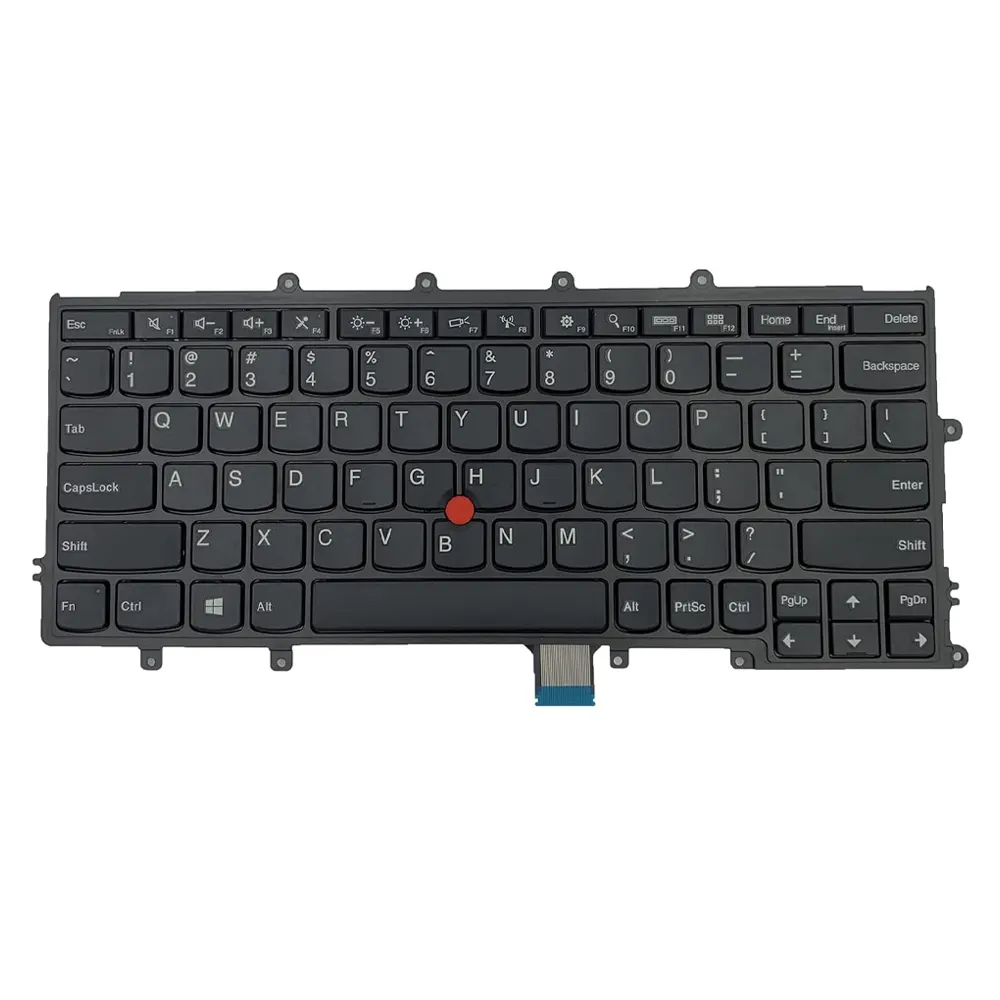

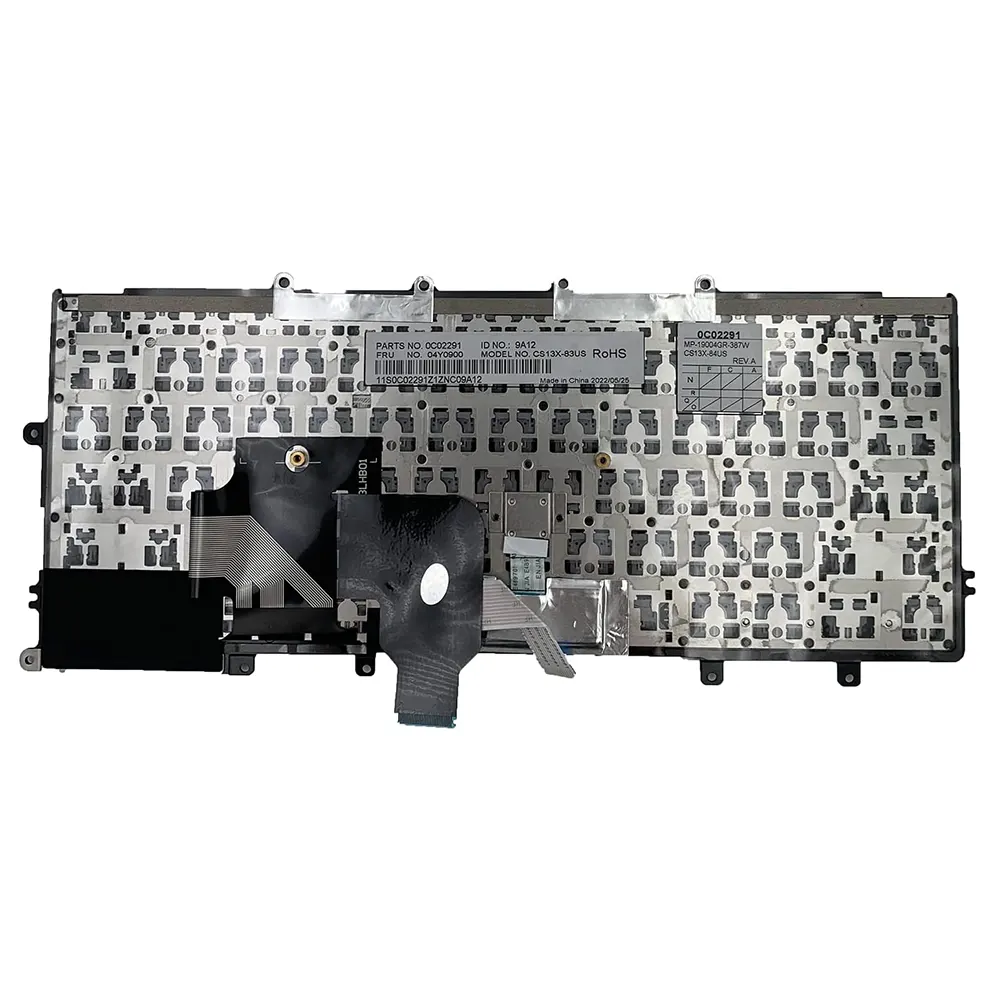

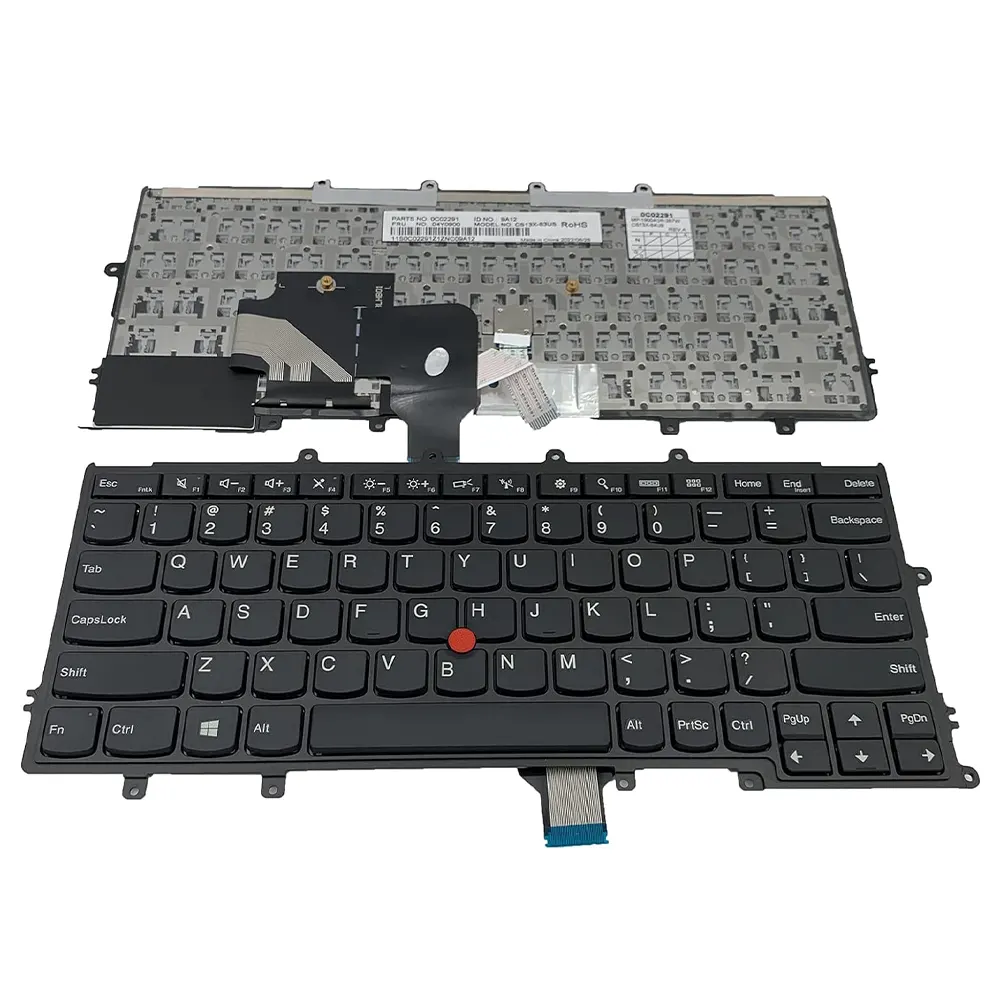

Astrum Replacement Keyboard for Lenovo ThinkPad X240, X250 & X260 – Backlit with Pointer
SKU: KBLEX240-B | Warranty: 12 months
Experience the pinnacle of laptop keyboard replacement with our premium Astrum module. Engineered for 100% OEM compatibility with select Lenovo ThinkPad models, it combines soft-touch scissor-switch keys, UV-printed legends, adjustable white LED backlighting, and an integrated TrackPoint pointer—all in a drop-in design.
Key Benefits
Exact OEM-style fit for ThinkPad X230S, X240, X240i, X240s, X250, X250s, X260, X270
Soft-touch scissor-switch keys for whisper-quiet, tactile feedback
Bright white LED backlighting with adjustable brightness levels
Crisp UV-printed legends resist fading and maintain readability
Integrated spill-resistant membrane protects internal components
Built from eco-friendly, factory-tested materials
No-solder, drop-in module design for effortless installation
Backed by a 12-month Astrum warranty for peace of mind
Technical Specifications
Feature Details
Layout US QWERTY (full-size with function row)
Key Mechanism Scissor-switch membrane
Backlight Type Adjustable white LED backlighting
Keycap Finish UV-printed, matte
Spill Protection Integrated membrane guard
Pointer Integrated red TrackPoint nub
Module Type Keyboard assembly only (no surrounding bezel)
Connector Flat ribbon cable with ZIF lock
Colour Black
SKU KBLEX240-B
Warranty 12 months
Compatible Part Numbers
01AV519
01AV530
04X0196
04X0207
04X0213
04Y0920
04Y093
Compatible Models
Lenovo ThinkPad X230S
Lenovo ThinkPad X240, X240i, X240s
Lenovo ThinkPad X250, X250s
Lenovo ThinkPad X260
Lenovo ThinkPad X270
Installation & Care Tips
Power off the laptop, disconnect all cables, and remove the battery if accessible.
Gently pry up the keyboard bezel or release retention clips to expose mounting screws.
Unscrew and lift out the original keyboard assembly, disconnecting its ribbon cable.
Insert the Astrum ribbon cable into the ZIF connector and secure the latch.
Align and seat the new keyboard module, reinsert screws or clips, then snap the bezel back into place.
Reinstall the battery, reconnect power, and boot to verify every key, backlight, and TrackPoint function.
Clean with a dry microfiber cloth; avoid liquids and harsh chemicals.
What’s Included
1 × Astrum KBLEX240-B Replacement Keyboard (Black US, Backlit with Pointer)
1 × Quick-Start Installation Guide
