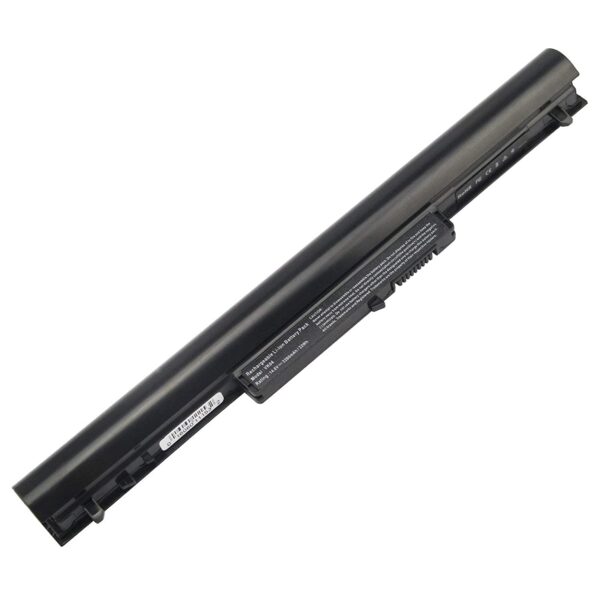

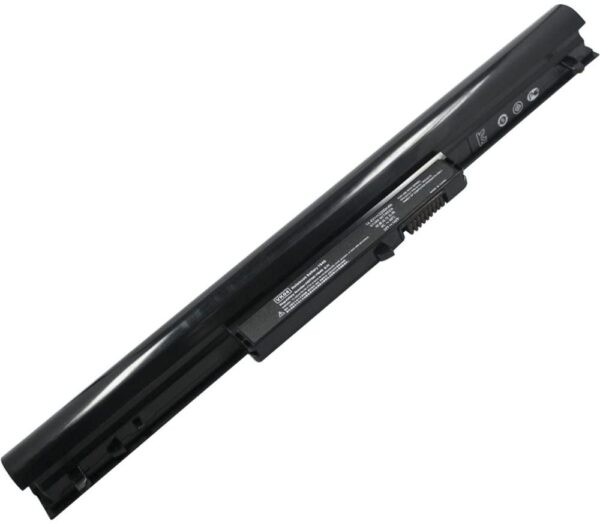

🔋 Astrum Battery for HP Pavilion 14 / 15 M4 – 14.4 V 2200 mAh (4-Cell Li-Ion)

SKU: ABT-HPVK04 | Warranty: 12 months | Condition: Brand New

🌟 Key Benefits
All-day power: 2200 mAh capacity at 14.4 V keeps your notebook running longer
OEM-perfect fit: Designed specifically for HP Pavilion 14, 15 M4 and TouchSmart 14 series
Integrated safety: Overcharge, over-discharge, and short-circuit protection
Durable cycle life: Retains over 80 % capacity after 300+ charge/discharge cycles
Tool-free swap: Slide-in design for quick, hassle-free replacement
Peace of mind: Backed by Astrum’s 12-month manufacturer warranty

📋 Technical Specifications
Feature Details
Battery Type Lithium-Ion (Li-Ion)
Voltage 14.4 V
Capacity 2200 mAh
Energy 31.68 Wh
Cell Count 4-Cell
SKU ABT-HPVK04
Warranty 12 months
Certifications CE, RoHS
Protections Overcharge, Over-discharge, Short-circuit
Operating Temp. 0 °C to 60 °C (32 °F to 140 °F)
Storage Temp. –20 °C to 45 °C (–4 °F to 113 °F)

🔑 Compatible Part Numbers
694864-851
BAT-HP15Z
HSTNN-DB4D, HSTNN-YB4D, HSTNN-YB4M
ABT-HPVK04
TPN-Q113, TPN-Q114, TPN-Q115, TPN-Q116
VK04

💻 Compatible Models
Pavilion 14, 14-B032TU, 14-B026TX, 14-B032TX, 14-B033TU, 14-B023TX
14-B005TX, 14-B031TX, 14-B006TX, 14-B004TX, 14-B025AU, 14-B024AU
14-B070TX, 14-B052TU, 14-B071TX, 14-b016AU, 14-B025TX
Pavilion 15 series, 15-e026TX (E4X13PA), 15-B003TX (C7E10PA), 15-B004TX (C7E11PA)
15-B101TX (C9L95PA), 15-b135TX
Pavilion M4, M4-1010TX (D9H32PA), M4-1008TX (D9H30PA), M4-1009TX (D9H31PA)
TouchSmart 14-B137TX

🛠 Installation & Care Tips
Power off your notebook and disconnect the AC adapter.
Unlock and remove the existing battery.
Align the Astrum ABT-HPVK04 contacts with the bay and slide in until it clicks.
Fully charge before first use to calibrate the internal gauge.
Avoid extreme temperatures; operate between 0 °C and 60 °C.
Run a full discharge/charge cycle monthly to maintain capacity accuracy.
For long-term storage, leave at ~40 % charge in a cool, dry place.

📦 What’s Included
1 × Astrum ABT-HPVK04 14.4 V / 2200 mAh (4-Cell) Battery
1 × Quick-Start Guide with Safety & Installation Instructions
