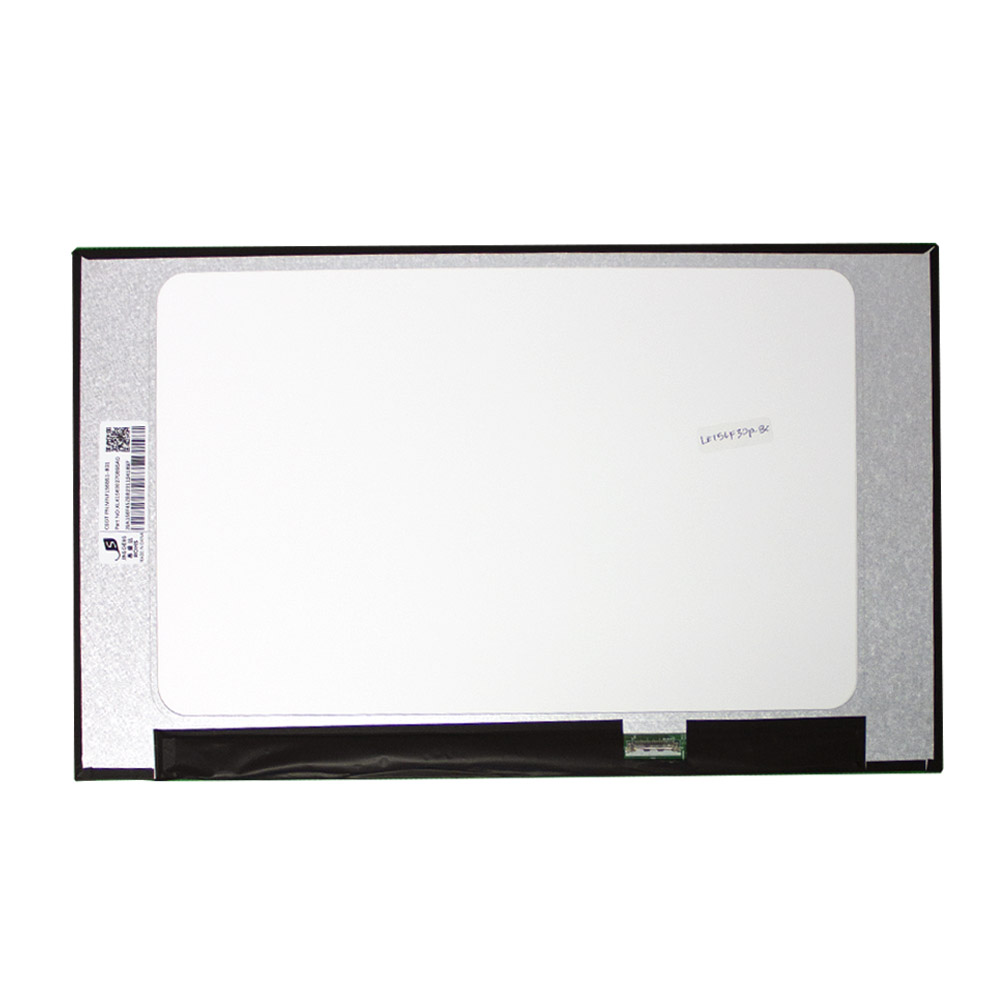

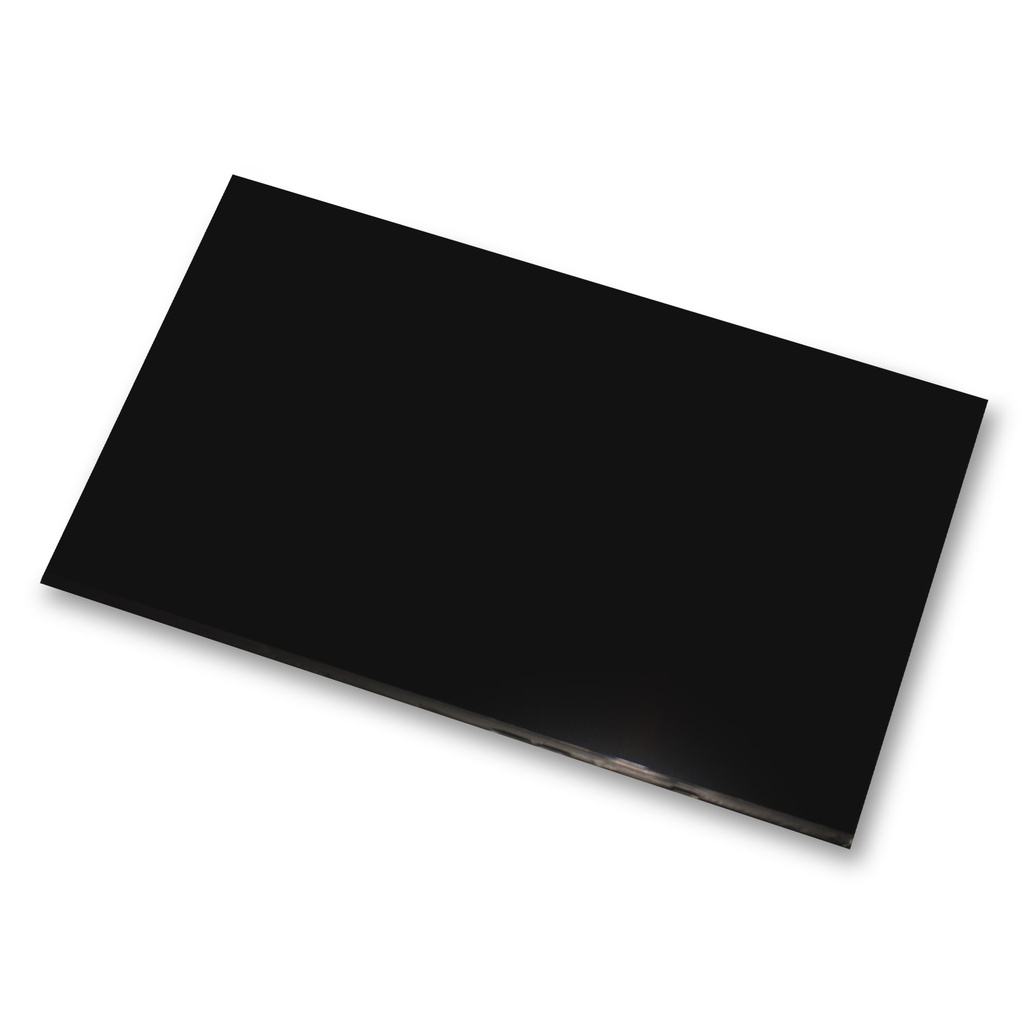

Astrum 15.6″ Full HD IPS Display – 1080P, 30-Pin, Bend Connector, Matte Finish
Part No: LE156F30P-BC | 12-Month Warranty | IPS Panel | Wide Viewing Angles | Anti-Glare
Professional-Grade Visuals with IPS Clarity – Bend Connector for Easy Installation
Experience stunning color accuracy and wide-angle viewing with the Astrum 15.6″ Full HD IPS Display. Featuring 1920x1080 resolution, an IPS panel, and a matte anti-glare finish, this screen delivers vibrant, glare-free visuals for creative work, gaming, and productivity. The bend connector design ensures stress-free cable management during installation.
🔥 Key Features
✔ 1920x1080 Full HD IPS – Vivid colors and 178° wide viewing angles for consistent clarity
✔ Matte Anti-Glare Finish – Eliminates reflections for comfortable viewing in any lighting

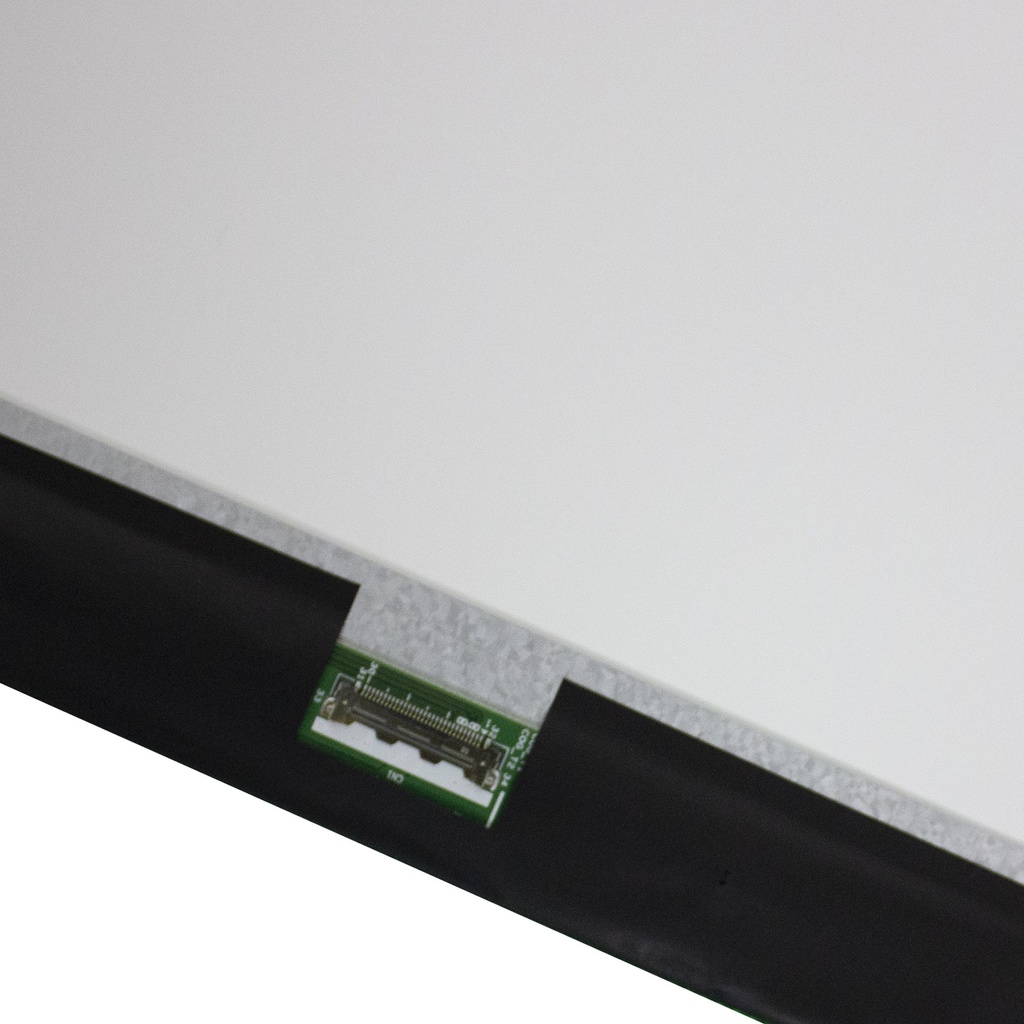

✔ Bend Connector Design – Flexible cable routing reduces strain during installation
✔ 30-Pin Connector – Compatible with MNF156BS1-B01 and similar models
✔ No Bracket Included – Ultra-slim profile; reuse existing bracket if needed
✔ DIY-Friendly – Plug-and-play installation with detailed guidance
📊 Technical Specifications
Feature Specification
Screen Size 15.6 inches
Resolution 1920 × 1080 (FHD)
Panel Technology IPS (In-Plane Switching)
Connector 30-pin with bend design
Surface Matte (anti-glare)
Viewing Angles 178° horizontal/vertical
Compatibility MNF156BS1-B01 and similar
✅ Compatible Part Numbers
MNF156BS1-B01
LE156F30P-BC
Note: Verify your laptop’s existing screen part number before purchase. This model features a bend connector and does NOT include a bracket.
🛠️ Installation Tips
Power Off – Disconnect the laptop and remove the battery.
Remove Bezel – Gently pry off the plastic frame around the old screen.
Disconnect Cable – Detach the old display’s 30-pin connector.
Install New Screen – Connect the bend connector for stress-free cable management.
Secure Screen – Reuse the original bracket or mount directly if applicable.
Test – Power on to verify functionality before reassembly.
📦 What’s Included
1 × Astrum 15.6″ FHD IPS Screen (30-pin with bend connector)
1 × Installation Guide
"True-to-life color, effortless installation—backed by a 12-month warranty!"
